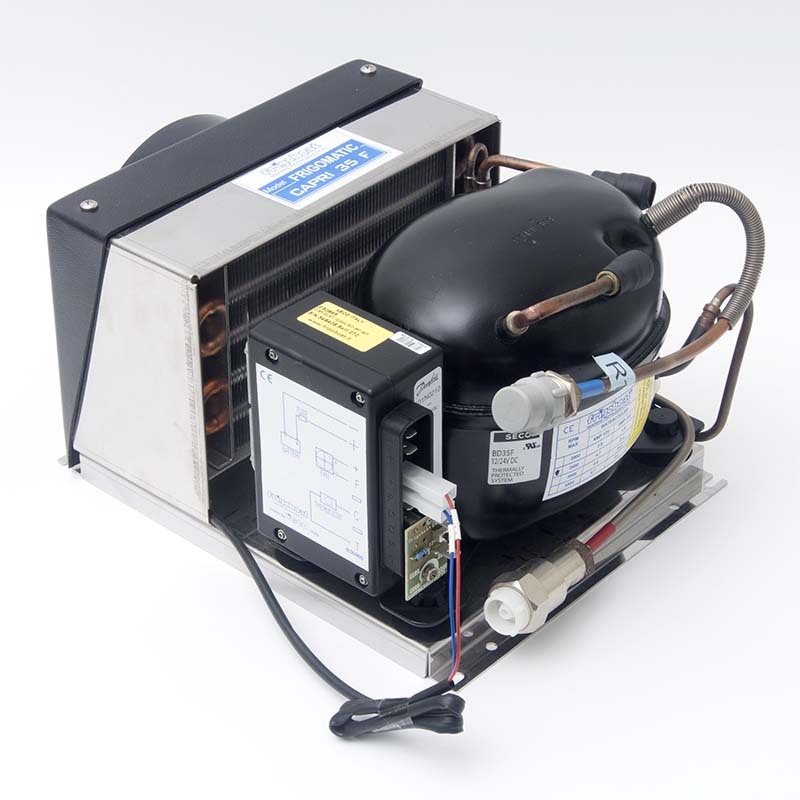

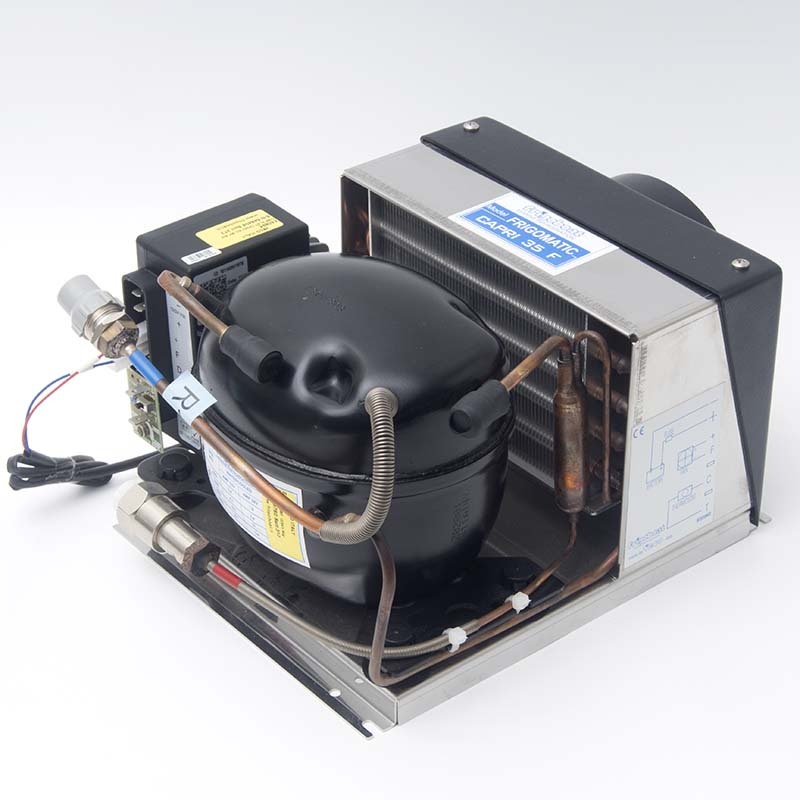

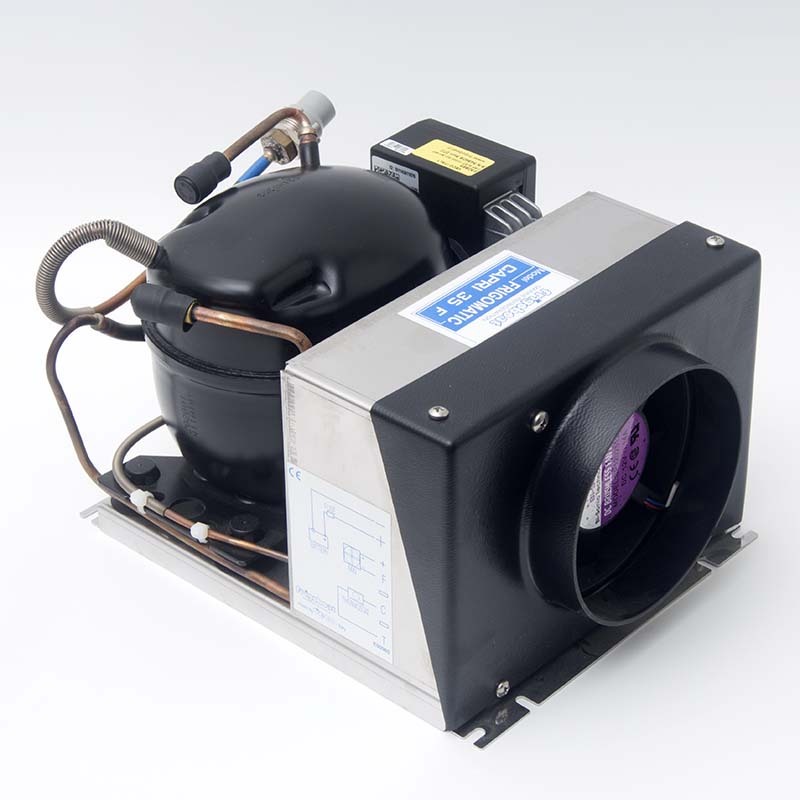

Frigomatic Capri 50F 12/24V 90Gr Air Cooled Condenser Set

Veco air cooled refrigeration system uses Danfoss BD50 12 volt / 24 volt DC compressor. Shrouded condenser for enhanced air flow and cooling capacity.

  • Availability:In Stock
  • SKU: VEC.E52120
  • Manufacturer: Veco
  • Shipping Weight: 9.50kg
$1,169.00


Related Products

Veco air cooled refrigeration system uses Danfoss BD50 12 volt / 24 volt DC compressor. Shrouded condenser for enhanced air flow and cooling capacity.

  • Electrical consumption 25% lower compared to other compressor concepts.
  • Precharged system equipped with Frigoboat self sealing couplings.
  • Configuration with evaporators for fridges up to 340 litres and freezers up to 80 litres.
  • Automatic battery protection.
  • Horizontal configuration with front air discharge

The cooling power and subsequent power consumption of the unit is relative to the compressor RPM. The RPM can be adjusted on the speed board supplied with the unit.

RPM Capacity (Btu/h) Consumption @ 12V (A)
2000 326 4.3
2500 410 5.4
3000 490 6.5
3500 565 7.5









To ensure correct start and operating conditions, the following cable dimensions must be observed:

Cross Section AWG Max Length (12V) Max Length (24V)
2.5 mm2 12 2.5 m 5 m
4 mm2 12 4 m 8 m
6 mm2 10 6 m 12 m
10 mm2 8 10 m 20 m











(VEC.E52120)
