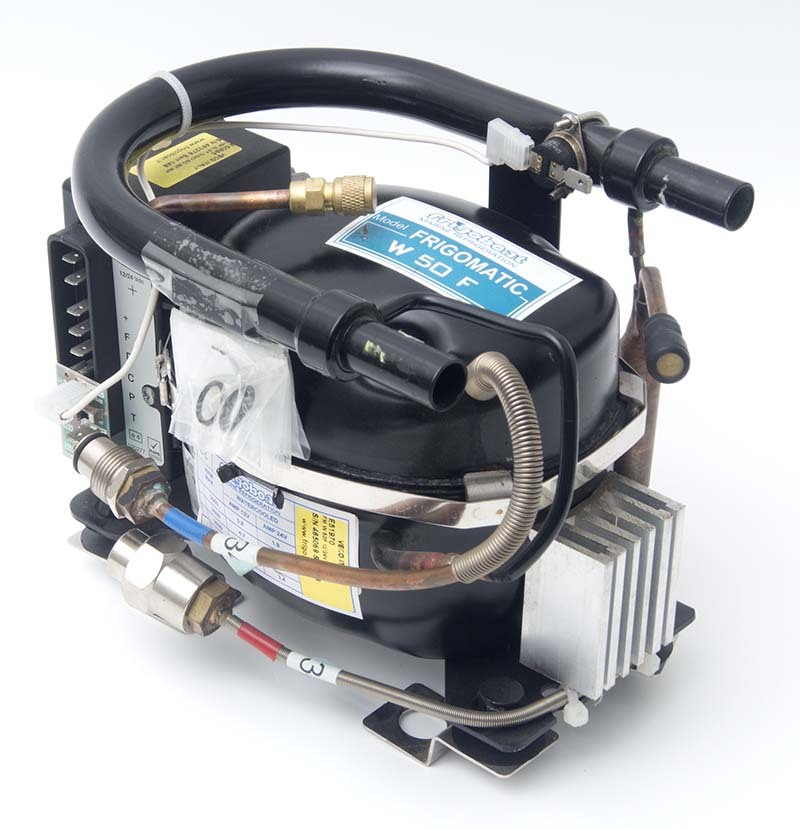

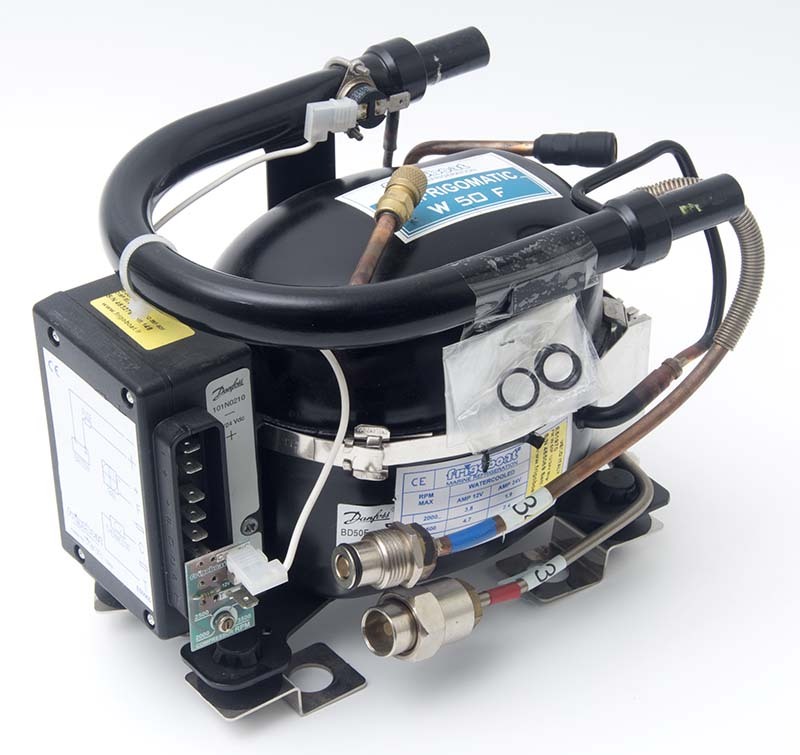

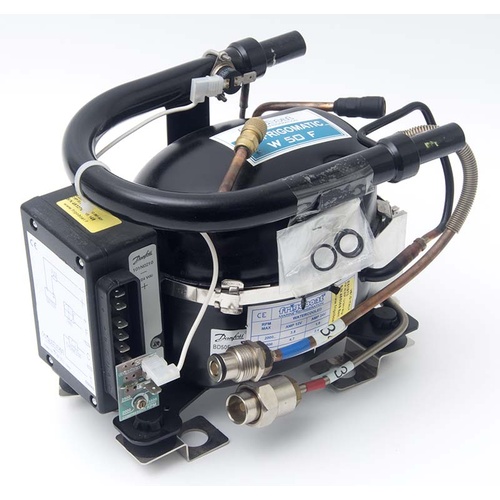

Frigomatic W 50F 12/24V 80Gr Water Cooled Condenser Set

Veco water cooled refrigeration system uses Danfoss BD50 12 volt / 24 volt DC compressor with water cooled condenser. Multiple units can share a single water pump.

  • Availability:In Stock
  • SKU: VEC.E51970
  • Manufacturer: Veco
  • Shipping Weight: 6.60kg
$1,222.00


Related Products

Veco water cooled refrigeration system uses Danfoss BD50 12 volt / 24 volt DC compressor with water cooled condenser. Multiple units can share a single water pump.

  • Protected against lack of cooling water.
  • Danfoss compressor of the latest generation with electrical consumption 25% lower compared to other compressor concepts.
  • Precharged system with Frigoboat self sealing couplings.
  • Configurations with evaporators for fridges up to 380 litres and freezers up to 100 litres.
  • Automatic battery protection.

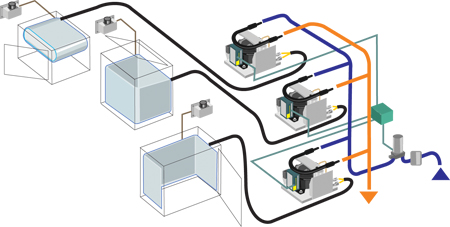

  • Very useful in multiple configurations where 2 or more systems are cooling independent fridges and freezers.
  • Up to three units can run on the same cooling pump.

Technical Specifications

Compressor Speed (RPM) Refrigerating Capacity (Btu/h) Current Consumption (A) Refrigerator max. volume (L) Freezer max. volume (L)
2000 369 4 180 NA
2500 472 4.7 250 NA
3000 560 5.7 340 80
3500 650 6.8 380 100











Power Cable Sizing

To ensure correct start and operating conditions, the following cable dimensions must be observed:

Cross Section AWG Max Length (12V) Max Length (24V)
2.5 mm2 12 2.5 m 5 m
4 mm2 12 4 m 8 m
mm2 10 6 m 12 m
10 mm2 8 10 m 20 m

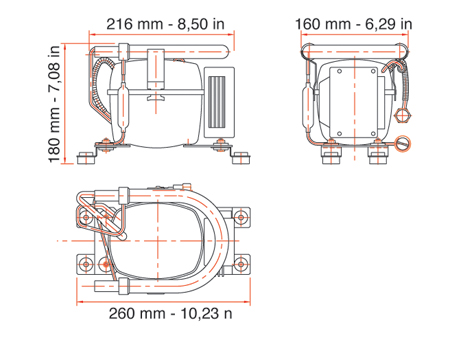

W 50F Dimensions

(VEC.E51970)
