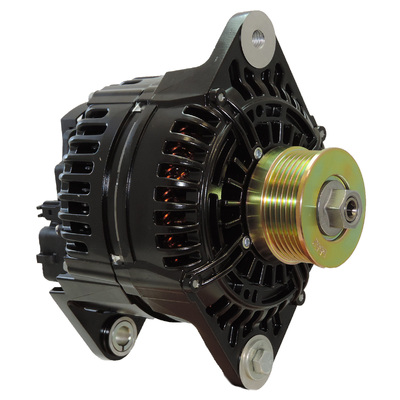

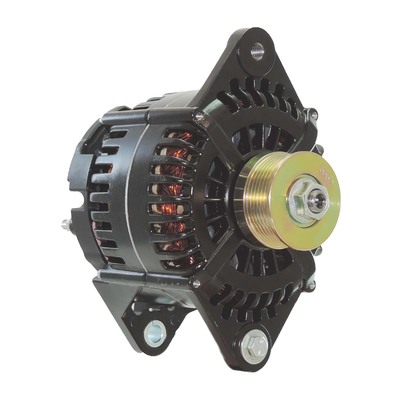

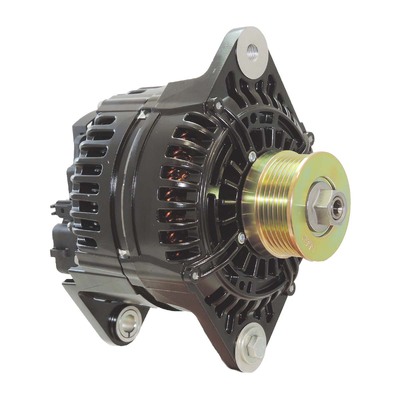

Balmar 97 Series Alternators

Built expressly for the demands of large, multi-battery house banks, inverter loads and other above-average electrical demands, extra-large case 97-Series alternators are scaled to deliver impressive output at all engine RPMs. 97-Series alternators are rated at 160 amps at 12 volt, or 110 to 140 amps at 24 volts. Brushless 97-Series models meet US Coast Guard Title 33, CE, ISO J1171 and SAE 8846 safety standards.

  • Isolated Ground Terminal
  • Bidirectional cooling fan.
  • Corrosion-resistant powdercoat finish.
  • 6,500 RPM maximum rotation speed.
  • J180 Mount Brushless Design
  • Maximum RPM: 6,500.
  • ShWt. 18 KG
3 Products Found

Download Datasheet

Balmar’s 97-Series, extra-large case alternators deliver the size and charging output required to support battery banks of up to 750 amp hours at 12 volts or 500 amp hours at 24 volts. These 12-volt and 24-volt alternators are engineered for use with external multistage voltage regulation, making it possible to tailor charging voltage to maximize safety and efficiency when replenishing a wide variety of battery types.

A robust J180 saddle-style dual foot mounting configuration is ideal as a replacement for standard J180 mount alternators or for use as a second alternator on custom J180 saddle mount brackets. Isolated grounding termination provides sure continuity to system ground. High amperage diodes and extra-large sealed bearings ensure dependability and long alternator life.

Built expressly for the demands of large, multi-battery house banks, inverter loads and other above-average electrical demands, extra-large case 97-Series alternators are scaled to deliver impressive output at all engine RPMs. 97-Series alternators are rated at 160 amps at 12 volt, or 110 to 140 amps at 24 volts. Brushless 97-Series models meet US Coast Guard Title 33, CE, ISO J1171 and SAE 8846 safety standards.
