The galvanic isolator prevents electrolytic corrosion. It blocks low voltage DC currents that enter your boat via the shore power earth wire. These currents can cause corrosion to the boat’s underwater metals, like the hull, propeller, shaft and so on.

The galvanic isolator consists internally of two diodes which are connected in an anti-parallel fashion. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 VDC.

The isolator is installed directly behind your boat's 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.

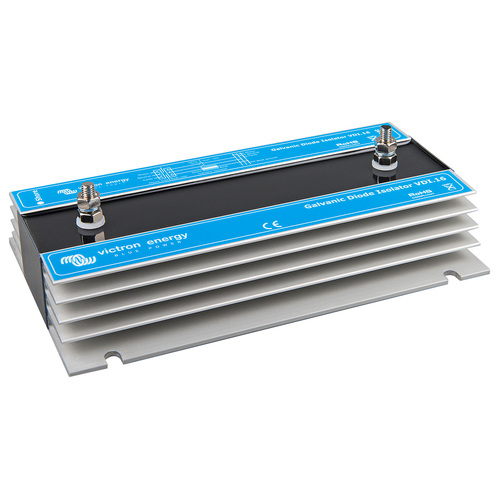

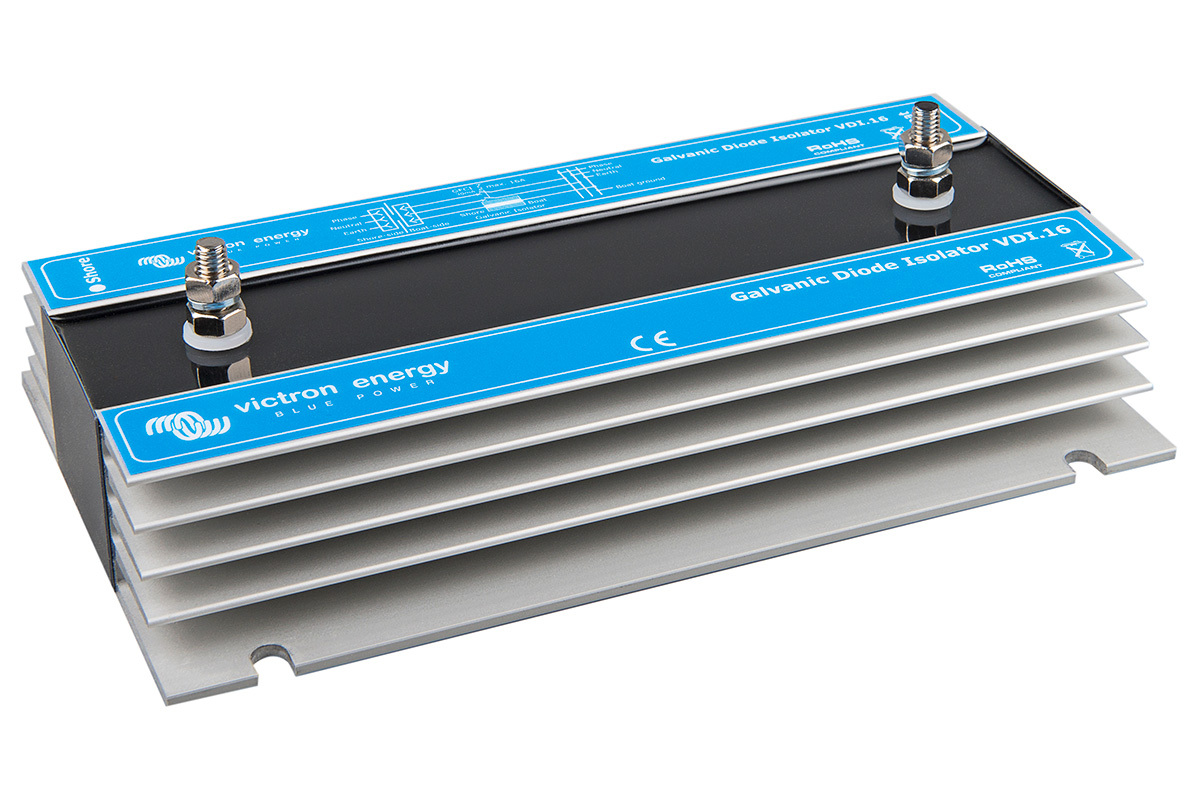

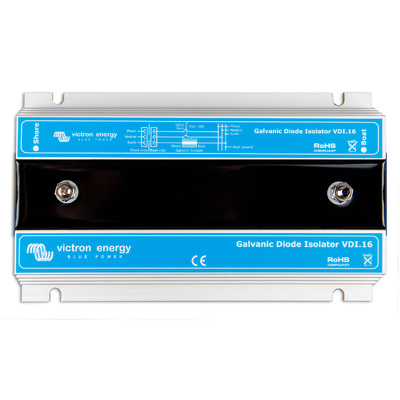

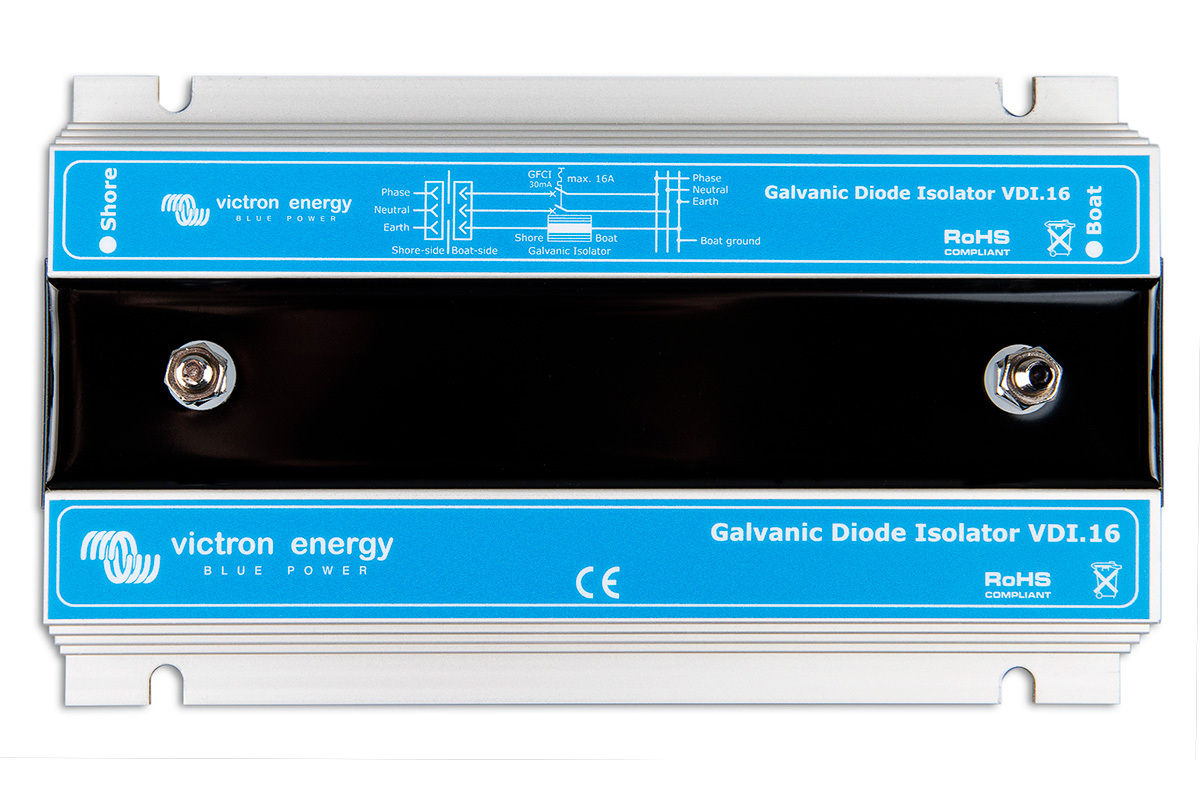

VDI-16 Galvanic Isolator Specifications

Galvanic Isolator: Waterproof (potted)
Maximum Current: 16A
Peak Current (20ms): 1600A
Connection: M6
Heat Sink Material: Anodized aluminium
Protection Rating: IP67
Weight: 1kg
Dimensions (hxwxd): 60 x 120 x 200 mm



Protect your boat from corrosion with a Galvanic Isolator Victron Energy

SKU VIC.GDI000016000
Model # GDI000016000
UPC/EAN 8719076022374
Brand Victron Energy
Shipping Weight 1.6000kg
Shipping Width 0.203m
Shipping Height 0.117m
Shipping Length 0.065m
Shipping Cubic 0.015600000m3

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
