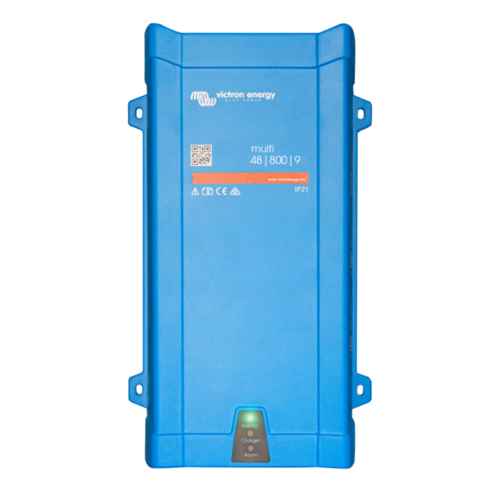

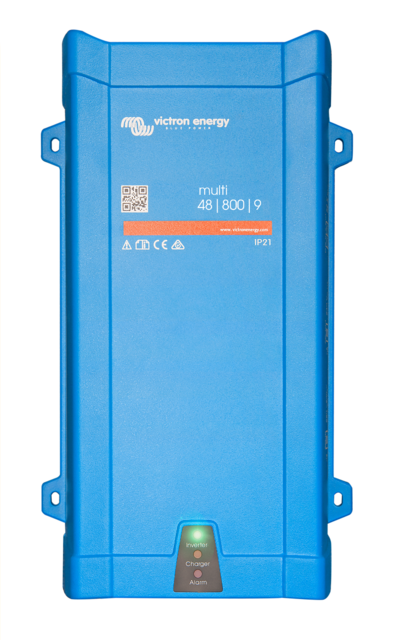

The MultiPlus is an inverter and charger combination supporting easy installation by way of the Victron MK3-USB interface cable, including the following features:

• True sine wave inverter
• Adaptive charging
• Hybrid PowerAssist
• PowerControl
• Multiple system integration

The PowerAssist feature will enable the unit to supplement the alternative source. The unit will compensate for supply from the battery at times of insufficient power and when no longer required, the excess power will be used for charging. It is therefore no longer necessary to size a generator on the maximum peak load. Use the most efficient size generator instead.

Should there be a grid failure the UPS capability of the inverter is automatically activated. With some units having the ability to enable 6 Multis operating in parallel there is potentially close to uninterrupted and unlimited power.

If three phase power is required, then multiple units can be connected in parallel and configured with the combinations delivering up to 75KW/90 kVA inverter and more than 2000 Amps charging capacity.

Configuring parallel and three-phase systems is made simple with the VE.Configure software tool which allows the installer to put components together without any hardware changes or dipswitches, using standard products.

Monitoring and configuring functionality offers seamless control, both on-site and off-site.

For higher power applications you may consider the larger MultiPlus or the Quattro range both of which bring the possibility of unlimited power with the Multiple system integration functionality.

For detailed information on this product, click on the links to the right.

View additional information on system designs and upgrades.

Boat and Yacht Electrical System Upgrade

Caravan Electrical System Design

The basics of using VE Configure
