See what’s coming.

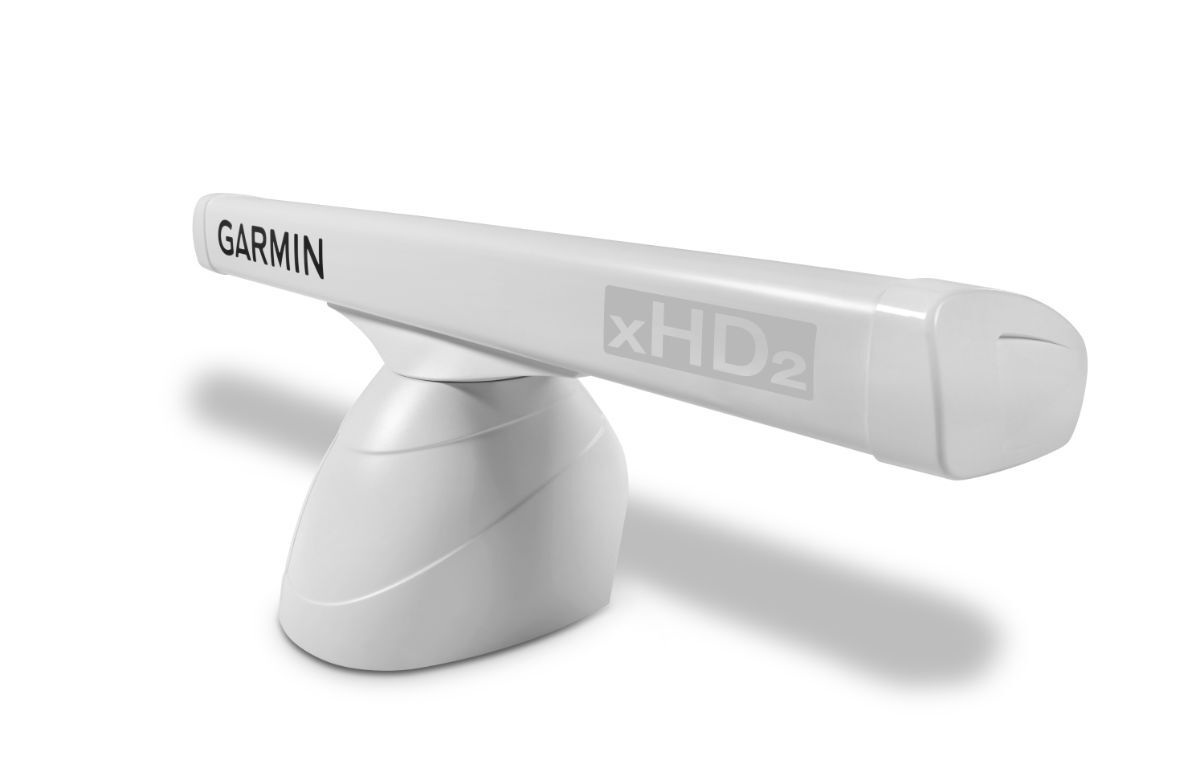

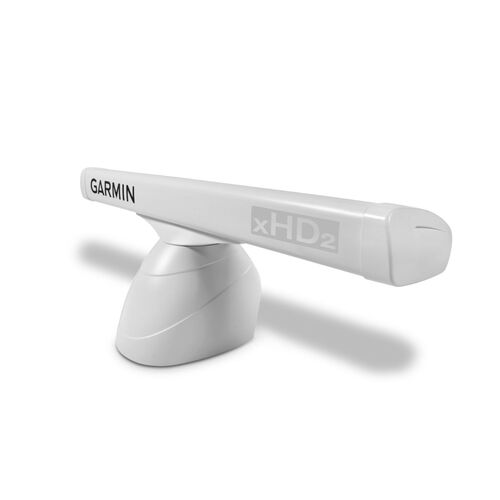

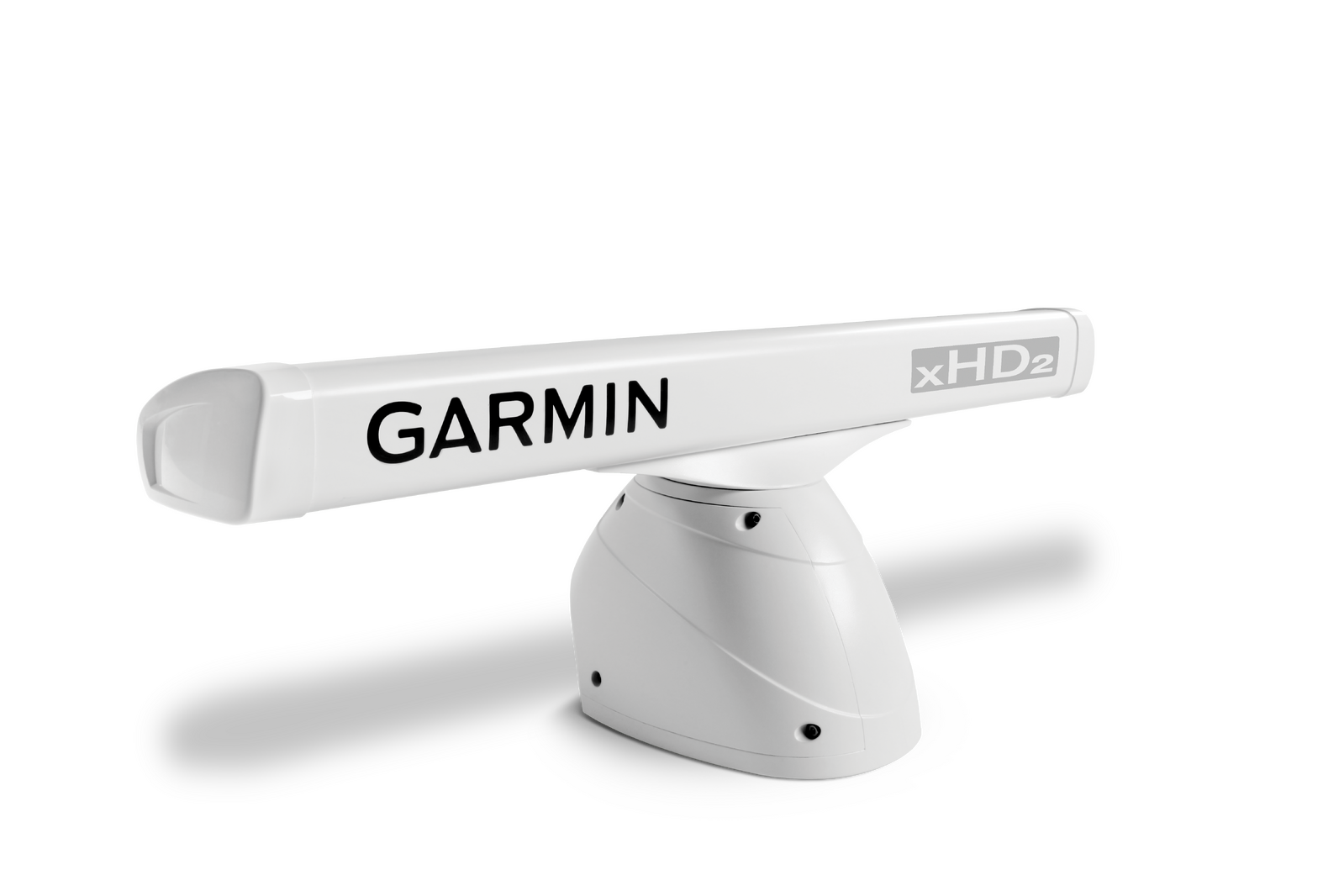

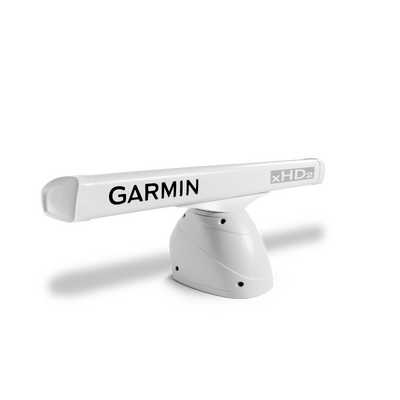

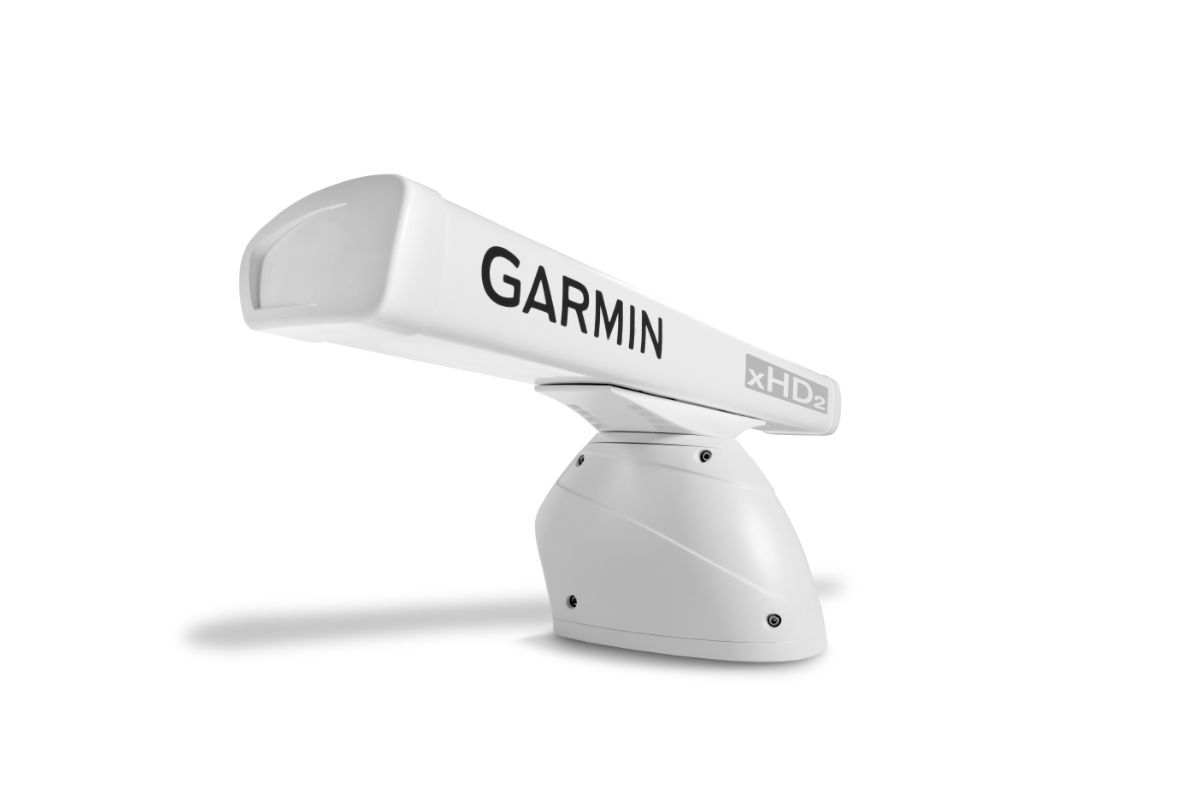

This open-array radar delivers 4-kW transmit power and clear echo definition at all ranges. It has rotation speeds of 24 and 48 RPM with a max range scale of 72 nautical miles (133 km).
The 1.8-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out targets at a distance, while 8-bit true colour imagery enhances target separation.
This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.
See incredible detail on the water.
Increase the duration of the transmit pulse, which helps maximise the energy on targets. This provides larger target size on the chart plotter.
AUTO BIRD GAIN
Locate flocks of birds at the water’s surface where baitfish are also likely to be found.
A historical “trail” is left on the screen to help you quickly and easily identify moving targets and potential collision threats.
A single radar antenna is capable of providing split-screen images on your chart plotter for both close and long-range.
Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.
DYNAMIC AUTO GAIN
Gain automatically adjusts levels to optimum settings for harbours, nearshore and offshore in open waters.
DYNAMIC SEA FILTER
Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.
Overlay radar images onto your chart plotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.
MARPA TARGET TRACKING
Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions.
Set the safety zone, and receive an alarm when an object enters the zone.
VRM AND EBL
Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.
DUAL RANGE WITH OVERLAY
A single radar antenna is capable of providing split-screen images on your chart plotter side by side, with independent range settings and controls for both close and long-range. One or both ranges can also be viewed as a chart overlay.
Physical & Performance
|Max Range||72 nm|
4' array: 52.25" x 5" x 6.75" (132.7 x 12.7 x 17.1 cm)
Pedestal: 20.5" x 12.75" x 12.5" (52 x 32.4 x 31.8 cm)
|Transition Power||12 kW|
|Power Consumption||90 W|
|Beam Width||1.8° horizontal, 23° vertical|
|Power Input||10-32 V DC|
|Antenna Length||48" (121.92 cm)|
|Rotation speed (RPM)||24 and 48 rpm|
|Minimum range||20 meters|
array: 12.2 lb (5.5 kg)
pedestal: 47.1 lb (21.4 kg)
|Dual Range Support||Yes|
|Dynamic Auto Gain||Dynamic|
|Radar Overlay Support||Yes|
|Max Wind Load||80kt|
|Programmable Antenna Parking||Yes|
|MARPA Target Track||Yes (Requires Heading Sensor, Sold Separately)|
|Target Size||Pulse Expansion|
