At a Glance

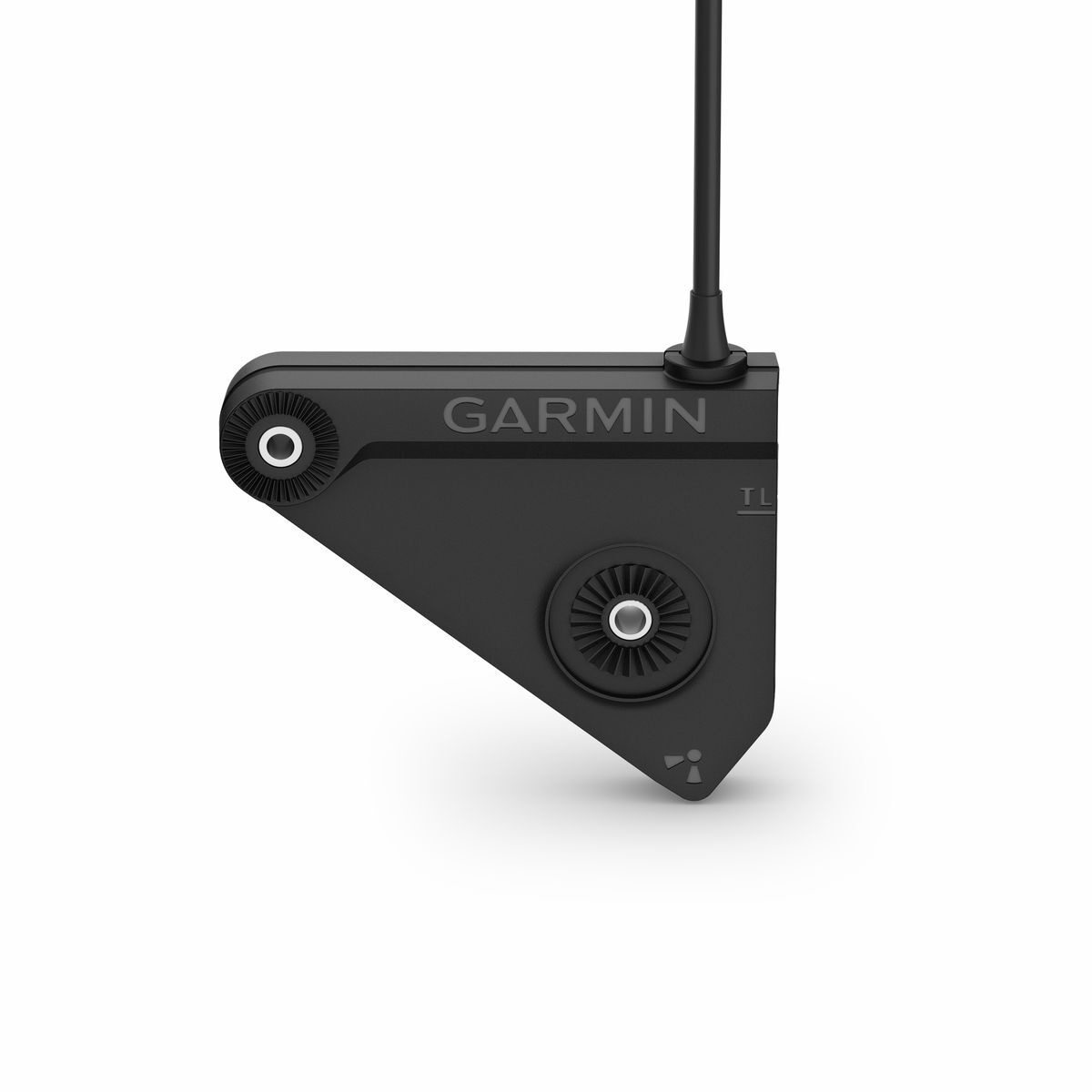

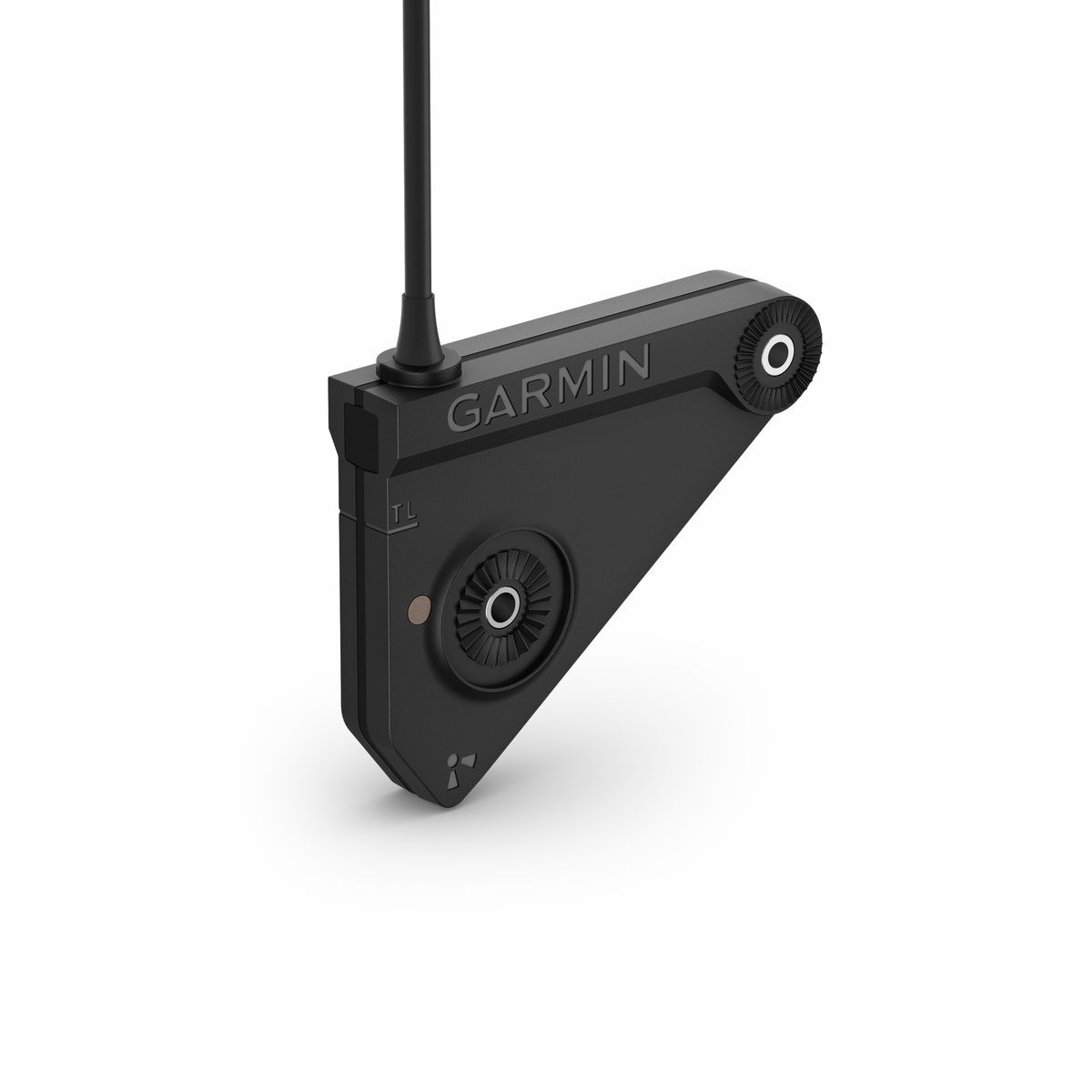

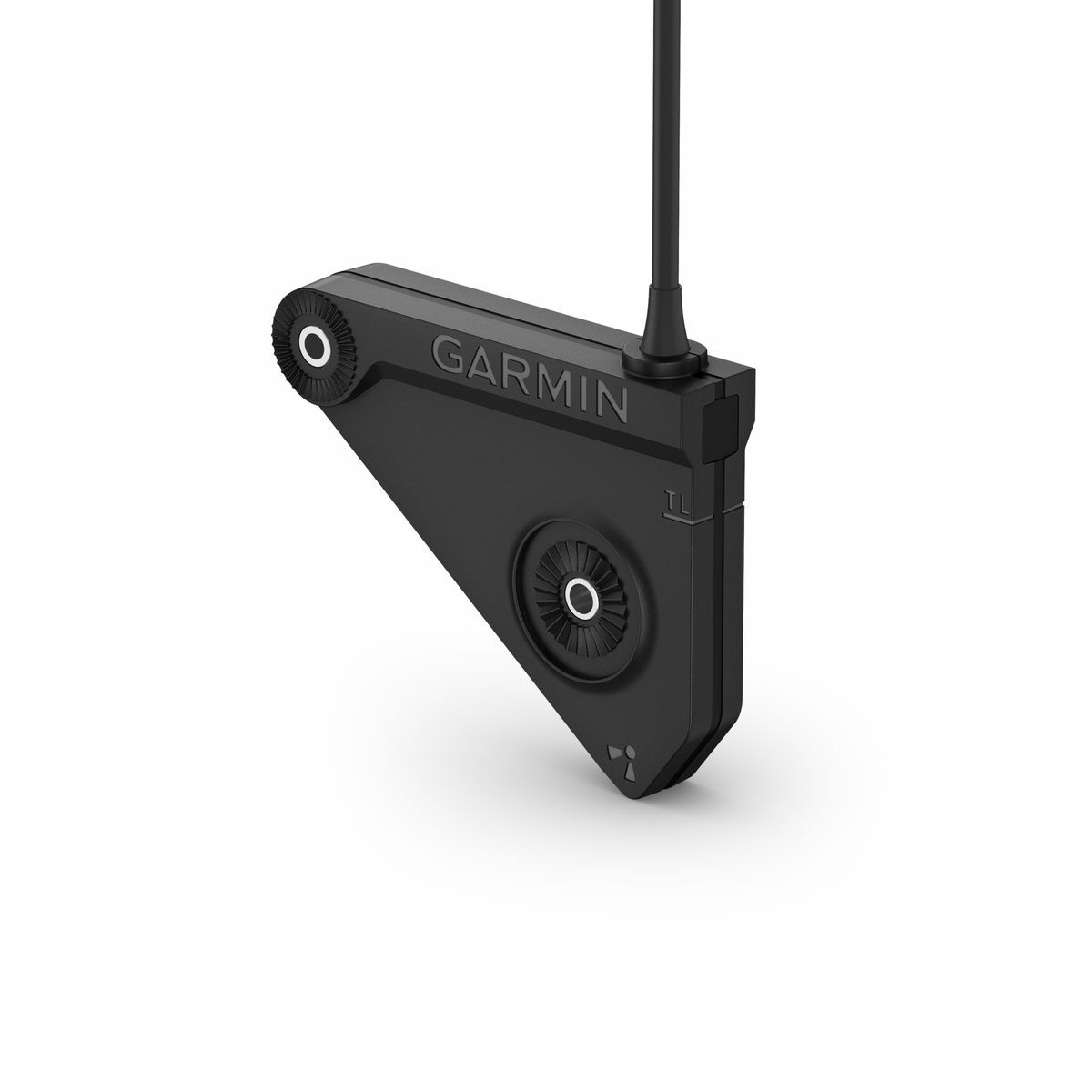

The 12-pin Panoptix LiveScope LVS12 transducer provides an economical option for adding real-time scanning sonar to your GPSMAP® 8400/8600xsv series chartplotter/sonar combo without needing a black box system. The transducer includes trolling motor and transom mounts.

Easily Switch Between Views

An easy menu-driven view change allows you to switch from 1 view to the other, with no manual transducer adjustment needed. You can also have both views on your display, side by side. Forward view shows a 30-degree Panoptix LiveScope view of structure and fish swimming in real time up to 200’ away from your boat. Use it to cast right at fish you see on screen. Down view shows a 30-degree Panoptix LiveScope view of structure and fish swimming in real time up to 200’ deep below your boat. Use it for vertical fishing and jigging. You can also use the LVS12 transducer as a supplemental source for traditional and ClearVü sonar.



30-degree forward view

30-degree down view



Built-in AHRS

If it gets a little rough out on the water, the built-in AHRS will keep your on-screen sonar views stable.

Features

Cable length 20 ft.
Power 500 W
Frequency 530 - 1,100 kHz
Maximum depth Down and Forward: 200’ (61.0 m)
Number of pins 12-pin
Beamwidth 30°x20° Forward and 30°x20° Down
productSpecMisc
  • Field of view:
    • Front to back: Two 30-degree sectors
    • Side-to-side: 20 degrees
Depth/speed/temperature Depth and Temperature
SKU GAR.010-02143-00
Model # 010-02143-00
UPC/EAN 0753759218317
Brand Garmin
Shipping Weight 0.9800kg
