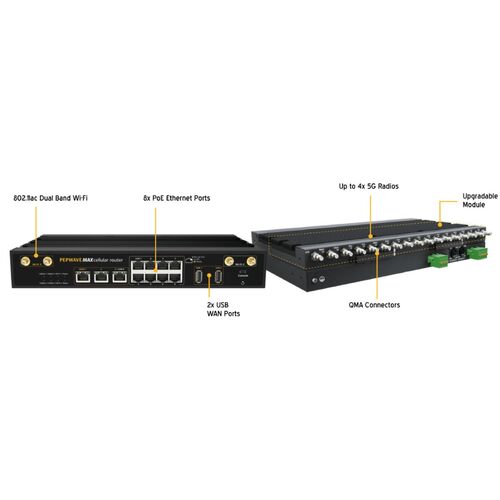

Best of both worlds
HD4 MBX 5G is a quad cellular mobile powerhouse with redundant SIM slots and multi-radio capabilities providing speed, reliability, and coverage by combining the best of 5G and LTE.

Portability
Its compact form allows it to be deployed in a wide variety of situations such as vehicles, vessels, and branch networks.

Compatibility with SIM injector
Its compatibility allows for upgradable modules for further customisation to suit any deployment needs.

Optimise your traffic
Whether you need speed or cost-effectiveness, use Traffic Steering to guide each packet to the most suitable connection.

• WAN Interfaces: 4x Embedded Cellular Modems with Redundant SIM Slots, 3x GE*, 2x USB 2.0 Interface
• LAN Interface: 9x GE*
• Wi-Fi Interface: 802.11ac/a/b/g/n, 1166 Mbps 2x2MIMO, Wi-Fi WAN and/or AP, Simultaneous Dual-Band
• Router Throughput: 2.5 Gbps
• PepVPN Throughput (No Encryption): 600 Mbps
• PepVPN Throughput (256-bit AES): 500 Mbps
• 5G Cellular Data Rate@ (Downlink / Uplink): 5G: 4 Gbps / 700 Mbps, LTE CAT-20: 2 Gbps / 150 Mbps
• Recommended Users: 50-500
• Antenna Connectors: 16x QMA Antenna Connectors, 1x QMA GPS Antenna Connector, 4x RP-SMA Wi-Fi Antenna Connectors
• Power Input: DC Jack/Terminal Block: 12-56 V#
• Power Output: Up to Eight 802.3at PoE Outputs#
• Power Consumption: 55 W (max.)

* WAN 3 is configured as a LAN port by default, configuration is changeable on the Web Admin.
# 2x 54V DC input is needed for all 8x LAN ports to have 802.3at PoE. Plugging in 1x 54V DC input will result in 4x LAN ports having 802.3at PoE.
SKU PEP.EXM-MBX-T4-5GD
Model # EXM-MBX-T4-5GD
Brand Peplink
Shipping Weight 3.3000kg
Shipping Width 0.177m
Shipping Height 0.043m
Shipping Length 0.292m
Shipping Cubic 0.002222000m3
Unit Of Measure ea
