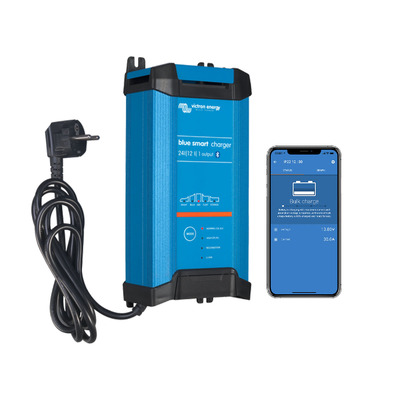

Victron Blue Smart IP22 Battery Charger

Blue Smart Charger

12V, 1 output

15 / 20 / 30A

12V, 3 outputs

15 / 20 / 30A

24V, 1 output

8 / 12 / 16A

24V, 3 outputs

8 / 12 / 16A

Input voltage range

180 – 265 VAC

180 – 265 VAC

Charge current, normal mode

15 / 20 / 30 A

8/12/16 A

Charge current, NIGHT or LOW

7,5 / 10 / 15 A

4 / 6 / 8 A

Efficiency

93%

94%

No load power consumption

0.5 W

0.5 W

Frequency

45 – 65 Hz

45 – 65 Hz

Number of outputs

1

3

1

3

Charge voltage 'absorption'

Normal: 14,4V High: 14,7V Li-ion: 14,2V

Normal: 28,8V High: 29,4V Li-ion: 28,4V

Charge voltage 'float'

Normal: 13,8V High: 13,8V Li-ion: 13,5V

Normal: 27,6V High: 27,6V Li-ion: 27,0V

Charge voltage 'storage'

Normal: 13,2V High: 13,2V Li-ion: 13,5V

Normal: 26,4V High: 26,4V Li-ion: 27,0V

Charge algorithm

6-stage adaptive

Can be used as power supply

Yes

Protection

Battery reverse polarity (fuse) Output short circuit Over temperature

Operating temp. range

-20 to +50°C

Humidity (non-condensing)

Max 98%

ENCLOSURE

Material & Colour

Aluminium (blue RAL 5012)

Battery connection

Screw terminals 13 mm² / AWG6

230 V AC connection

Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ)

Protection category

IP22

Weight

1,3 kg

Dimensions (h x w x d)

235 x 108 x 65 mm

STANDARDS

Safety

EN 60335-1, EN 60335-2-29

Emission

EN 55014-1, EN 61000-6-3, EN 61000-3-2

Immunity

EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3

Automotive

E4-10R

E4-10R
