Victron Quattro

The Quattro inverter charger connects to two independent AC sources, for example shore power and generator. The Quattro will automatically connect to the active source.

Available in 3kVA, 5kVA, 8kVA, 10kVA and 15kVA models with battery voltages ranging from 12 to 48 volts the Quattro is a powerful multifunctional inverter charger with some unique features. Supporting multiple system integrations including three-phase and split phase, the devices can also operate in parallel to meet higher power demands.

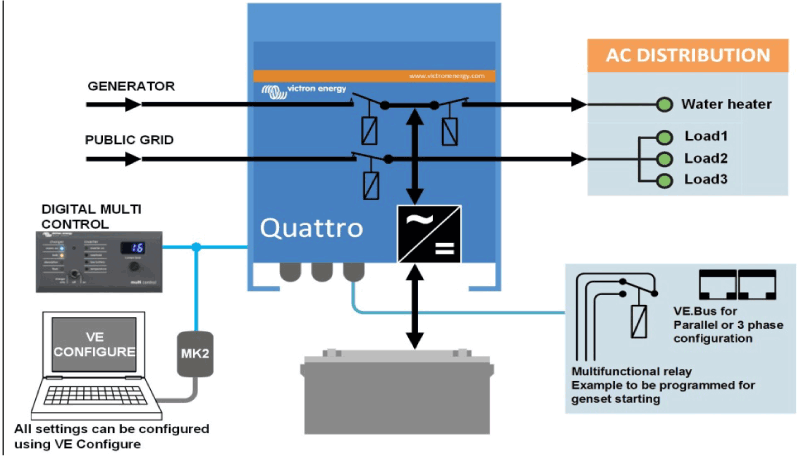

Similar to the MultiPlus, the Quattro has the same easy to install features such as PowerControl and PowerAssist and supports two AC Inputs and two AC Outputs. This means two independent power sources can be connected, such as a generator or mains power. The Quattro automatically selects the input where voltage is present with the generator input taking priority.

These, as well as other features such as as the automatic and uninterruptible switching means this device potentially delivers virtually unlimited power.



MultiPlus vs Quattro
The MultiPlus and Quattro products play a central role in both AC and DC systems. They are both powerful battery chargers and inverters in one box. The amount of available AC sources is the deciding factor when choosing between the Quattro and the Multi. The big difference is that a Quattro can take two AC sources, and switch between them based on intelligent rules. The MultiPlus can take only one AC source. Furthermore, should you require an output of higher than 5000VA you would need to select the Quattro.

Image Name AC  Charger  DC  Inverter   Price

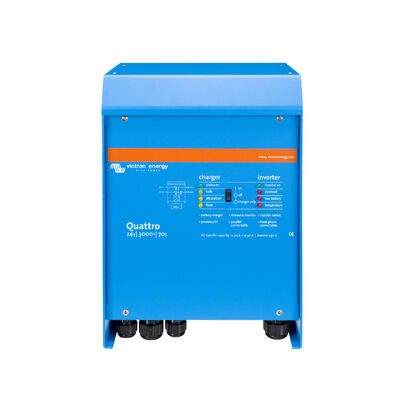

Victron Quattro 24/3000/70-50/50  230V VE.Bus Inverter Charger Victron Quattro 24/3000/70-50/50 230V VE.Bus Inverter Charger
SKU
VIC.QUA243020010
230V70A24V3000VA

$3,685.00
$2,801.00

Victron Quattro 12/3000/120-50/50 230V VE.Bus Inverter Charger Victron Quattro 12/3000/120-50/50 230V VE.Bus Inverter Charger
SKU
VIC.QUA123020010
230V120A12V3000VA

$3,877.00
$3,099.00

Victron Quattro 48/5000/70-100/100  230V VE.Bus Inverter Charger Victron Quattro 48/5000/70-100/100 230V VE.Bus Inverter Charger
SKU
VIC.QUA485021010
230V70A48V5000VA

$4,087.00
$3,270.00

Victron Quattro 48/5000/70-100/100-S  230V VE.Bus Victron Quattro 48/5000/70-100/100-S 230V VE.Bus
SKU
VIC.QUA485021011
230V70A48V5000VA

$4,087.00
$3,270.00

Victron Quattro 24/5000/120-100/100 230V VE.Bus Inverter Charger Victron Quattro 24/5000/120-100/100 230V VE.Bus Inverter Charger
SKU
VIC.QUA245021010
230V120A24V5000VA

$5,049.00
$3,787.00

Victron Quattro 48/8000/110-100/100  230V VE.Bus Inverter Charger Victron Quattro 48/8000/110-100/100 230V VE.Bus Inverter Charger
SKU
VIC.QUA488024000
230V110A48V8000VA

$5,547.00
$4,300.00

Victron Quattro 12/5000/220-100/100 230V VE.Bus Inverter Charger Victron Quattro 12/5000/220-100/100 230V VE.Bus Inverter Charger
SKU
VIC.QUA125020000
230V220A12V5000VA

$6,039.00
$4,799.00

Victron Quattro 24/8000/200-100/100 230V VE.Bus Inverter Charger Victron Quattro 24/8000/200-100/100 230V VE.Bus Inverter Charger
SKU
VIC.QUA248020010
230V200A24V8000VA

$6,372.00
$5,052.00

Victron Quattro 48/10000/140-100/100 230V VE.Bus Inverter Charger Victron Quattro 48/10000/140-100/100 230V VE.Bus Inverter Charger
SKU
VIC.QUA481030010
230V140A48V10000VA

$6,628.00
$5,233.00

Victron Quattro 48/15000/200-100/100  230V VE.Bus Inverter Charger Victron Quattro 48/15000/200-100/100 230V VE.Bus Inverter Charger
SKU
VIC.QUA483150000
230V200A48V15000VA

$8,707.00
$6,960.00

System Operation - Victron Quattro

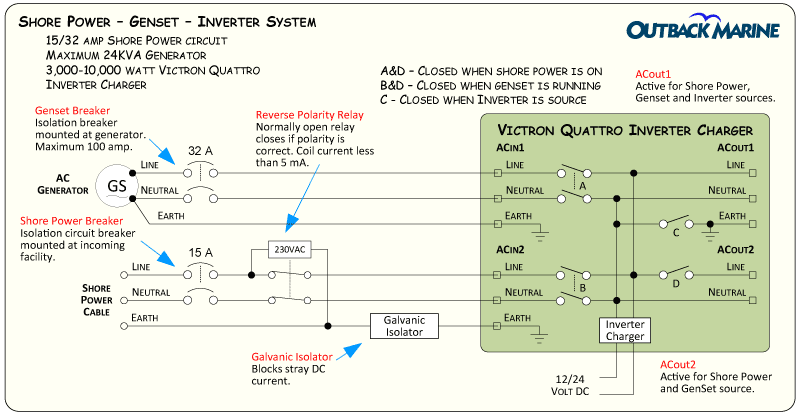

The Quattro employs two AC inputs - shore power and generator. Either input can bring power into the Quattro. The generator input has priority over the shore power input. When either the shore power or generator input is active, power is transferred through the Quattro to AC outputs 1 and 2. If no input power is available, the invert provides power only to ACout1. ACout2 then is reserved for loads that are only powered up from the Genset or Shore power.

Note that when power is available from the inverter, input power sources are completely isolated and an MEN connection is made internally between Neutral and Earth. When either Genset or Shore power is active, the MEN link is inherited from the external power source.

If the load demand on the output is greater than what the shore power or genset input can provide, a programmable Power Assist function can borrow power from the inverter to increase the total available power. If a small generator was running, this "generator support" capability is ideal for handling higher startup loads that would otherwise stall the generator - for example air conditioning systems.
