Manual Battery Switches

Battery switches isolate the potentially destructive energy in the battery banks when the boat is not in use or during emergencies. They are available in different configurations according to the application.

These are familiar to most boaters as a large, usually red switch with a round face and prominent knob. The 4-position selector switch has long been the industry standard for managing the selection and charging of two battery banks. Blue Sea Systems has three families of manual battery switches.

  • The compact m-Series is rated at 300A continuous and is ideal for outboard motors or small inboard engines.
  • The standard e-Series has a 350A continuous current rating and is a popular replacement switch.
  • The heavy-duty HD-Series can carry up to 600A of continuous current, making it an excellent choice for boats with large diesel engines.



Blue Seas Battery Switch

Some switches have an auxiliary contact called an AFD (for Alternator Field Disconnect) which is used to disable the alternator field whenever the switch is turned to an open position. Otherwise, the alternator diodes are susceptible to damage by "cutting" the charge current to the battery.

Image Name Afd  Positions  Poles   Price
(inc GST)
Blue Sea 6006 m-Series Mini Selector Battery Switch - ON-OFF Blue Sea 6006 m-Series Mini Selector Battery Switch - ON-OFF
SKU: BSS.6006
No AFDON-OFFSingle Pole

$47.80

Victron Battery Switch ON/OFF 275A Victron Battery Switch ON/OFF 275A
SKU: VIC.VBS127010010
No AFDON-OFFSingle Pole

$64.90
$54.90

Blue Sea 6007 m-Series Mini Selector Battery Switch - 4 Position Blue Sea 6007 m-Series Mini Selector Battery Switch - 4 Position
SKU: BSS.6007
No AFD1-OFF-2-BOTHSingle Pole

$66.90

Blue Sea 9003e e-Series On Off Battery Switch Blue Sea 9003e e-Series On Off Battery Switch
SKU: BSS.9003e
No AFDON-OFFSingle Pole

$68.00

Blue Sea 9001e e-Series Selector Battery Switch - 4 Position Blue Sea 9001e e-Series Selector Battery Switch - 4 Position
SKU: BSS.9001e
No AFD1-OFF-2-BOTHSingle Pole

$74.80

SR Single Pole Panel Mount w/Lock-Out 300A Switch - Littelfuse 880064 SR Single Pole Panel Mount w/Lock-Out 300A Switch - Littelfuse 880064
SKU: LIT.880064
No AFDON-OFFSingle Pole

$75.00

Blue Sea 6010 m-Series Mini Selector Battery Switch - Dual Circuit Blue Sea 6010 m-Series Mini Selector Battery Switch - Dual Circuit
SKU: BSS.6010
No AFDON-OFFDouble Pole

$80.20

Blue Sea 6011 m-Series Mini Selector Battery Switch - Dual Circuit Plus Blue Sea 6011 m-Series Mini Selector Battery Switch - Dual Circuit Plus
SKU: BSS.6011
No AFDON-OFF-BOTHDouble Pole

$80.20

Blue Sea 6008 m-Series Mini Selector Battery Switch - 3 Position Blue Sea 6008 m-Series Mini Selector Battery Switch - 3 Position
SKU: BSS.6008
No AFD1-OFF-2Single Pole

$81.30

Blue Sea 9002e e-Series Selector Battery Switch with AFD - 4 Position Blue Sea 9002e e-Series Selector Battery Switch with AFD - 4 Position
SKU: BSS.9002e
AFD1-OFF-2-BOTHSingle Pole

$82.20

Blue Sea Switch Battery e Selector 3p w/AFD Blue Sea Switch Battery e Selector 3p w/AFD
SKU: BSS.11001
AFD1-OFF-2Single Pole

$84.90

Blue Sea Switch Battery e DualCirc Blue Sea Switch Battery e DualCirc
SKU: BSS.5510e
No AFDON-OFFDouble Pole

$112.10

Blue Sea Switch Battery e DualCircPlus Blue Sea Switch Battery e DualCircPlus
SKU: BSS.5511e
No AFDON-OFF-BOTHDouble Pole

$112.10

Blue Sea 9004e e-Series On-Off Battery Switch with AFD Blue Sea 9004e e-Series On-Off Battery Switch with AFD
SKU: BSS.9004e
AFDON-OFFSingle Pole

$116.70

Blue Sea 3000 HD-Series Heavy Duty On-Off Battery Switch - ON-OFF Blue Sea 3000 HD-Series Heavy Duty On-Off Battery Switch - ON-OFF
SKU: BSS.3000
No AFDON-OFFSingle Pole

$150.70

Blue Sea 3003 HD-Series Heavy Duty Selector Battery Switch with AFD - 4 Position Blue Sea 3003 HD-Series Heavy Duty Selector Battery Switch with AFD - 4 Position
SKU: BSS.3003
AFD1-OFF-2-BOTHSingle Pole

$179.70

Blue Sea 3002 HD-Series Heavy Duty Selector Battery Switch - 4 Position Blue Sea 3002 HD-Series Heavy Duty Selector Battery Switch - 4 Position
SKU: BSS.3002
No AFD1-OFF-2-BOTHSingle Pole

$189.20

Blue Sea 11003 HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD Blue Sea 11003 HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD
SKU: BSS.11003
AFD1-OFF-2Single Pole

$190.70

Blue Sea 3001 HD-Series Heavy Duty On-Off Battery Switch with AFD Blue Sea 3001 HD-Series Heavy Duty On-Off Battery Switch with AFD
SKU: BSS.3001
AFDON-OFFSingle Pole

$209.00

M-Series Battery Switch

Blue Seas M-Series Battery Switch Features

Features

  • 300 Ampere continuous rating for outboards and small petrol or diesel engines
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface, front panel, or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts

BNlue Seas M Series Dimension Drawing

E-Series Battery Switch

Blue Seas E-Series Marine Battery Switch

Features

  • 350 Ampere continuous rating for inboard petrol or diesel engines
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches

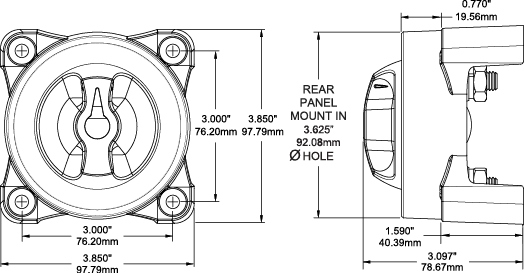

Blue Seas E Series Battery Switch Dimension

HD-Series Battery Switch

Blue Seas HD Series Marine Battery Switch

Features

  • Up to 600 Ampere continuous rating for large diesel engines
  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm²) battery cables

Blue Seas HD Series Dimension Drawing
