Radome Antenna

Raymarine Digital & HD Color Radome Antenna Features

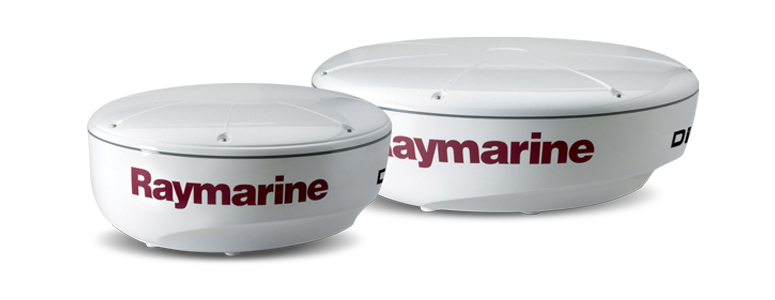

Digital Radomes

Exceptional performance, even in the most challenging conditions

Raymarine radome antennas deliver power & clarity.

SeaTalkHS connectivity and Raymarine's Auto GST technology provides enhanced small target returns and eliminates clutter caused by rain and sea conditions automatically through your Multifunction Display.

Each Raymarine Radar System consists of a Raymarine multifunction display , and your choice of Raymarine radome or open array antenna.

Digital and HD Color Radomes are ideal when power is at a premium and mounting space is limited or restricted by rigging. Perfect for sailboats, RIBs and smaller powerboats, radomes provide exceptional performance even in the most challenging conditions – new HD Color Radomes provide additional features and improved resolution.

Image Name Antenna  Power  Size  Type   Price
Raymarine 4kW 18in (456mm) HD Color Radome no Cable Raymarine 4kW 18in (456mm) HD Color Radome no Cable
SKU
RAY.E92142
Radome4KW18HD Colour

$2,849.00
$2,637.10

Raymarine 4kW 18in (456mm) HD Color Radome + 10m Raynet Cable Raymarine 4kW 18in (456mm) HD Color Radome + 10m Raynet Cable
SKU
RAY.T70168
Radome4KW18HD Colour

$2,999.00
$2,775.90

Raymarine 4kW 24in (608mm) HD Color Radome no Cable Raymarine 4kW 24in (608mm) HD Color Radome no Cable
SKU
RAY.E92143
Radome4KW24HD Colour

$3,849.00
$3,562.70

Raymarine 4kW 24in (608mm) HD Color Radome + 10m Raynet Cable Raymarine 4kW 24in (608mm) HD Color Radome + 10m Raynet Cable
SKU
RAY.T70169
Radome4KW24HD Colour

$3,999.00
$3,701.50

Raymarine Digital Radome Antennas

  • 48 NM range
  • Plug and Play compatibility with: Raymarine new a Series, new c Series , new e Series and G Series multifunction navigation displays
  • Improved radiation pattern and bearing resolution using Propagation Enhancing Geometry
  • Same mounting pattern as previous generation radomes
  • Utilises small SeaTalk HS interconnect cable for ease of installation

Raymarine HD Color Radome Scanners

  • 48 NM range
  • Adaptive digital receiver automatically adjusts to changing environmental and sea conditions for a dramatically clearer picture
  • 256 color multi-level target display with selectable color palettes
  • Bird Mode automatically optimizes the receiver for detecting sea birds above schools of fish
  • Dual-range mode allow you to monitor both long and short ranges simultaneously with a single scanner and display

Digital Radar Cables

All the Digital Radar cables are listed below. We have the new "RayNet" Radar Cables, followed by the selection of available extension cables.

Finally we have the older "RJ45" radar cables, for those who need to interface to an RJ45 network switch or crossover coupler (etc).

Product Product Compatibility Data Length Part Number
Radar Cable (RayNet) Radar to 'RayNet & Power' cable Ethernet & Power 5m A80227
Radar Cable (RayNet) Radar to 'RayNet & Power' cable Ethernet & Power 10m A80228
Radar Cable (RayNet) Radar to 'RayNet & Power' cable Ethernet & Power 15m A80229
Radar Cable (RayNet) Radar to 'RayNet & Power' cable Ethernet & Power 25m A80230
Radar Extension Cable Radar Extension Cable
One Male and one Female radar connector on each end
Ethernet & Power 2.5m A92141D
Radar Extension Cable Radar Extension Cable.
One Male and One Female radar connector on each end
Ethernet & Power 5m A55080D
Radar Extension Cable Radar Extension Cable.
One Male and One Female radar connector on each end
Ethernet & Power 10m A55081D
Radar Cable (RJ45) Radar to 'RJ45 & Power' cable Ethernet & Power 5m A55076D
Radar Cable (RJ45) Radar to 'RJ45 & Power' cable Ethernet & Power 10m A55077D
Radar Cable (RJ45) Radar to 'RJ45 & Power' cable Ethernet & Power 15m A55078D
Radar Cable (RJ45) Radar to 'RJ45 & Power' cable Ethernet & Power 25m A55079D
