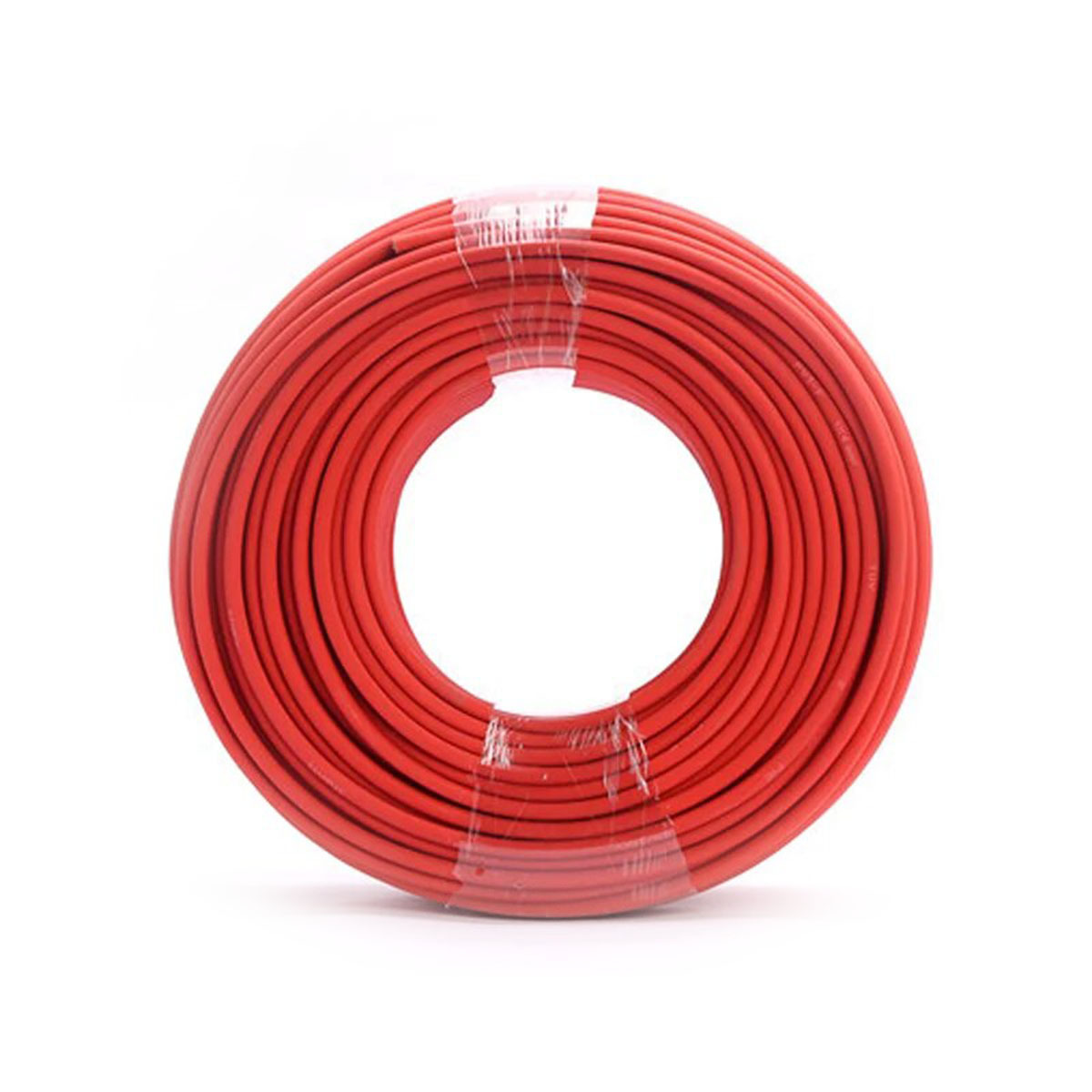

UP Series Untinned LSZH Power Cable

The UP Series Untinned LSZH Power Cables represent the pinnacle of innovation in marine and shipboard electrical wiring. These cables are specifically engineered to provide a reliable and safe power supply in demanding maritime environments.

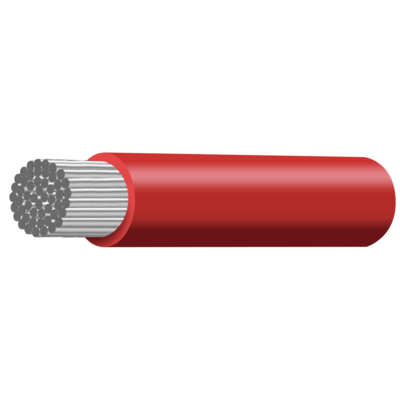

Construction:

  • Conductors:

    The cables feature finely stranded annealed copper conductors, compliant with IEC 60228 & AS/NZS 1125 standards, ensuring optimal electrical conductivity and flexibility.
  • Core Insulation:

    The core is insulated with 'easy strip' LSZH/XLPO HF-90, conforming to EAC 60092-360. This high-grade insulation material not only provides enhanced safety but also facilitates easy installation.

Key Specifications:

  • Operating Temperature:

    The cables are designed to function efficiently in a wide temperature range from -40°C to 110°C, making them suitable for various marine climatic conditions.
  • Voltage Rating:

    With a voltage rating of 600/1000 Volts, these cables are capable of handling substantial power loads.
  • Standards Compliance:

    The UP Series meets several international standards, including IEC 60228, IEC 60092-350, and IEEE 45, among others, ensuring its suitability for global maritime applications.
  • Approvals:

    These cables have received approvals from numerous maritime authorities, including ABS, BV, DNV-GL, and USCG, underscoring their quality and reliability.



Typical Applications:

Ideal for all shipboard and marine applications, the UP Series Untinned LSZH Power Cables are tailored for flexible, single insulated power cable needs. Their robust construction and adherence to stringent standards make them a preferred choice for maritime electrical systems.



Operating Temperature -40°C to 110°C
Voltage Rating 600/1000 Volts
Standards IEC 60228
IEC 60092-350
IEC 60092-353
IEC 60332-1
IEC 60332-3-22 Cat A
IEC 60754-1&2
IEC 61034-1&2
IEEE 45
IEEE 1580
IEEE 1202
AS/NZS 1125
AS/NZS 1660.5.1
AS/NZS 1660.5.2
AS/NZS 1660.5.3
AS/NZS 1660.5.6
Approvals ABS, BV, DNV-GL, USCG
SKU TRI.UP-XXXN1C50R
Brand Triangle Cables
Shipping Weight 0.5100kg
Unit Of Measure m
