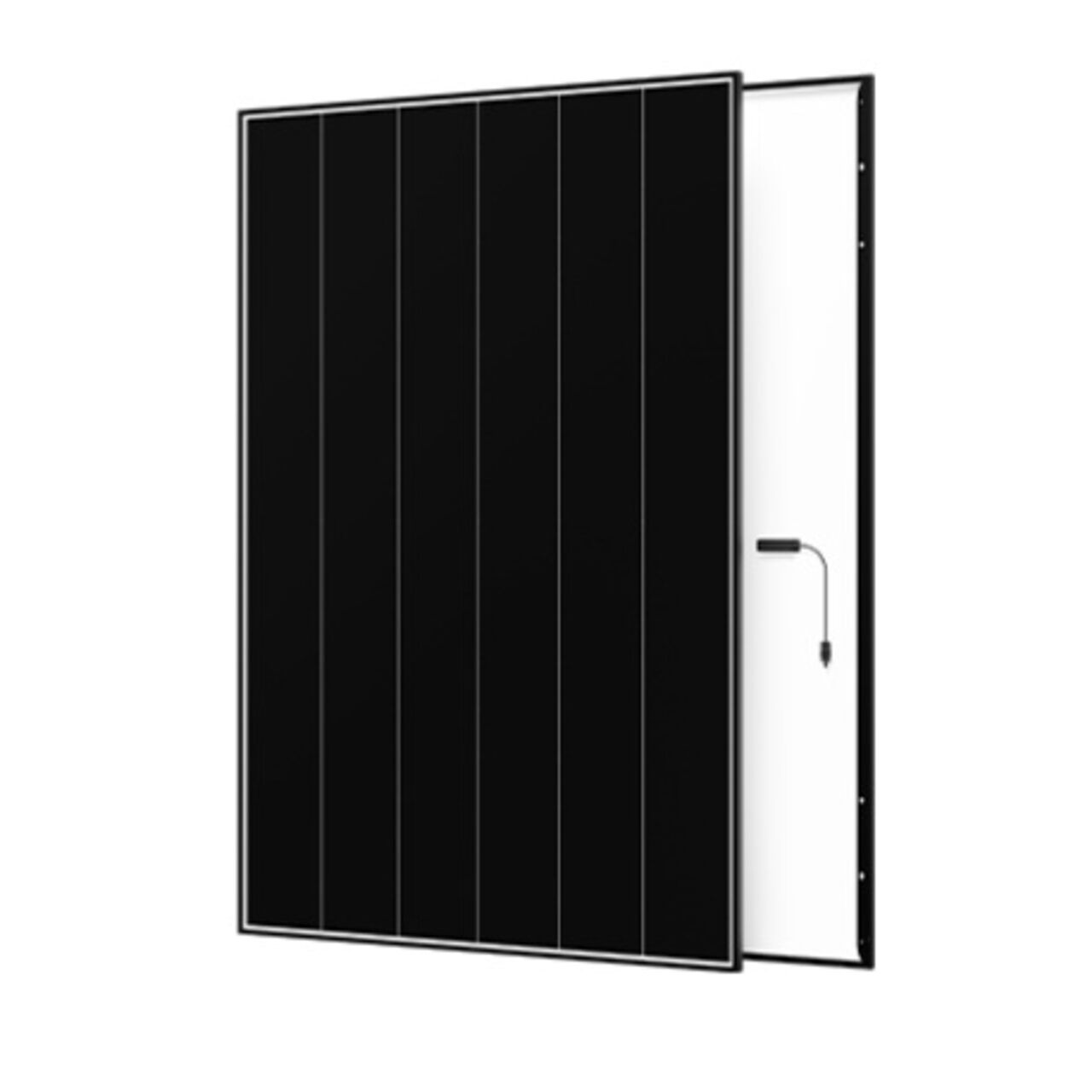

High efficiency mono glass solar panel delivering superior power output performance

This high-performance mono-glass solar module utilises advanced N-type BC cell technology to deliver power output up to 500W with industry-leading efficiency reaching 25.0%. Designed for residential and commercial rooftop systems, it offers improved performance under partial shading, enhanced temperature control, and reduced degradation over time. The robust construction, combined with high weather resistance and optimised electrical performance, ensures long-term reliability, excellent energy yield, and consistent operation across varying environmental conditions.

Key Features

  • High Power Output and Efficiency: Delivers up to 500W output with module efficiency reaching 25.0%, maximising energy generation and system performance.
  • Advanced N-type BC Cell Technology: Enhances energy conversion efficiency while reducing long-term degradation and improving overall module reliability.
  • Optimised Partial Shading Performance: Maintains higher energy yield in shaded conditions, reducing system losses and improving real-world output.
  • Improved Temperature Performance: Low temperature coefficient of -0.26%/°C ensures stable output and better efficiency in high-temperature environments.
  • Reduced Degradation Rate: Features 1% first-year degradation and only 0.35% annual degradation, ensuring sustained long-term performance.
  • Robust Mono-Glass Construction: Utilises 3.2 mm tempered glass and durable backsheet for enhanced strength and environmental resistance.
  • High Mechanical Load Resistance: Designed to withstand up to 5400 Pa front load and 2400 Pa rear load, suitable for harsh weather conditions.
  • Extended Warranty Coverage: Backed by 25-year product warranty and 30-year linear performance warranty for long-term assurance.
  • High System Voltage Capability: Supports up to 1500V DC systems, enabling flexible system design and improved efficiency.
  • Enhanced Safety and Reliability: Features IP68 junction box, Class II protection, and IEC fire rating Class C for safe operation.

This module provides exceptional efficiency and durability, making it a reliable choice for high-performance solar installations.

PLEASE CONTACT US FOR SHIPPING QUOTE. 07 5593 6088 or contactus@outbackmarine.com.au

General Specifications
Cell Type N-Type BC
Maximum Power Output Up to 500W
Module Efficiency Up to 25.0%
Number of Cells 108 Cells
Module Dimensions 1762 × 1134 × 30 mm
Weight 20.6 kg
Electrical Characteristics
Maximum System Voltage 1500 V DC
Maximum Series Fuse Rating 25 A
Power Tolerance ±3%
Temperature Ratings
Temperature Coefficient (Pmax) -0.26%/°C
Temperature Coefficient (Voc) -0.22%/°C
Temperature Coefficient (Isc) +0.05%/°C
Operating Temperature -40°C to +85°C
Mechanical Specifications
Front Glass 3.2 mm Tempered Glass
Backsheet High Weather Resistant
Frame Black Anodised Aluminium
Junction Box IP68 Rated
Cable Length ±1200 mm
Connector Type Stäubli PV Connectors
SKU AIK.AIKO-A490-MCE54Mw
Model # AIKO-A490-MCE54Mw
Brand AIKO
Shipping Weight 21.0000kg
Shipping Width 1.134m
Shipping Height 0.300m
Shipping Length 1.762m
Shipping Cubic 0.599432400m3
Unit Of Measure ea
