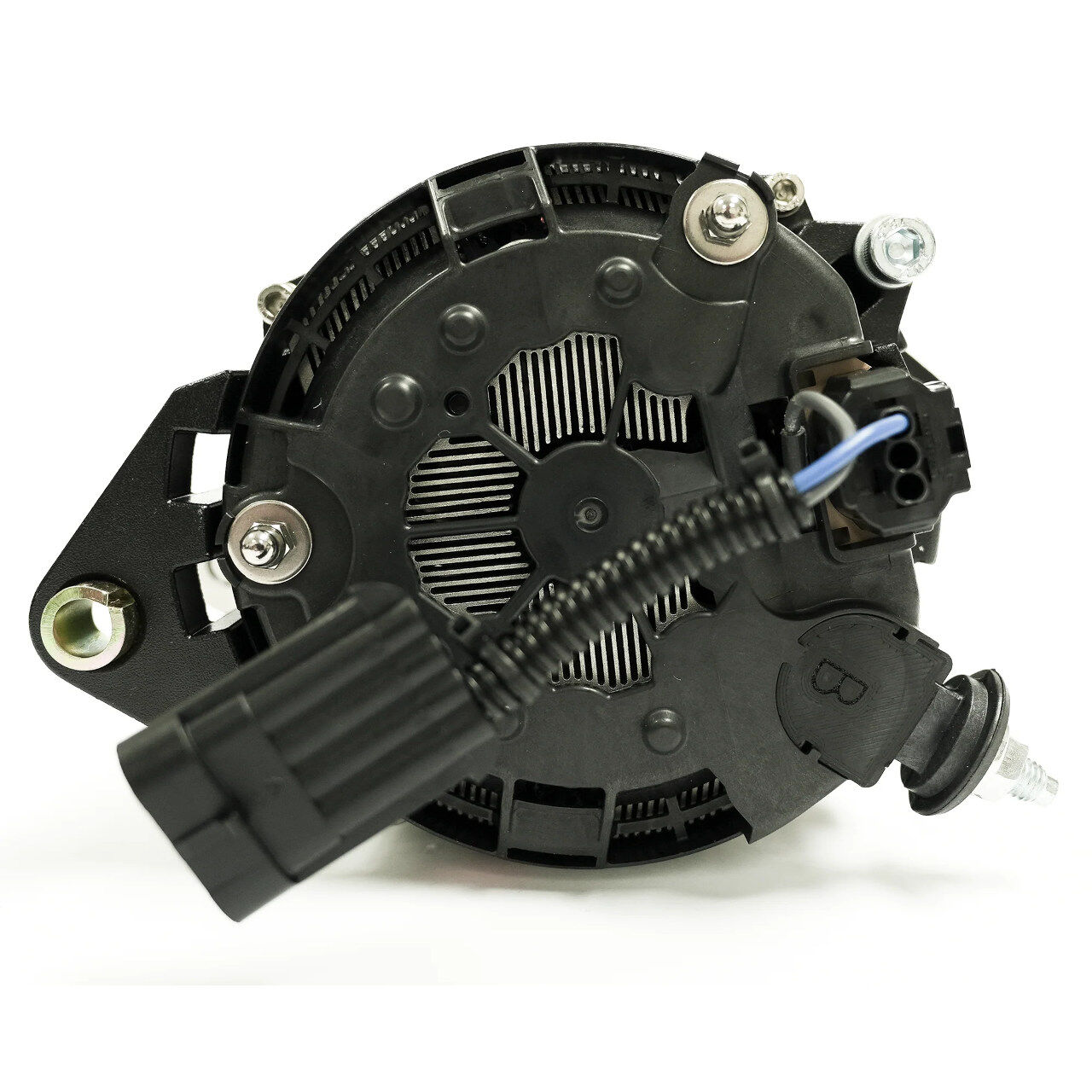

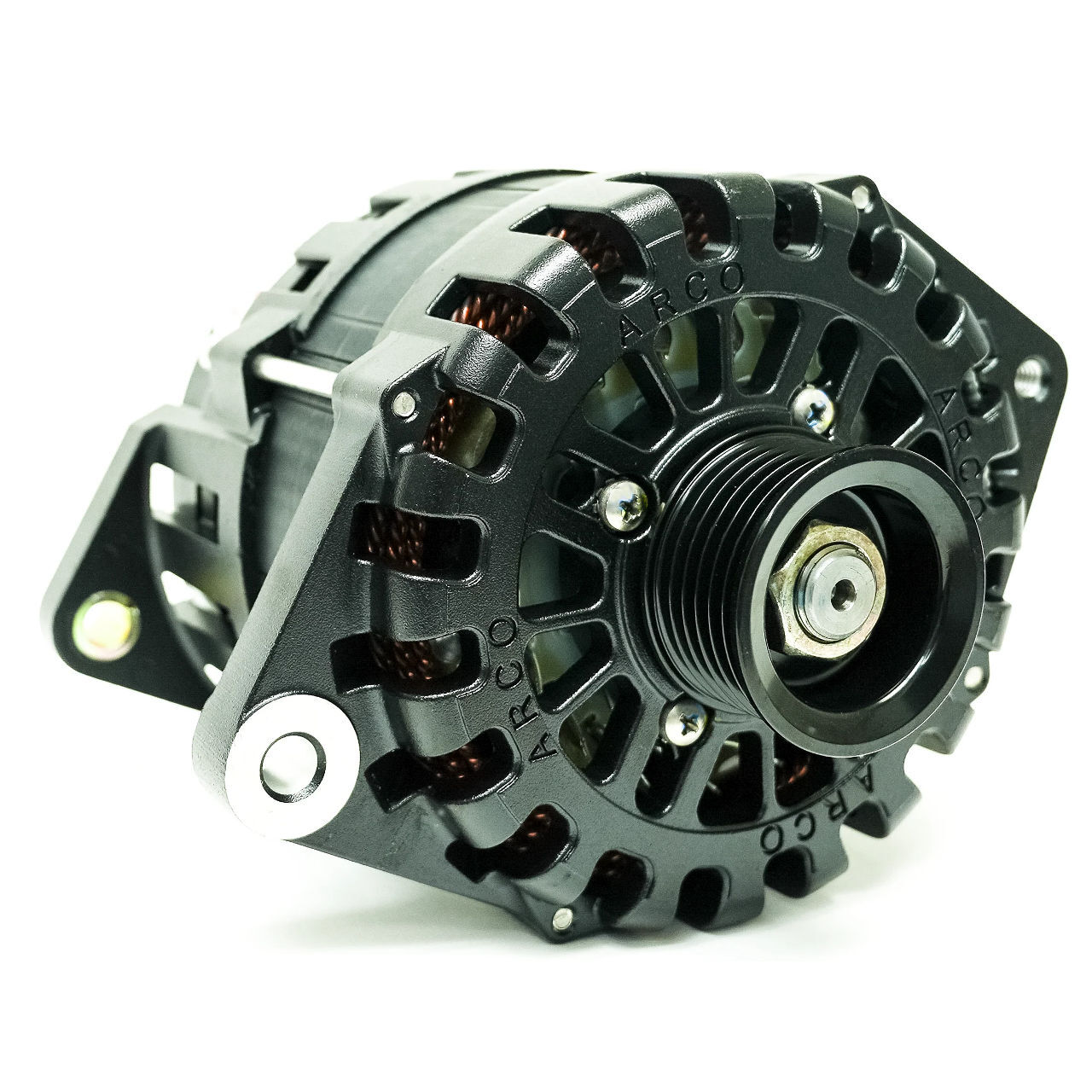

High-Output 48V Marine Alternator with Isolated Ground for Heavy-Duty Charging Systems

Large-capacity 48V battery systems require an alternator capable of delivering sustained output under continuous load. This externally regulated 8kW alternator is engineered with a native 48V rotor to maximise efficiency, reduce operating temperatures, and deliver consistent charging performance across a wide RPM range. Featuring an isolated ground configuration, rear battery post, and 49mm K6 pulley, it is well suited to marine, commercial, and specialist vehicle installations where high-output charging and electrical isolation are required.

Key Features

• Native 48V Rotor Design: Purpose-built 48V rotor improves efficiency and reduces heat generation compared to converted 12V alternators.
• High Continuous Power Output: Produces up to 9,630W (180A) under cold conditions, with sustained hot output of 7,383W (138A) during cruising speeds.
• Strong Low-RPM Charging Performance: Generates useful charging current from low alternator speeds, helping recharge large battery banks while the engine is idling or operating at lower RPM.
• Externally Regulated Operation: Compatible with external regulators, allowing precise charging profiles for lithium and other advanced battery chemistries.
• Isolated Ground Configuration: Provides electrical isolation for marine installations where isolated grounding is required.
• Advanced Cooling System: Dual cooling fans, externally mounted rectifier, and black E-coating help maintain lower operating temperatures during prolonged high-load operation.
• Heavy-Duty Internal Components: Features a 16-pole rotor and avalanche-rated diodes for dependable performance in demanding environments.
• 49mm K6 Pulley: Supplied with a 6-groove 49mm pulley suitable for compatible drive systems.
• Rear Battery Post: Rear battery connection assists installations where cable routing requires a rear-exit configuration.
• SAE J1171 Certified: Certified for marine ignition protection and manufactured in the USA.

Built for demanding charging applications, this alternator delivers sustained 48V power while maintaining efficient thermal performance. External regulation allows the charging system to be tailored to the battery technology and installation requirements.
