Smart Regulator for Intelligent Alternator Control and Energy Management

The ARCO AZ1000X Zeus High Energy Alternator Regulator offers next-generation control, communication, and monitoring for advanced charging systems. Designed for 12 V to 48 V battery banks, it optimises alternator output while protecting system components through smart sensing and adaptive control.

Key Features

  • Intelligent Connectivity: Bluetooth app with password protection enables wireless setup, diagnostics, and system monitoring.
  • Comprehensive Communication: Includes RJ45, NMEA 2000, and dual CAN connections for full integration with BMS and networked systems.
  • Smart Regulation: Measures alternator and battery temperature and current, dynamically adjusting charge output for maximum performance and safety.
  • Flexible Operation: Supports Generator Mode™ for high-efficiency charging while reducing fuel use.
  • Versatile Compatibility: Works with both P-Type (B-circuit) and N-Type (A-circuit) alternators via included wiring harness.
  • Rugged Design: IP66/67 waterproof housing rated for harsh marine and off-grid environments.
  • Adaptive Management: Maintains house loads and full battery capacity after charge completion.
  • Multi-Voltage System Support: Operates across 12 V, 24 V, 36 V, and 48 V systems.

Built for precision energy management, the Zeus regulator delivers consistent, safe, and efficient charging across marine, RV, and renewable installations.

Technical Specifications

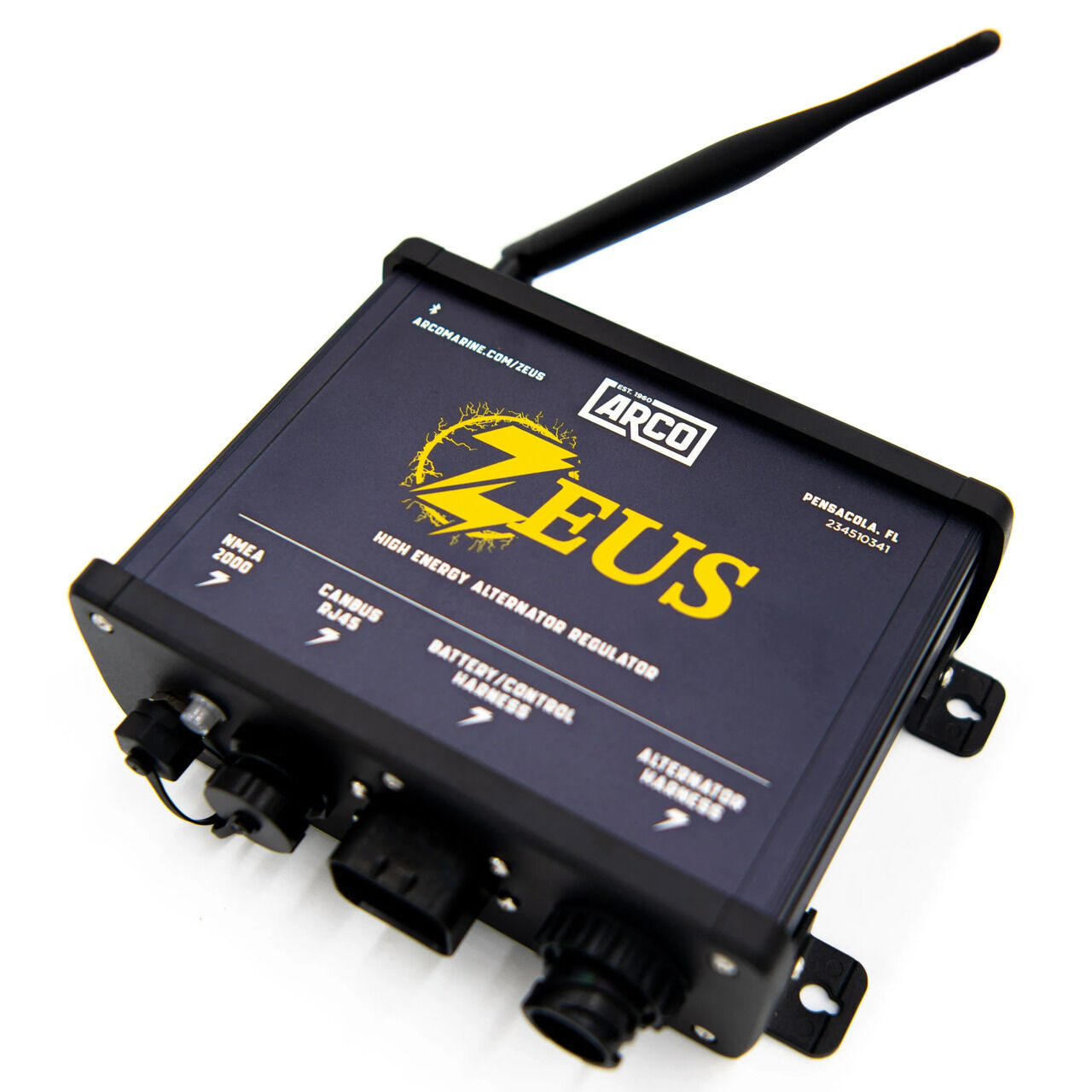

Model ARCO AZ1000X Zeus High Energy Alternator Regulator
System Voltage 12 V / 24 V / 36 V / 48 V
Bluetooth Yes (Password Protected)
Connections 2 × Feature-In, 1 × Feature-Out, RJ45, NMEA 2000, 2 × CAN
Dedicated Signal Wire External disable input (e.g. BMS)
Generator Mode™ Yes – Maximises charging efficiency at idle
Alternator Compatibility P-Type (B-Circuit) / N-Type (A-Circuit)
Waterproof Rating IP66 / IP67
Optimization Sensors Battery and Alternator current & temperature
Management ARCO App for installation, monitoring, and diagnostics
State of Charge (SOC) Supported
Enclosure Dimensions 8.2″ × 5.9″ × 2.4″ (without antenna), 8.2″ × 7.5″ × 2.4″ (with antenna)
Weight 1.7 lb
Operating Temperature Max 80 °C (176 °F)
Certifications CE Mark

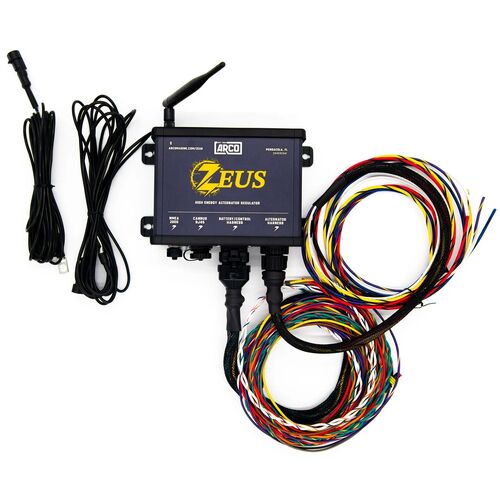

Included Regulator, Battery Harness, Alternator Harness, 2 Thermistors
Warranty 2 Years
SKU ARC.AZ1000X
Model # AZ1000X
UPC/EAN 659675592794
Brand Arco Marine
Shipping Weight 3.0000kg
Shipping Width 0.381m
Shipping Height 0.254m
Shipping Length 0.254m
Shipping Cubic 0.024580596m3
Unit Of Measure Each
