Balmar Centerfielder II 12/24V Dual Engine Charge Balancer

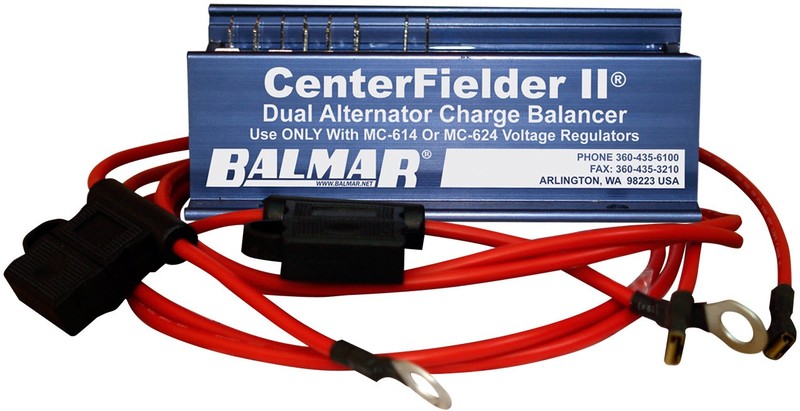

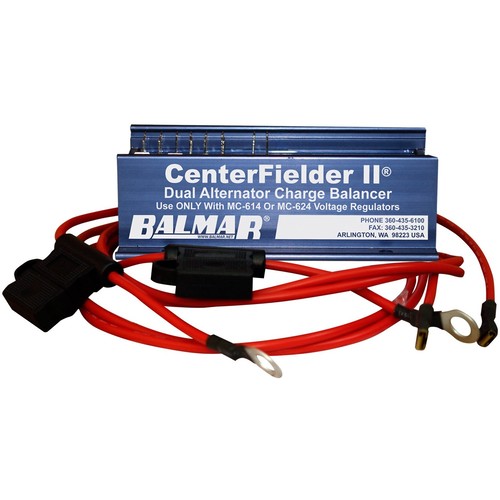

Balmar Centerfielder II Dual Engine Charge Balancer with upgraded regulator power wires and fuses.

The Centerfielder II balances twin-engine charging systems by monitoring the port and starboard voltage regulators. When both engines are running, the Centerfielder II automatically designates the starboard regulator as dominant for both alternators – making it possible to charge a single house battery bank with the combined output of both alternators. The Centerfielder II eliminates the “yo-yo effect” of two regulators repeatedly turning on and off as the battery approaches target voltage because the two systems are not working together.

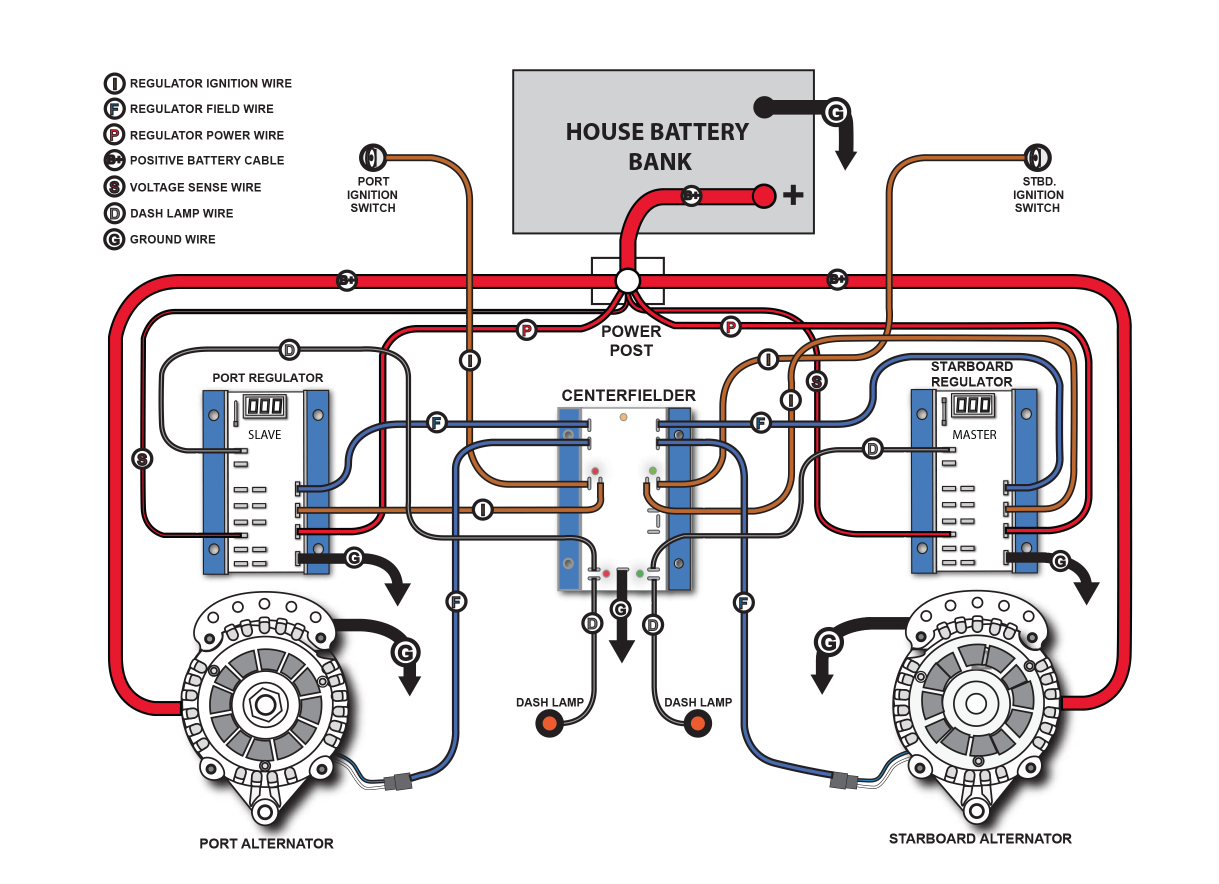

Typical Centerfielder II wiring system diagram































Note: For use with MC-614 or MC-624 regulators only.
