Complete Charging kit for Heavy-duty Marine Power Systems

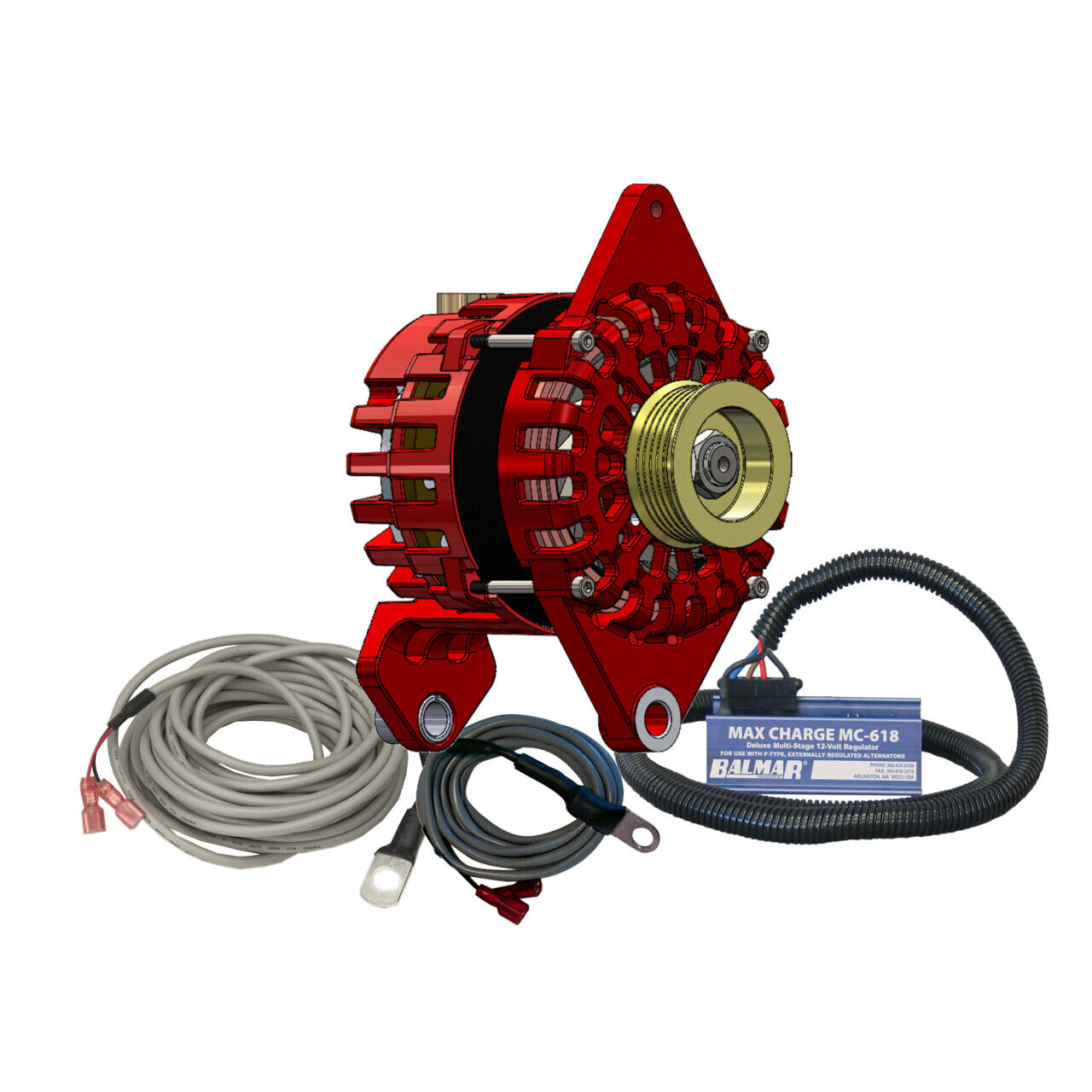

This all-in-one charging solution includes the 170A XT-Series alternator with a 4” dual foot saddle mount, Max Charge MC-618 external regulator, and dual temperature sensors. Engineered for vessels with large battery banks, it delivers exceptional low-RPM output and advanced regulation in one rugged, compact system—ideal for continuous marine power demands.

Key Features

  • Comprehensive Kit Solution: Includes alternator, MC-618 regulator, and temperature sensors for batteries and alternator.
  • High Idle Performance: Supplies up to 128A at idle, maintaining load demands without discharging batteries.
  • Smart Ready® Technology: Built-in internal regulator offers backup control and added system resilience.
  • External Multi-Stage Charging: MC-618 regulator delivers precise multistage charging for AGM, gel, lithium, and flooded batteries.
  • Thermal Protection: Temperature sensors optimise charge rate based on battery and alternator temperature to protect components.
  • Advanced Braided Stator: 96-slot stator improves output and efficiency while reducing heat.
  • Certified for Marine Use: Complies with USCG Title 33, ISO 8846, CE, and SAE J1171 standards.
  • 4" Saddle Mount Compatibility: Fits J-180 style engine mounts found on large diesel configurations.
  • Supports Dual Pulley Types: Compatible with DV, K6, or J10 pulleys (AltMount® kit required if not present).
  • Durable Construction: Red powder-coated cast aluminium body with dual fan cooling and sealed bearings.

Ideal for long-range cruisers, commercial vessels or systems with high daily discharge, this kit provides efficient, safe, and reliable charging.

Product Specifications
Series XT-Series
Kit Contents Alternator, MC-618 Regulator, MC-TS-A & MC-TS-B Sensors
Output Current 170A
Voltage 12V
Mounting Type 4” Dual Foot (Saddle, J-180 Style)
Pulley Compatibility DV, K6, J10 (Dual Pulley)
Regulation Smart Ready® Internal + MC-618 External
Cooling Dual Internal Fans
Stator Design 96-Slot Braided Wire
Cut-In RPM 1,150 RPM
Max RPM 18,000 RPM
Operating Temperature 180°F Normal, 225°F Max
Ignition Protection USCG Title 33, ISO 8846, CE, SAE J1171
Grounding Case Ground
Case Material Red Powder-Coated Aluminium
SKU BAL.XT-DF4-170-DV-KIT
Model # XT-DF4-170-DV-KIT
Brand Balmar
Shipping Weight 24.0000kg
Shipping Width 0.254m
Shipping Height 0.355m
Shipping Length 0.254m
Shipping Cubic 0.022903180m3
