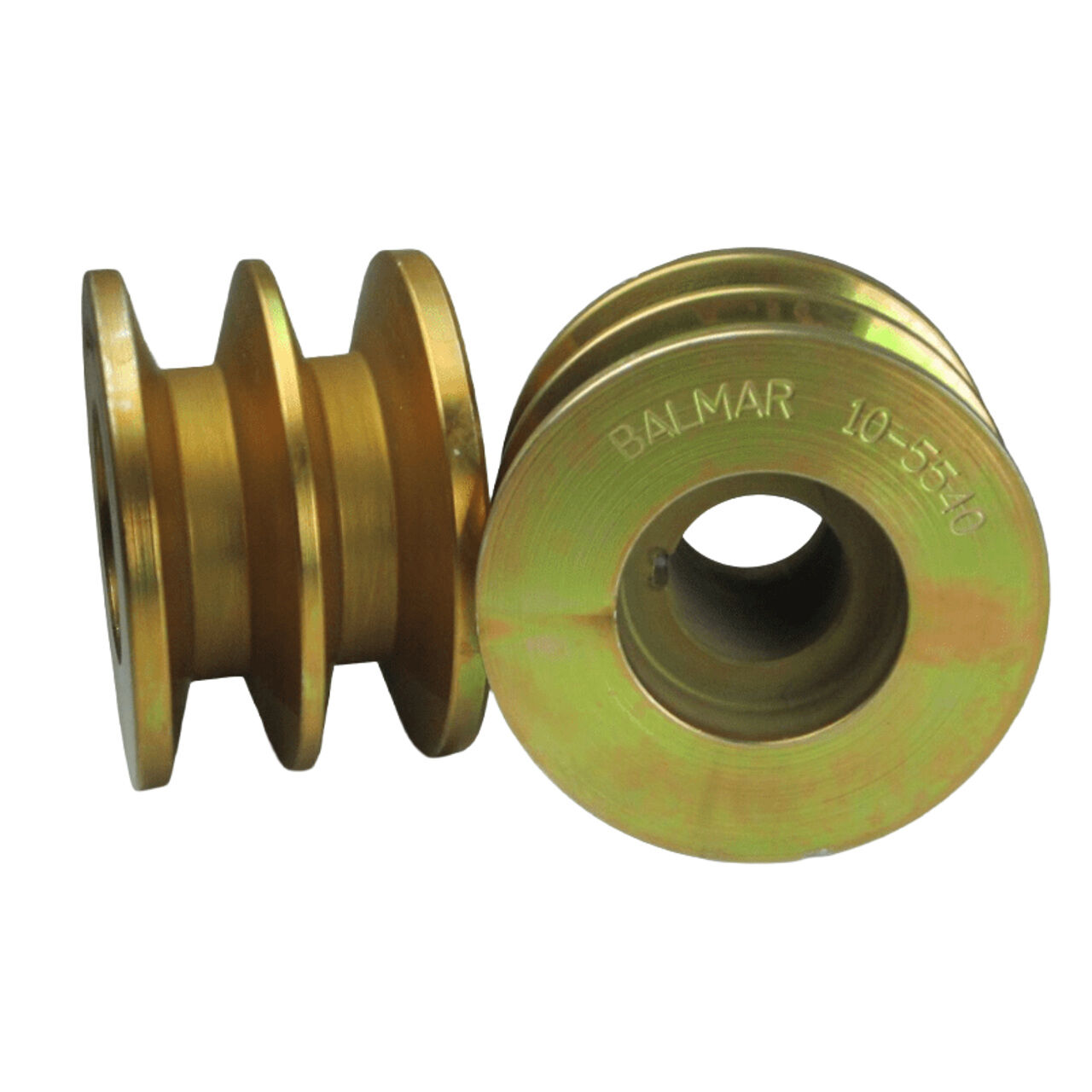

Dual V-Belt Pulley for Marine Alternator Drive Systems

The Balmar dual V-belt pulley is an alternator drive component for compatible marine charging system installations. Its dual-groove configuration allows the alternator load to be distributed across two V-belts, supporting effective power transfer between the engine and alternator. The pulley is suited to compatible Balmar alternators and marine charging systems requiring the specified shaft bore and belt configuration.

Key Features

  • Dual V-Belt Configuration: Accommodates two V-belts to distribute alternator drive loads across both belts.
  • Alternator Drive Application: Transfers mechanical power from the engine belt drive to a compatible alternator.
  • Marine Charging Compatibility: Suitable for compatible Balmar marine alternator charging systems.
  • Replacement or Installation Component: Can be used where the alternator and belt drive arrangement requires the corresponding dual-groove pulley.
  • Compatibility Consideration: Alternator shaft and existing belt configuration should be confirmed before installation.

The pulley supports dual-belt alternator drive configurations where additional belt contact is required for reliable power transmission. Confirm alternator shaft compatibility and belt alignment before installation.

Brand Balmar
Part Number 5540
Product Type Dual V-Belt Pulley
Pulley Diameter 2.7 inches (68.58 mm)
V-Belt Size 5/8 inch (15.88 mm)
Number of Grooves 2
Bore Diameter 0.875 inch (22.23 mm)
Application Marine Alternator Drive Systems
SKU BAL.5540
Model # 5540
UPC/EAN 676205500453
Brand Balmar
Shipping Weight 0.9100kg
Unit Of Measure ea
