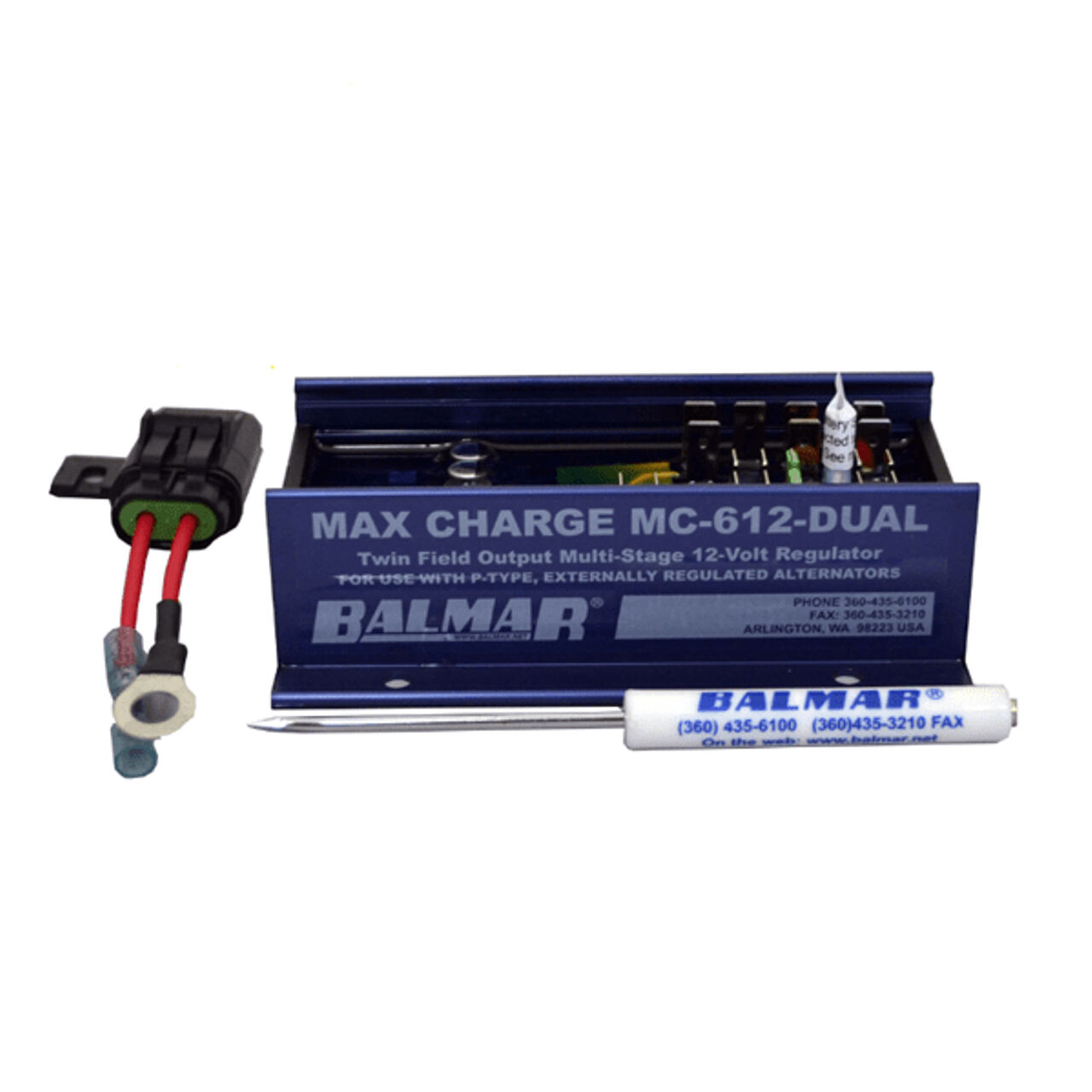

Dual-Alternator Multi-Stage Voltage Regulator for 12V Marine Charging Systems

Provides microprocessor-controlled multi-stage charging for single-engine marine installations using two alternators to charge the same large battery bank. Two independent field outputs, power inputs and system ground connections allow the regulator to control both alternators simultaneously, while selectable charging programs accommodate Deep Cycle Flooded, Standard Flooded, Gel, AGM, Spiral Wound AGM and LiFePO4 batteries. A universal default program is also provided for vessels using voltage-sensitive halogen equipment. Optional temperature sensing can monitor both alternators and the battery bank, with active regulation responding to changing temperatures to protect charging components. This regulator-only version does not include wiring harnesses or the fused battery sense pigtail.

Key Features

• Dual-Alternator Control: Controls two alternators in a single-engine installation charging the same large battery bank.
• Multi-Stage Charging: Uses start delay, soft ramp, bulk, calculated bulk, absorption, calculated absorption and float stages for controlled battery charging.
• Multiple Battery Programs: Supports Deep Cycle Flooded, Standard Flooded, Gel, AGM, Spiral Wound AGM and LiFePO4 battery profiles.
• Universal Default Program: Includes a factory default charging profile intended for vessels with voltage-sensitive halogen equipment.
• Dual Field Outputs: Provides separate regulated field outputs for primary and secondary alternators.
• Independent Power and Ground Inputs: Provides two power inputs and two system ground connections for dual-alternator installations.
• Temperature Monitoring Support: Accepts optional alternator and battery temperature sensors for active temperature-based charging control.
• Flexible Temperature Sensing: Supports monitoring of two alternators and one battery bank, or one alternator and two battery banks.
• Belt Load Manager: Allows alternator field output to be reduced when lower alternator loading is required.
• Tachometer Support: Provides stator input and regulated tachometer output connections for compatible electrical tachometers.
• System Alert Outputs: Supports auxiliary and dash-lamp indicators for operating conditions and charging system faults.
• Magnetic Programming: Uses a sealed magnetic reed switch for basic and advanced regulator programming.
• Regulator Only: Wiring harnesses and the fused battery sense pigtail are not included with this version.

Providing centralised control for two alternators, the regulator supports higher-capacity charging installations without requiring separate regulators for each charging source. Programmable charging profiles, load management and optional temperature sensing provide flexible control for demanding marine battery systems.
