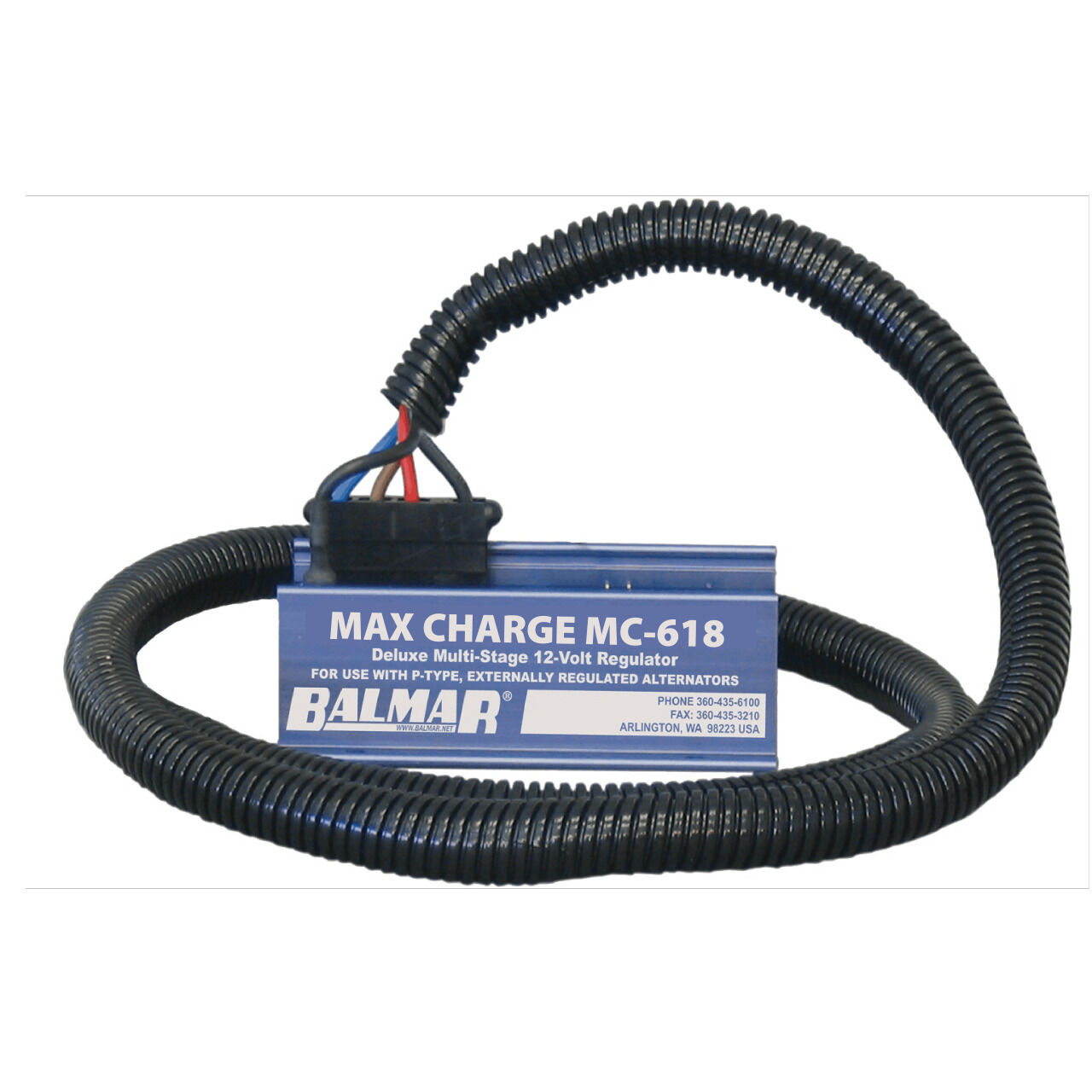

12V Multi-Stage Alternator Regulator with Wiring Harness for Marine Charging Systems

Provides advanced multi-stage charging control for 12 V marine alternator systems, managing alternator output to suit a range of onboard battery technologies. Nine selectable charging programs support flooded, AGM, gel, carbon foam and LiFePO4 battery configurations, while advanced programming enables charging parameters to be customised for specific battery requirements. Integration with the SG200 monitoring system enables charging information and basic setup functions to be accessed through a compatible colour display or optional Bluetooth smartphone interface. Alternator and battery temperature sensing support active charging protection, while Belt Load Manager functionality allows alternator output to be reduced where engine or drive-belt loading needs to be controlled. The included 54-inch wiring harness provides the primary connections required for compatible 12 V alternator installations.

Key Features

• Multi-Stage Charging: Controls alternator output through a programmable charging process to support effective battery charging and maintenance.
• Nine Selectable Programs: Provides preset charging profiles covering common marine battery technologies, including LiFePO4.
• 15 A Maximum Field Current: Supports compatible high-output externally regulated marine alternators with field requirements up to 15 A.
• Advanced Programming: Allows regulator parameters to be customised for battery manufacturer requirements and specific charging applications.
• SG200 Integration: Communicates with compatible SG200 battery monitoring equipment for charging data display and regulator setup.
• Smartphone Programming: Supports advanced configuration and monitoring through the optional Bluetooth smartphone interface.
• Temperature Sensing: Supports alternator and battery temperature sensors for temperature-based charging control and protection.
• Belt Load Manager: Allows alternator output to be reduced in 4% increments to manage engine, belt and alternator loading.
• Broad Alternator Compatibility: Supports compatible 6-Series, XT-Series and 9-Series externally regulated alternators.
• Twin-Engine Support: Can be used in compatible twin-engine charging installations with the Centerfielder II.
• Included Wiring Harness: Supplied with a 54-inch 12 V regulator wiring harness for compatible alternator installations.
• Clamshell Packaging: Supplied in clamshell retail packaging with the regulator and wiring harness.

Enabling detailed control over alternator-based charging, the regulator supports both conventional and lithium marine battery installations while providing monitoring and programming flexibility. Its included harness simplifies connection to compatible externally regulated 12 V alternators.
