The Blackhawk Omnidirectional Marine Antenna is designed for versatility, for use in a variety of outdoor environments, in low to high signal areas and mounted in a marine or caravan/rv environment.

With a high 7-10 dBi gain and supporting all 3G and 4G bands, this antenna will provide the perfect solution for voice and data applications where high gain outdoor antennas are required. Perfect for fixed wireless terminals, mobile broadband internet applications and smart repeater applications to improve mobile signal coverage.

Note: Cable sold separately.

Features:

  • 7 dBi gain across lower bands 698-960 MHz
  • 10 dBi gain across upper bands 1710-2700 MHz
  • Ruggedised construction for extreme conditions
  • White fibreglass construction
  • Comes with base marine mount choice of rail/deck/stainless steel deck
  • Short cable tail with a pre-fitted N Female connector
  • Ideal for long-range boating
  • Operate with all mobile carriers across Australia, New Zealand and Internationally within the wideband frequency ranges 698-960 and 1710-2700 MHz
  • Supplied with your choice of suitable marine antenna mount which allows the antenna to be mounted vertically regardless of the mounting surface used



ELECTRICAL SPECIFICATIONS

Frequency Range 698-960 MHz / 1710-2700 MHz
Input Impedance 50 Ω
Peak Gain 7 / 10 dBi
VSWR ≤3.0:1 / ≤2.0:1
Polarisation Vertical linear

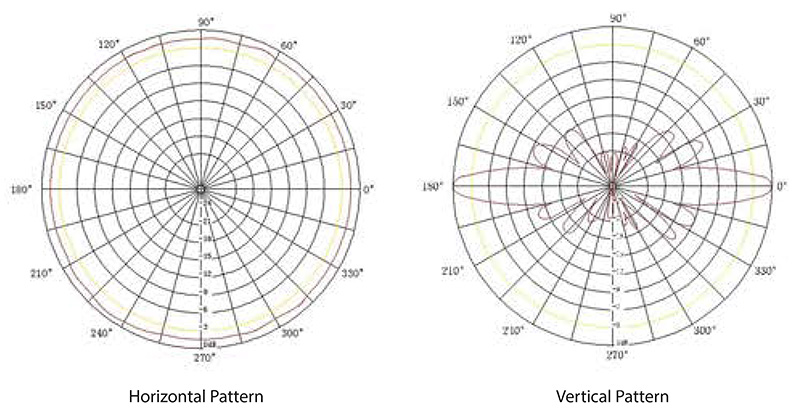

Horizontal Beamwidth 360° (omni-directional)
Vertical Beamwidth 20° / 7°
Maximum Input Power 50 W

ELECTRICAL SPECIFICATIONS
Frequency Range (MHz) 698-960 / 1710-2700 MHz
Input Impedance 50 Ω
VSWR ≤3.0:1
Gain 3 dBi
Polarisation Type Linear
Radiation Direction Omnidirectional
Maximum Input Power 10 W

MECHANICAL SPECIFICATIONS
Antenna Length 115 x 21 x 3 mm
Cable 3000 mm
Connect Type SMA Male
Mounting 3M Adhesive
Radome Color Black
Cable RG174
Suction 70 g



SKU PWT.ANT-BH-MARINE-01
Brand Blackhawk Antennas
Shipping Weight 1.2000kg
Shipping Width 1.100m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.005500000m3
