Blue Sea BusBar - 150A 10 Gang Common Busbar with Cover - 10x #8-32 Screws
150 Ampere Common BusBars - 10 x #8-32 Screw Terminal with Cover
- Availability:
- SKU: BSS.2300
- Manufacturer: Blue Sea
- MPN: 2300B
- Shipping Weight: 0.17kg
Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.
150 Ampere Common BusBars - 10 x #8-32 Screw Terminal with Cover

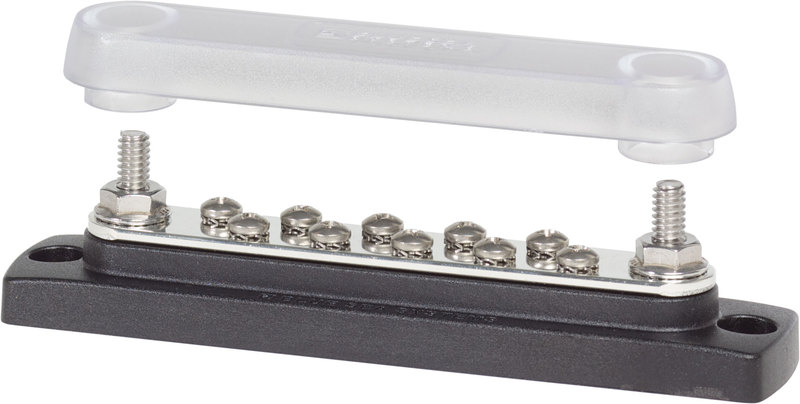

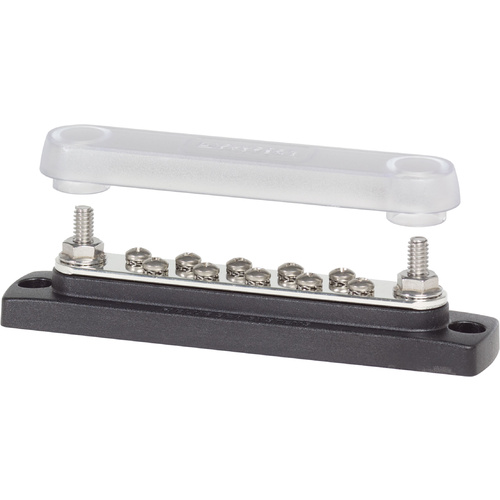

Common 150A BusBar - 10 Gang with Cover
The industry standard busbar for the collection of negative or AC ground circuits.
Insert-molded stainless steel stud eliminates need for securing nut and allows high torqueing for excellent electrical contact.
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 10 |
| Number of Terminal Studs | 2 |
| Terminal Type | 1/4" Stud #8-32 Screw |
| Continuous Rating | 130A AC 150A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Cover Material | Clear Polycarbonate |
| Screw Terminal Torque | 15 in-lb (1.69 Nm) |
| Stud Torque | 60 in-lb (6.78 Nm) |
| Weight | 0.37lb (0.17 kg) |
(BSS.2300)
