Blue Sea ST Circuit Breaker Block - 12 Position with Negative Bus

ST Circuit Breaker Block - 12 Position with Negative Bus

  • Availability:
  • SKU: BSS.5054
  • Manufacturer: Blue Sea
  • Shipping Weight: 0.68kg
$162.58 inc GST
$180.65
SAVE $18.07 (10%)


Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.

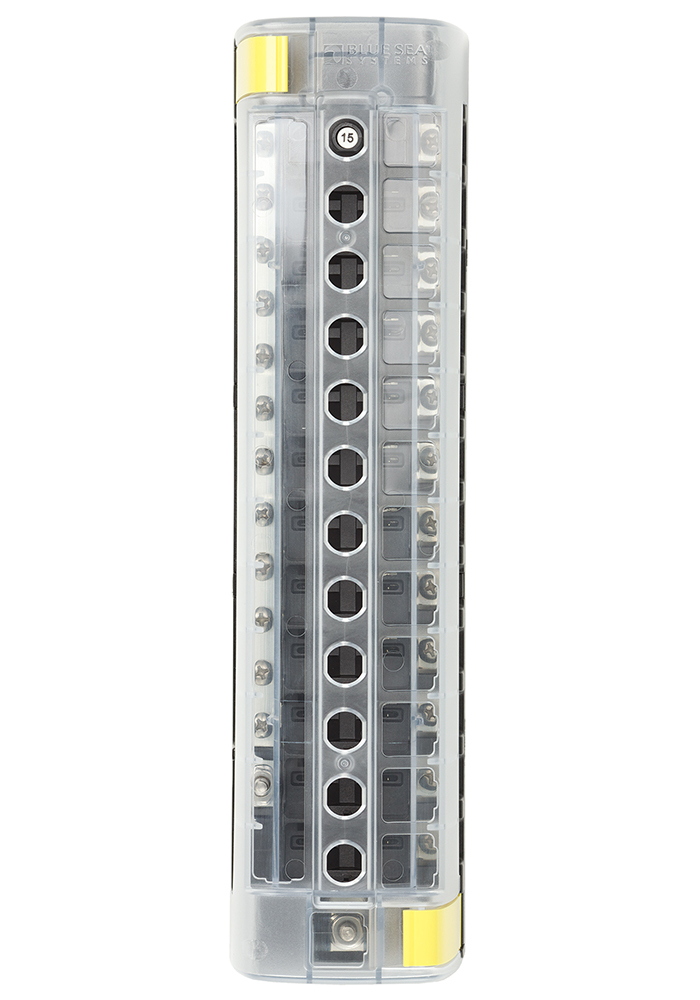

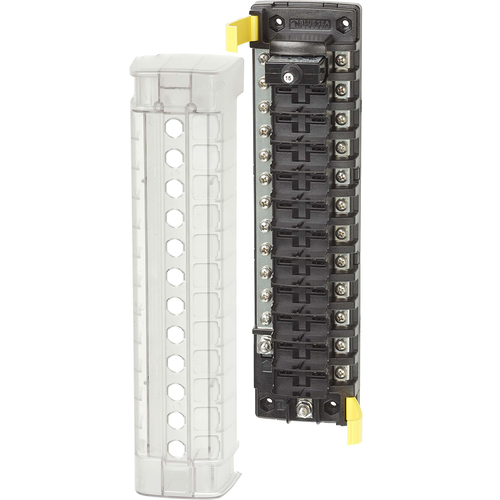

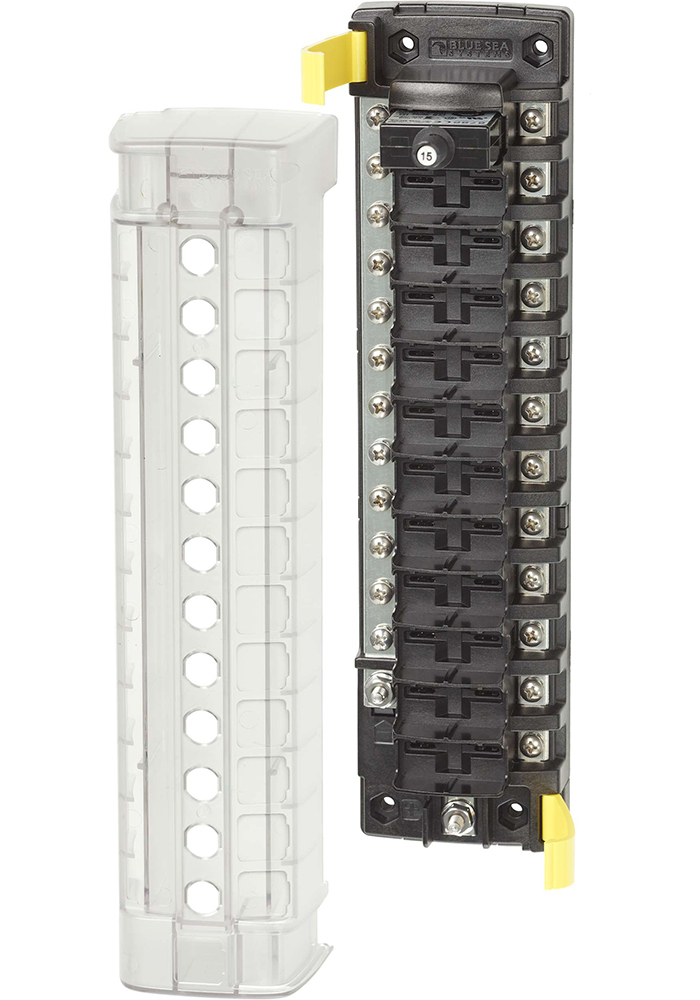

ST Circuit Breaker Block - 12 Position with Negative Bus

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.


ST CLB Circuit Breaker Block Features

  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover
  • Accepts square labels



*Note: Fuses sold separately



(BSS.5054)

Specifications
Circuits 12
Maximum Amperage 100A (per block)
32A (per circuit)
Maximum Voltage 32V DC
Mounting #8 Screw (M4) or #8 Nut
Negative Bus #10-32 Stud
Positive Bus #10-32 Stud
Source Common Source
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Mounting Centers 10.13in (257.3 mm)
Screw Terminal Type #8-32 Screws with Captive Star Lock Washer
Height 11.19in (284.23 mm)
Weight 1.50lb (0.68 kg)
