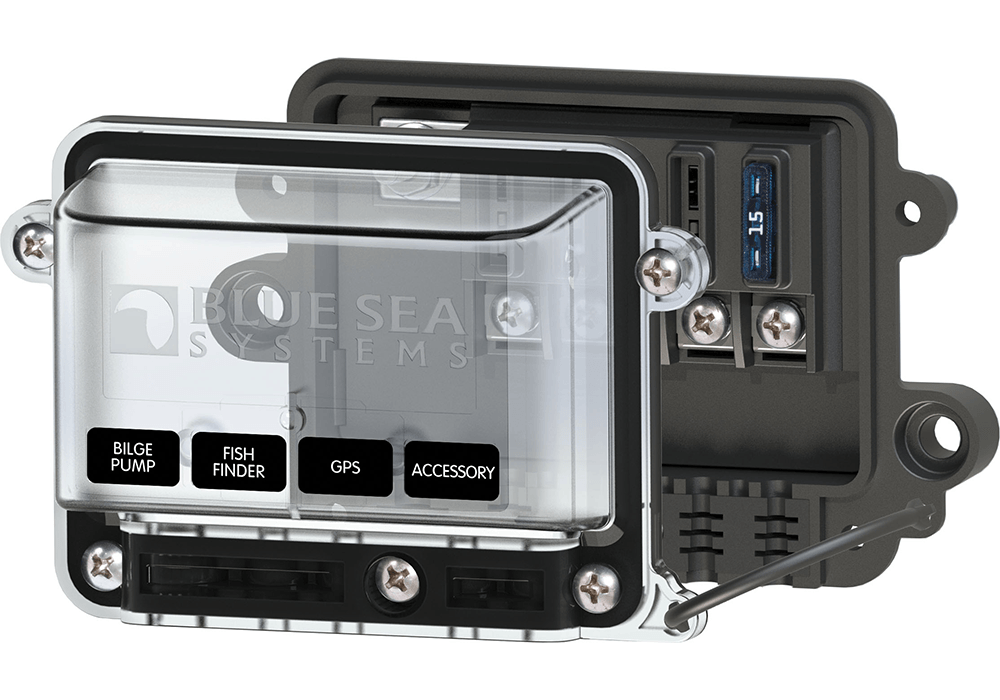

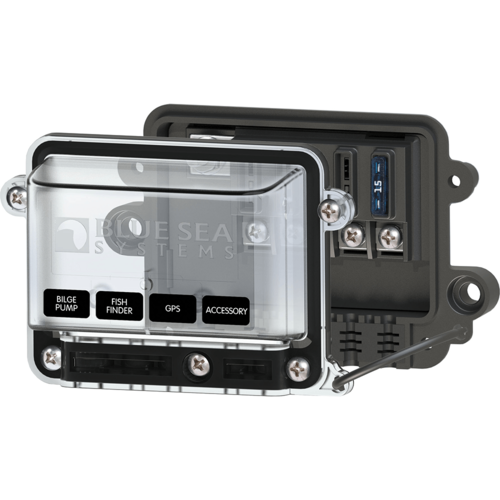

Blue Sea ST-Blade Water-Resistant Fuse Block (4 Block)
Provides water-resistant circuit protection for ATO/ATC fuses & circuit breakers in a compact footprint. The single side nesting design allows for wire entry from one side to maximise space.
SKU: BSS.5056 | MPN: 5056
SAVE $3.69 (5%)
In Stock
Ships today from our Southport warehouse if order placed by 1pm
The Blue Sea Systems’ new Water-Resistant ST-Blade Fuse Block is rated IP66 and can withstand water from heavy seas or projected in powerful jets, allowing for flexible installations anywhere on boats and vehicles. It is rated up to 80A continuous for the entire fuse block or up to 25A continuous per circuit. It can be used as a standalone fuse block, or nested with Blue Sea Systems’ new Water-Resistant BusBar which provides consolidated wire management when mounted side by side (reference nesting image). The taller cover on the fuse block accommodates installation of ATO/ATC fuses as well as Blue Sea Systems’ new line of push-to-reset ATO/ATC-style circuit breakers, which gives the benefit of having resettable circuit protection in a compact footprint.
- Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools
- Accepts a wide range of wire sizes
- Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required
- Accepts ATO and ATC fast-acting blade fuses
- Accepts ATO/ATC-Style Low Profile Circuit Breakers
- Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper busses and fuse clips
- Small format standard and custom labels available
- Spare fuse and fastener storage in cover
- Fuses sold separately
Specifications | |
---|---|
Amperage | 80A per block 25A per circuit |
Maximum Voltage | 32V DC |
Bus Material | Tin-Plated Copper C11000 |

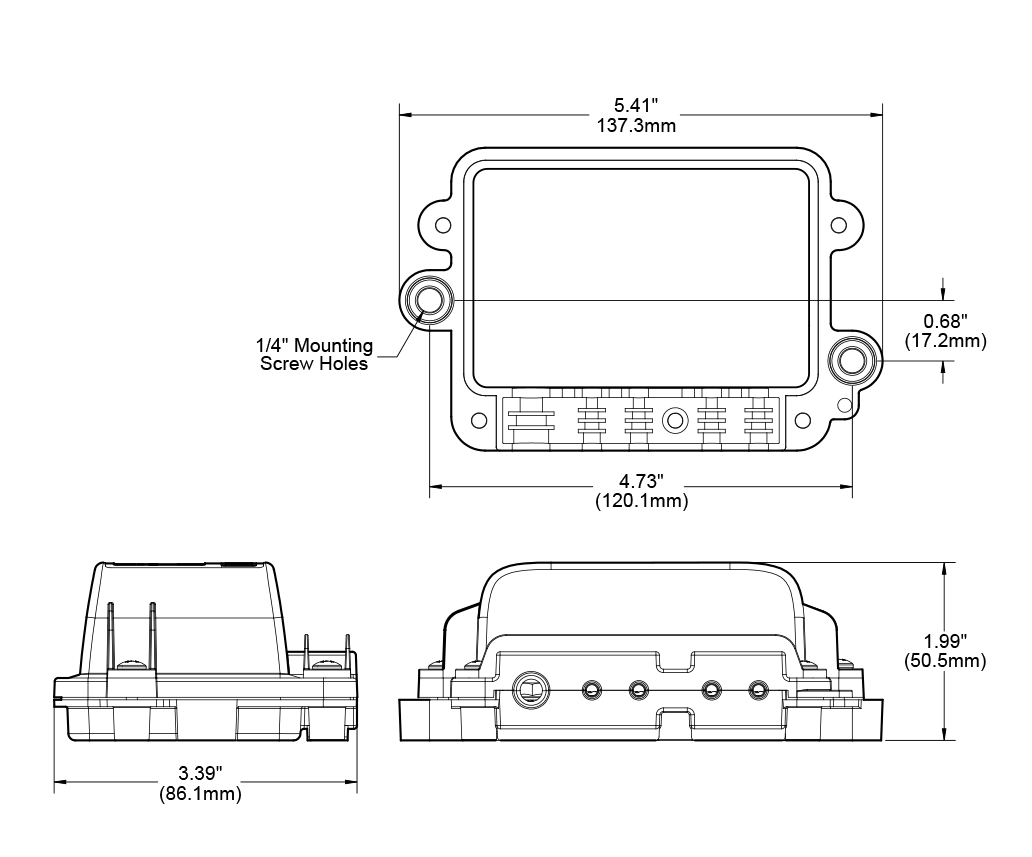

Mounting Holes | Clearance for 1/4" (6mm) screws |
Screw Terminal Type | #8-32 Screws with captive star lock washer |
Wire Size | (1) 8 AWG to 4 AWG - Input (4) 16 AWG to 10 AWG - Load |
SKU | BSS.5056 |
Model # | 5056 |
UPC/EAN | 632085050566 |
Brand | Blue Sea Systems |
Shipping Weight | 0.5000kg |
Unit Of Measure | ea |
