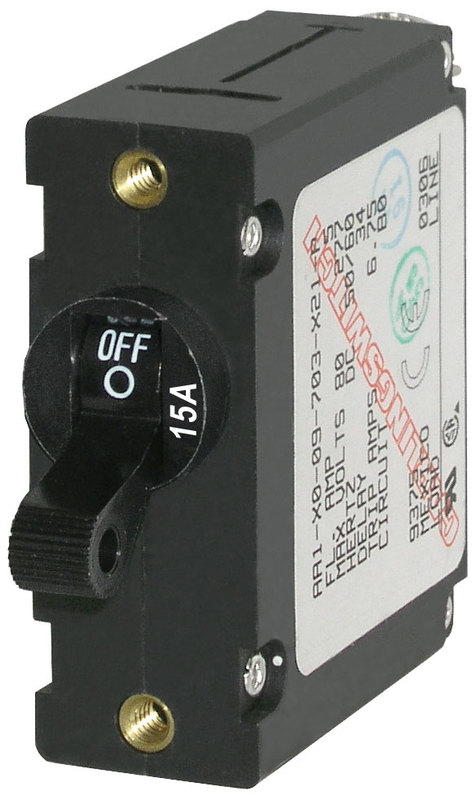

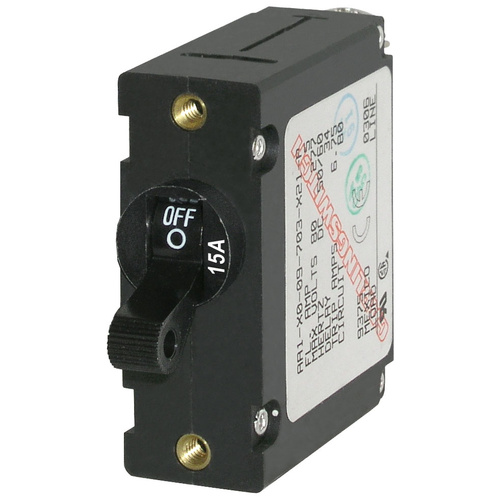

Blue Sea Circuit Breaker A-Series Toggle 1 Pole 15A Black
A-Series Toggle Single Pole - Circuit Breaker AA1 15A Black
-
Availability:
- SKU: BSS.7208
- Manufacturer: Blue Sea
- MPN: 7208B
- Barcode: 632085072087
- Shipping Weight: 0.08kg
Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.
A-Series Toggle Single Pole - Circuit Breaker AA1 15A Black
Features
- The industry standard circuit breaker for Blue Sea Systems electrical panels
- Meets American Boat and Yacht Council (ABYC) standards
- UL 1077 recognized TUV certified CE Marked for Europe and CSA certified for Canada
- Combines switching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
| Specifications | |
|---|---|
| Amperage | 15A AC 15A DC |
| Color | Black |
| Actuator Style | Toggle |
| Poles | 1 |
| Maximum Voltage | 240V AC 65V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
Interrupt Capacity  |
3000A @ 120V AC 1500A @ 240V AC [TUV] 3000A @ 240V AC [UL 1077] 7500A @ 65V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screws | #10-32 Stainless Steel |
| Weight | 0.17Lb (0.08 Kg) |
| Weight | 0.17lb (0.08 kg) |
Trip Delay Curve
(BSS.7208)
