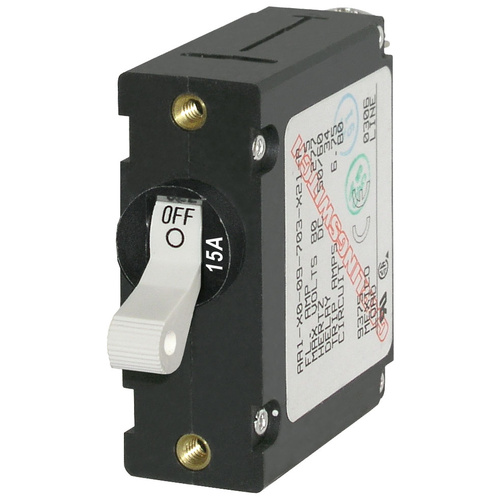

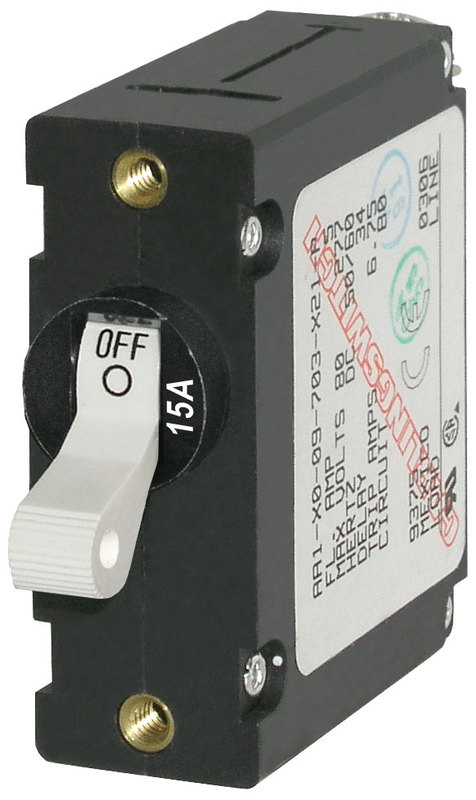

Features

  • The industry standard circuit breaker for Blue Sea Systems electrical panels
  • Meets American Boat and Yacht Council (ABYC) standards
  • UL 1077 recognized TUV certified CE Marked for Europe and CSA certified for Canada
  • Combines switching and circuit protection into a single device
  • "Trip Free" design cannot be held "ON" during fault current condition



Specifications
Amperage 15A AC
15A DC
Color White
Actuator Style  Toggle
Poles 1
Maximum Voltage 240V AC
65V DC
Circuit Breaker Type Magnetic Hydraulic - trip free
Interrupt Capacity 3000A @ 120V AC
1500A @ 240V AC [TUV]
3000A @ 240V AC [UL 1077]
7500A @ 65V DC
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Mounting Screw #6-32 Stainless Steel
Mounting Screw Torque 6 in-lb (0.68 Nm)
Screw Terminal Torque 14 in-lb (1.58 Nm)
Switching Cycles 10000
Terminal Screws #10-32 Stainless Steel
Weight 0.17Lb (0.08 Kg)
Weight 0.17lb (0.08 kg)



Trip Delay Curve

SKU BSS.7210
Model # 7210B
UPC/EAN 632085072100
Brand Blue Sea Systems
Shipping Weight 0.0800kg
