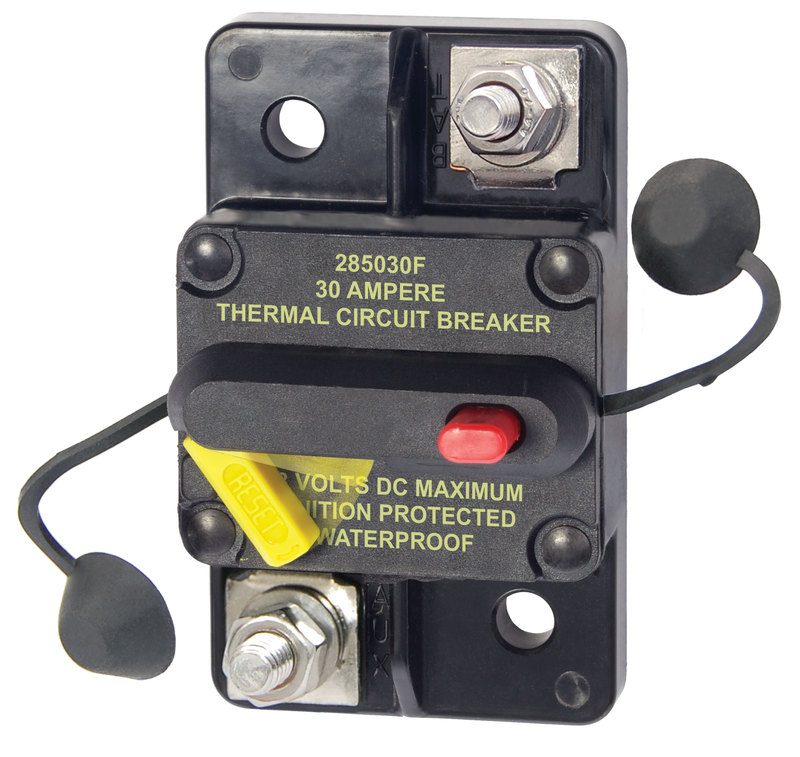

Blue Sea 285 Series Circuit Breaker - Surface Mount 30A
285-Series Thermal Circuit Breaker Surface Mount - 285-Series Circuit Breaker Surface Mount 30A
- Availability:
- SKU: BSS.7181
- Manufacturer: Blue Sea
- MPN:
- Barcode: 632085071813
- Shipping Weight: 0.23kg
Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.
285-Series Thermal Circuit Breaker Surface Mount - 285-Series Circuit Breaker Surface Mount 30A
These Blue Sea / Bussman Thermal circuit breakers provide medium duty circuit protection for loads when switching and circuit protection are both required.
- Drop-in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit*
- "Trip Free" - cannot be held closed after trip
* Do not use as a switch where high inrush currents are expected.
| Specifications | |
|---|---|
| Amperage | 30A |
| Maximum Voltage | 48V DC |
| Mounting | Surface Mount |
| Circuit Breaker Type | Thermally responsive Bi-metal blade |
| Terminal Stud | M6 (accepts 1/4" Ring Terminal) |
| Terminal Stud Torque | 5.65 Nm (50 in-lb) |
Interrupt Capacity  |
3000A @ 48V |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Circuit Breaker Class | Type III - switchable/manual reset - trip free |
| Weight | 0.23 kg (0.50lb) |
Trip Delay Curve for 285 Series Circuit Breakers
(BSS.7181)
