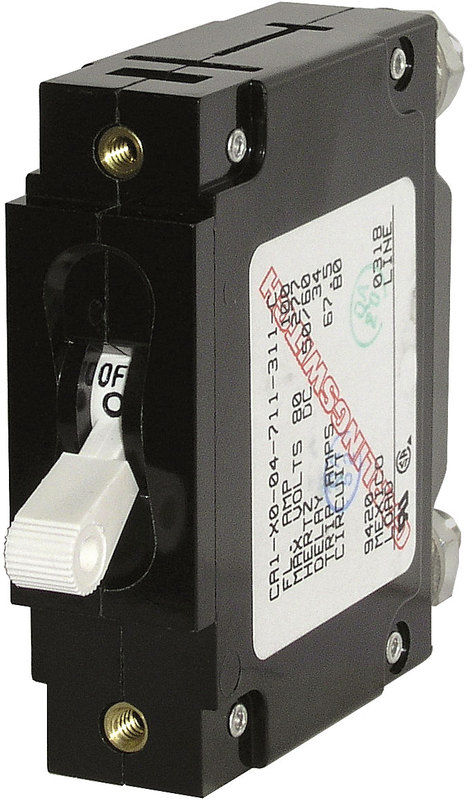

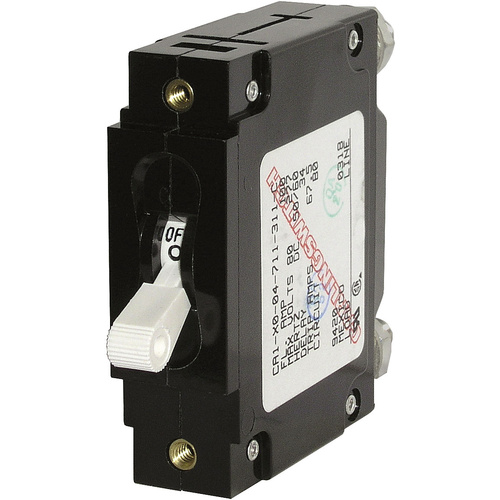

Blue Sea Circuit Breaker C-Series Toggle 1 Pole 100A White

C-Series Toggle Single Pole - Circuit Breaker CA1 100A White

  • Availability:
  • SKU: BSS.7250
  • Manufacturer: Blue Sea
  • MPN: 7250B
  • Barcode: 632085072506
  • Shipping Weight: 0.11kg
$54.20 inc GST





Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.

C-Series Toggle Single Pole - Circuit Breaker CA1 100A White

Features

  • Provides overcurrent protection for inverters bow thrusters and windlasses
  • Combines switching and circuit protection into a single device
  • "Trip Free" - cannot be held closed after trip



Specifications
Amperage 100A AC
100A DC
Color White
Actuator Style Toggle
Poles 1
Maximum Voltage 240V AC
65V DC
Circuit Breaker Type Magnetic Hydraulic - trip free
Terminal Stud 1/4-20 Tin-Plated Brass
Terminal Stud Torque 35 in-lb (3.95 Nm)
Interrupt Capacity 5000A @ 125V AC
5000A @ 240V AC
10000A @ 80V DC
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Mounting Screw #6-32 Stainless Steel
Mounting Screw Torque 6 in-lb (0.68 Nm)
Switching Cycles 10000
Weight 0.36lb (0.16 kg)



Trip Delay Curve



(BSS.7250)
