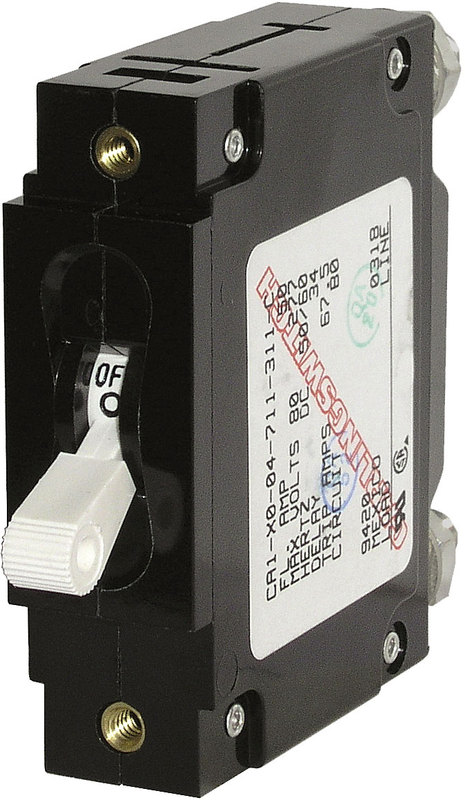

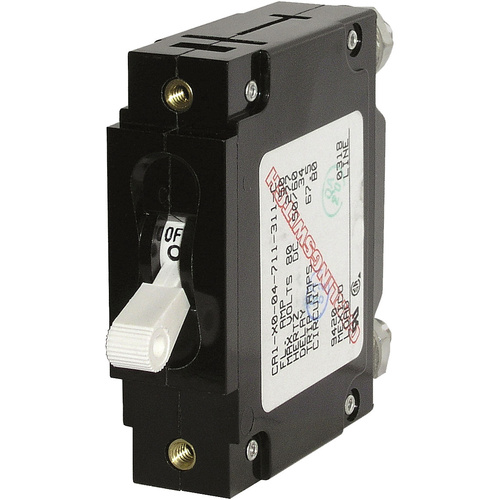

Blue Sea Circuit Breaker C-Series Toggle 1 Pole 15A White
C-Series Toggle Single Pole - Circuit Breaker CA1 15A White
-
Availability:
- SKU: BSS.7352
- Manufacturer: Blue Sea
- MPN: 7352B
- Barcode: 632085073527
- Shipping Weight: 0.11kg
Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.
C-Series Toggle Single Pole - Circuit Breaker CA1 15A White
Features
- Provides overcurrent protection for inverters bow thrusters and windlasses
- Combines switching and circuit protection into a single device
- "Trip Free" - cannot be held closed after trip
| Specifications | |
|---|---|
| Amperage | 15A AC 15A DC |
| Color | White |
Actuator Style  |
Toggle |
| Poles | 1 |
| Maximum Voltage | 240V AC 80V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Terminal Stud | 1/4-20 Tin-Plated Brass |
| Terminal Stud Torque | 35 in-lb (3.95 Nm) |
| Interrupt Capacity |
5000A @ 125V AC 5000A @ 240V AC 10000A @ 80V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 0.36lb (0.11 kg) |
Trip Delay Curve
(BSS.7352)
