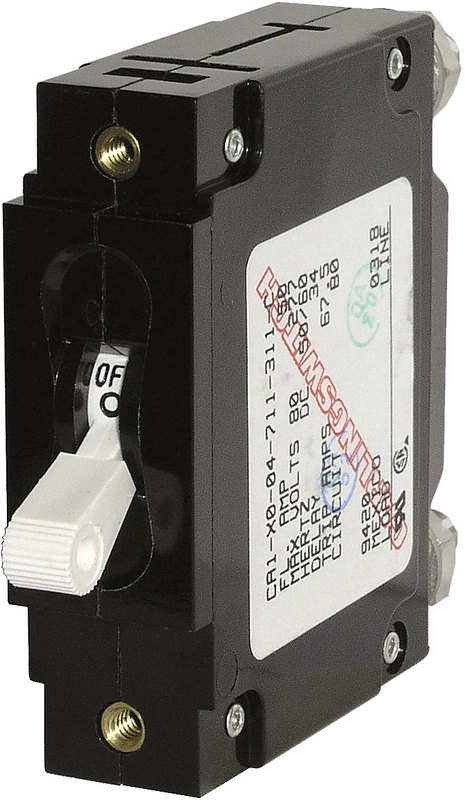

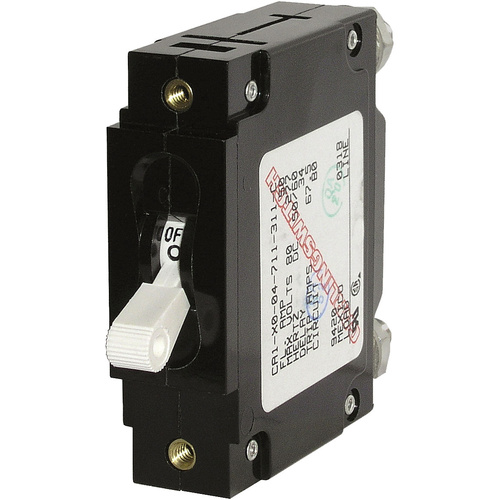

Features

  • Provides overcurrent protection for inverters bow thrusters and windlasses
  • Combines switching and circuit protection into a single device
  • "Trip Free" - cannot be held closed after trip



Specifications
Amperage 80A AC
80A DC
Color White
Actuator Style Toggle
Poles 1
Maximum Voltage 240V AC
65V DC
Circuit Breaker Type Magnetic Hydraulic - trip free
Terminal Stud 1/4-20 Tin-Plated Brass
Terminal Stud Torque 35 in-lb (3.95 Nm)
Interrupt Capacity 5000A @ 125V AC
5000A @ 240V AC
10000A @ 80V DC
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Mounting Screw #6-32 Stainless Steel
Mounting Screw Torque 6 in-lb (0.68 Nm)
Switching Cycles 10000
Weight 0.36lb (0.16 kg)



Trip Delay Curve



SKU BSS.7248
Model # 7248B
Barcode # 632085072483
Brand Blue Sea
Shipping Weight 0.1600kg
