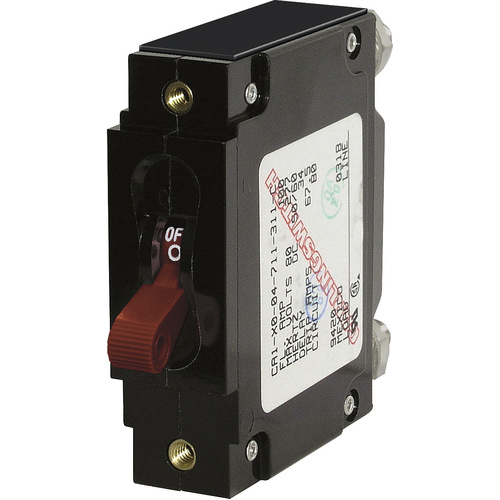

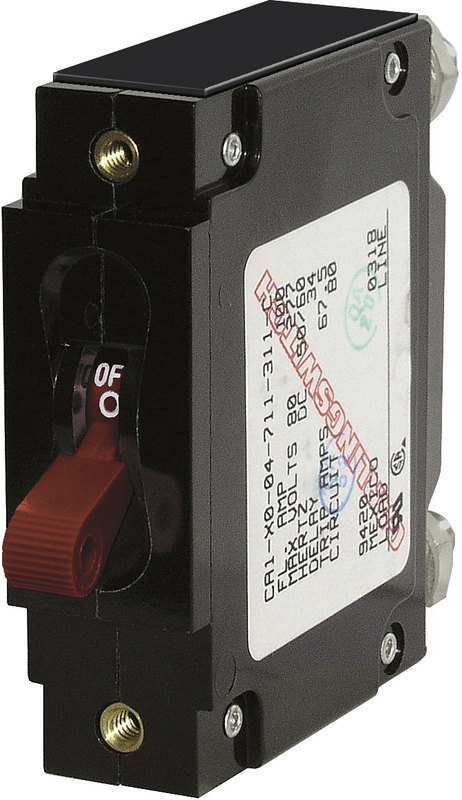

Blue Sea Circuit Breaker C-Series Toggle 1 Pole 100A Red

C-Series Toggle Single Pole - Circuit Breaker CA1 100A Red IP

  • Availability:
  • SKU: BSS.7250i
  • Manufacturer: Blue Sea
  • MPN: 7250IB
  • Barcode: 632085072506
  • Shipping Weight: 0.11kg
$59.60 inc GST


All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.

C-Series Toggle Single Pole - Circuit Breaker CA1 100A Red IP


  • Provides overcurrent protection for inverters bow thrusters and windlasses
  • Combines switching and circuit protection into a single device
  • "Trip Free" - cannot be held closed after trip


Amperage 100A AC
100A DC
Color Red
Actuator Style Toggle
Poles 1
Maximum Voltage 240V AC
80V DC
Circuit Breaker Type Magnetic Hydraulic - trip free
Terminal Stud 1/4-20 Tin-Plated Brass
Terminal Stud Torque 35 in-lb (3.95 Nm)
Interrupt Capacity 5000A @ 125V AC
5000A @ 240V AC
10000A @ 80V DC
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Mounting Screw #6-32 Stainless Steel
Mounting Screw Torque 6 in-lb (0.68 Nm)
Switching Cycles 10000
Weight 0.36lb (0.16 kg)


Trip Delay Curve
