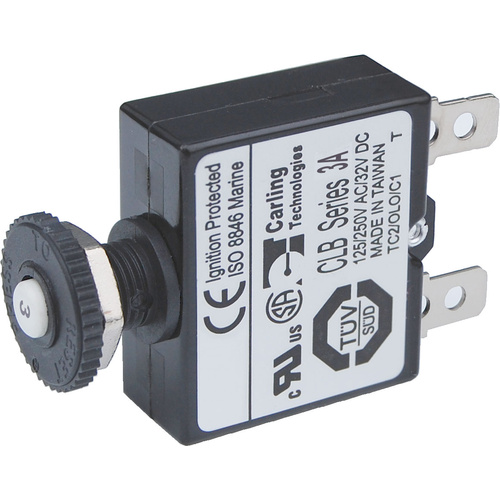

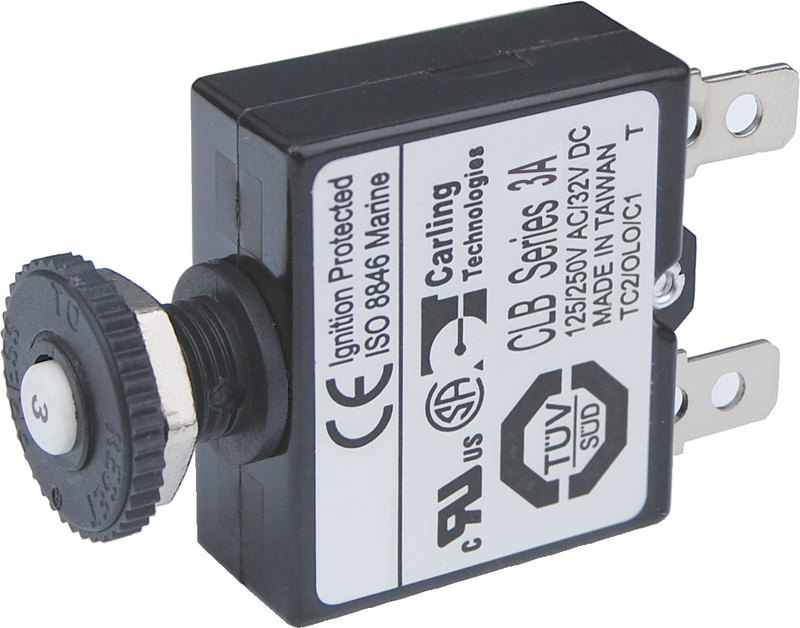

Blue Sea Circuit Breaker Push Button Quick Connect 3A

Push Button Reset-Only Thermal Circuit Breakers - Circuit Breaker Push Button 3 Amp with Quick Connect Terminals

  • Availability:
  • SKU: BSS.7050
  • Manufacturer: Blue Sea
  • MPN: 7050B
  • Barcode: 632085070502
  • Shipping Weight: 0.03kg
$6.70 inc GST





Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.

Push Button Reset-Only Thermal Circuit Breakers - Circuit Breaker Push Button 3 Amp with Quick Connect Terminals

Push Button Reset Only Quick Connect Circuit Breaker Features:

  • Branch circuit breakers (can also be used for 24-hour circuit protection)
  • Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
  • Compact design enables high-density circuit protection configurations
  • Push-to-reset operation
  • “Trip Free” design cannot be held “ON” during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discolouration and cracking



Specifications
Amperage 3A
Maximum Voltage 32V DC
Mounting Panel Mount 3/8-27 UNS
Circuit Breaker Type Thermal trip, manual push-button reset only
Terminal Type 1/4 Male Quick Connect
Interrupt Capacity 3000A @ 14.7V
2500A @ 28V
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Screw Terminal Torque 6 in-lb (0.68 Nm)
Weight 0.06Lb (0.03 Kg)
Weight 0.06lb (0.03 kg)



Trip Delay Curve



(BSS.7050)
