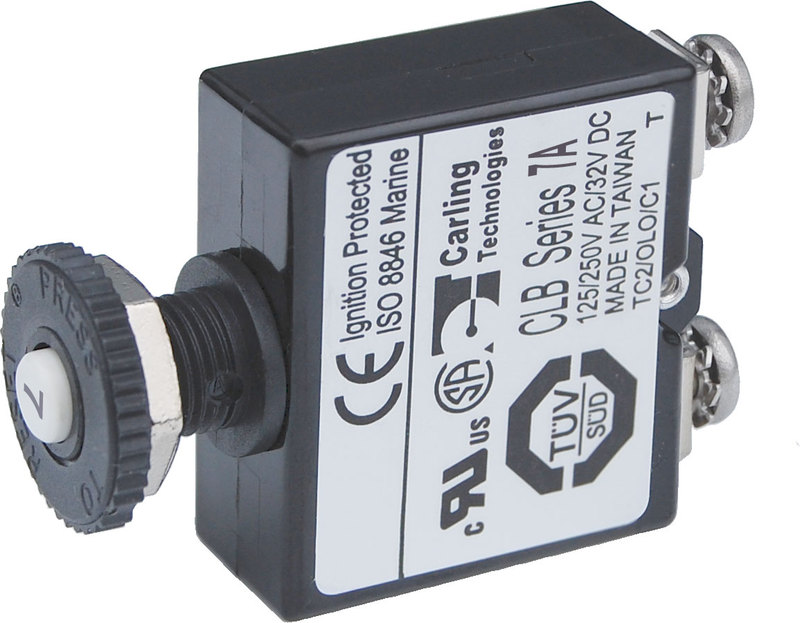

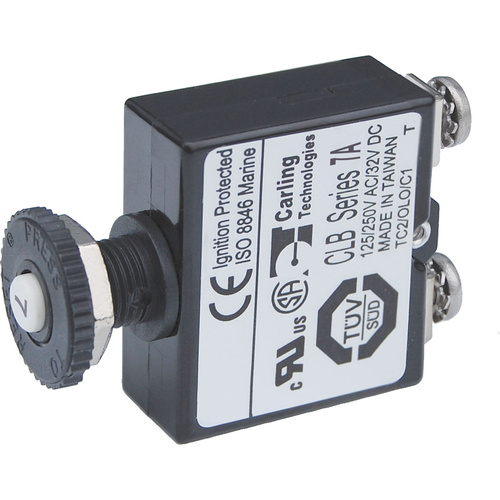

Blue Sea Circuit Breaker Push Button Screw Terminal 7A
Push Button Reset-Only Thermal Circuit Breakers - Circuit Breaker Push Button 7 Amp with Screw Terminals
- Availability:
- SKU: BSS.2131
- Manufacturer: Blue Sea
- MPN: 2131B
- Barcode: 632085021313
- Shipping Weight: 0.04kg
Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.
Push Button Reset-Only Thermal Circuit Breakers - Circuit Breaker Push Button 7 Amp with Screw Terminals
Push Button Reset Only Screw Terminal Circuit Breaker Features:
- Branch circuit breakers (can also be used for 24-hour circuit protection)
- Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
- Compact design enables high-density circuit protection configurations
- Push-to-reset operation
- “Trip Free” design cannot be held “ON” during fault current condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discolouration and cracking
| Specifications | |
|---|---|
| Amperage | 7A |
| Maximum Voltage | 32V DC |
| Mounting | Panel Mount 3/8-27 UNS |
| Circuit Breaker Type | Thermal trip, manual push-button reset only |
| Terminal Type | #8 Screw |
Interrupt Capacity  |
3000A @ 14.7V 2500A @ 28V |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
| Screw Terminal Torque | 6 in-lb (0.68 Nm) |
| Weight | 0.06Lb (0.03 Kg) |
| Weight | 0.09lb (0.04 kg) |
Trip Delay Curve
(BSS.2131)
