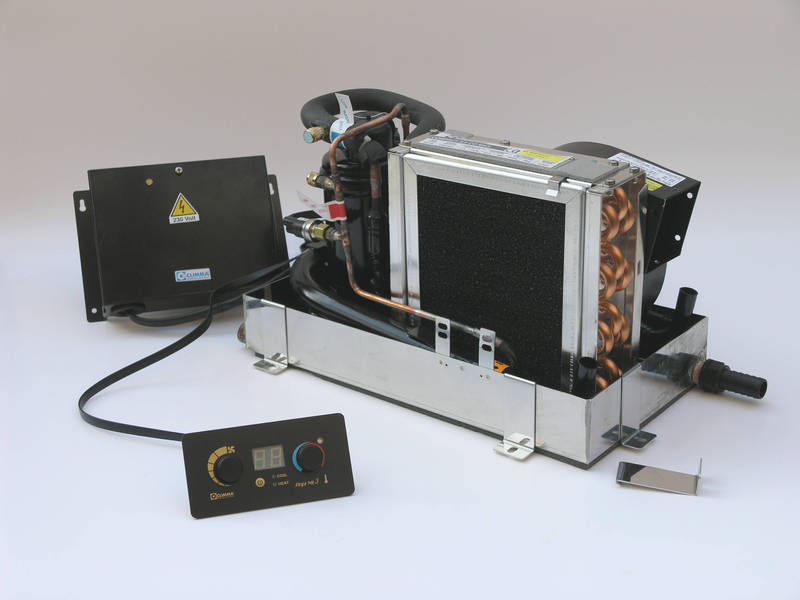

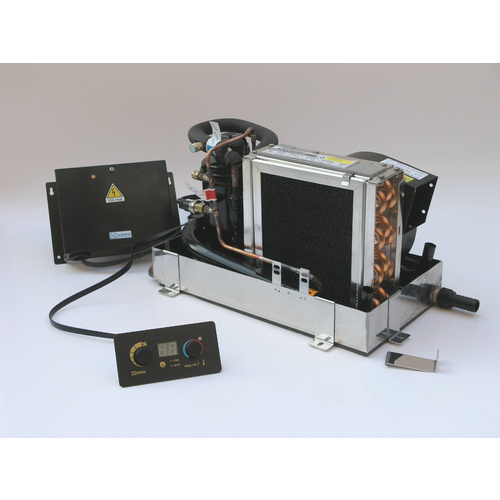

Compact 3.5 Rc 230/1/50 Mk3

3,500 BTU 240 volt AC reverse cycle marine airconditioner.

Climma Compact MK3 independent air-conditioners are perfect for cooling single or adjacent cabins. All Compact MK3 have been specifically designed for nautic applications, with water cooled condensers, a very compact design, quiet and powerful blowers and an ecologic refrigerant, they are supplied as standard with the reverce cycle option.

Whats in the box?

• Compact 3.5 RC Air Conditioner
• Climma Compact Control Box

Required for a complete installation:

• Climma Control Panel MK3
• Plenums
• Insulated ducts
• Intake air grills
• Delivery air grills
• Sea water pump
• Hoses for the sea water circuit
• Sea water intake
• Sea water exit
• Water filter
• Condensate drain hoses and outlets



























Technical Specifications:
Capacity Cool Mode: 3500 BTU/h
Capacity Heat Mode: 3500 BTU/h
Weight: 12 Kg
Duct Size: 100 mm
Max Air Flow: 230 mc/h
Size: 281x204x227 mm

Power Consumption:
Cool Mode - Run: 1.6 A
Cool Mode - Start: 5.2 A
Heat Mode - Run: 1.8 A
Heat Mode - Start: 5.2 A
