Reliable industrial networking for connected assets in demanding remote environments

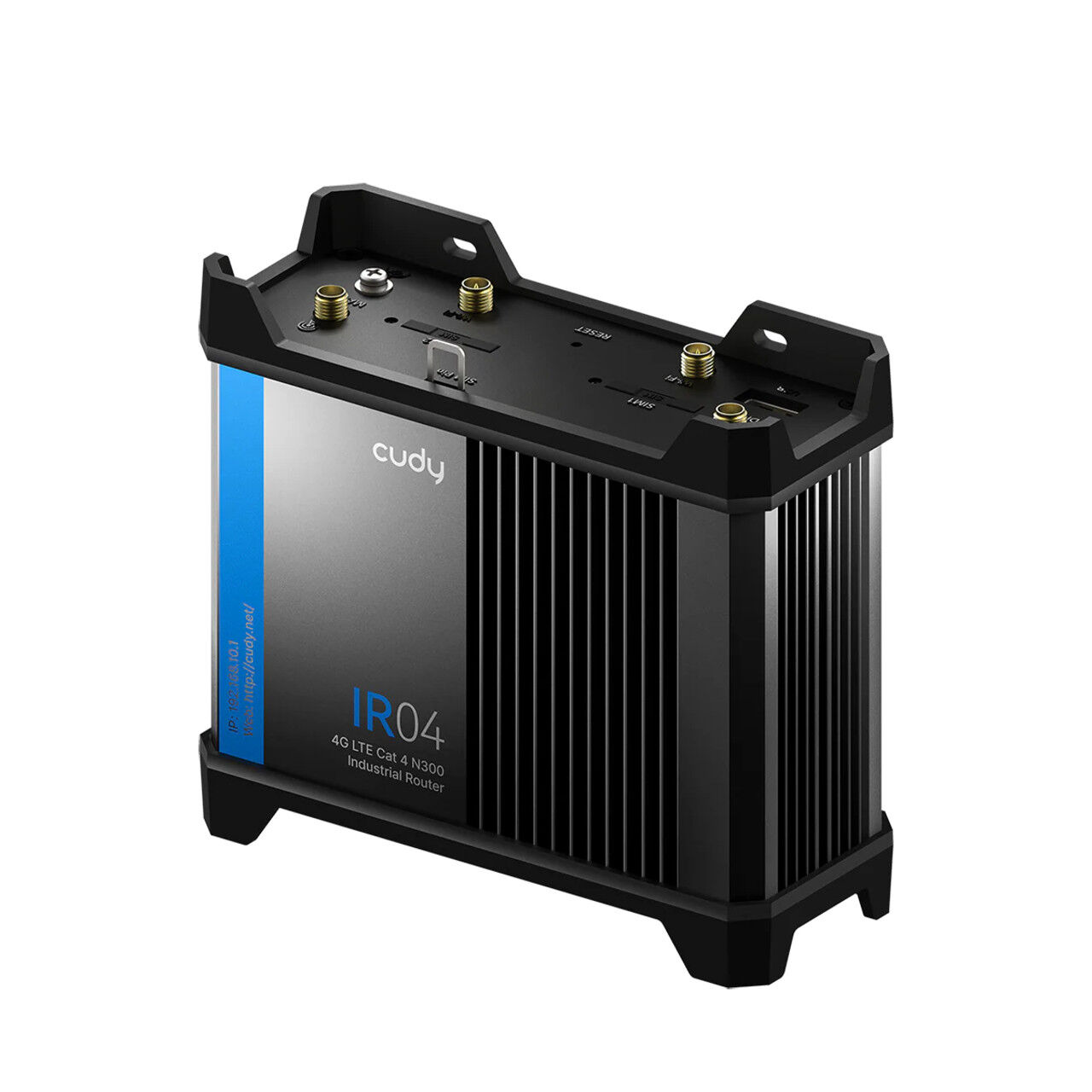

The Cudy IR04 is a rugged industrial router designed to deliver dependable 4G LTE Cat. 4 connectivity in transport, automation, utility, retail, and remote infrastructure applications. It combines dual SIM support, 300 Mbps 2.4 GHz Wi-Fi, four shielded Fast Ethernet ports, and extensive interface options including RS232, RS422, RS485, USB, and digital I/O, making it well suited to equipment integration and field communications. Its hardened aluminium housing, IP30-rated construction, wide -40°C to 75°C operating range, and flexible power options including 802.3at/af PoE, passive PoE, DC input, and 4-pin ignition-sensing power make it a practical choice for harsh and mobile deployments.

Key Features

• Industrial 4G LTE Connectivity: Supports LTE Cat. 4 with download speeds up to 150 Mbps and upload speeds up to 50 Mbps, providing reliable mobile broadband for fixed and mobile industrial deployments.
• Dual SIM Redundancy: Two Mini SIM slots help improve service continuity and deployment flexibility by allowing carrier selection or failover configuration.
• Integrated 300 Mbps Wi-Fi: Delivers 2.4 GHz Wi-Fi 4 wireless networking with 2×2 MIMO for local device access and wireless backhaul flexibility.
• Flexible Power Input Options: Supports 802.3at/af PoE on the WAN/LAN port, passive PoE on LAN ports, 11 to 57 V DC input, and a 4-pin DC connector with ignition sensing for vehicle and equipment installations.
• Industrial Serial and I/O Interfaces: Includes DB9 and 6-pin serial connectivity for RS232, RS422, and RS485, along with a 10-pin I/O block supporting digital input, isolated input, open collector output, relay contact, and analogue input.
• Rugged Environmental Design: Built with an aluminium alloy enclosure, IP30 protection, IEC 61373 shock and vibration compliance, and an operating temperature range from -40°C to 75°C for demanding conditions.
• Four Shielded Ethernet Ports: Provides one configurable WAN/LAN port and three LAN ports, all in shielded RJ45 format for robust wired connectivity in industrial environments.
• Advanced Networking Features: Supports failover, DHCP, IPv4/IPv6, VPN options including WireGuard, OpenVPN, ZeroTier, firewall functions, port forwarding, and remote management features.
• DIN-Rail and Wall Mount Installation: Designed for industrial control panels, cabinets, vehicles, and infrastructure sites with both DIN-rail and wall-mount deployment options.
• Broad Application Suitability: Suitable for transportation, manufacturing, power grid management, retail enterprise, and other harsh-environment connectivity applications.

This router is a strong fit for industrial users needing resilient cellular networking, versatile interfaces, and dependable operation in challenging environments.
