Dual-channel AIS receiver with USB and NMEA for marine navigation

This compact AIS receiver delivers reliable dual-channel monitoring for enhanced marine safety and situational awareness. It offers flexible connectivity via USB for direct PC integration and NMEA 0183 for chart plotters. A built-in multiplexer allows GPS and AIS data to be combined into a single high-speed output, simplifying setups with limited input ports. Housed in a rugged, splash-proof enclosure, it connects to either a dedicated AIS antenna or a shared VHF antenna using a splitter, providing a versatile solution for a wide range of vessels.

Key Features

  • Dual-channel AIS reception: Continuously receives both AIS frequencies to track all nearby AIS-equipped vessels.
  • USB and NMEA 0183 outputs: Supports direct PC connection and integration with chart plotters for flexible navigation options.
  • Built-in NMEA multiplexer: Merges AIS and GPS data into a single output stream for simplified device connectivity.
  • Plug-and-play USB interface: Installs quickly on major operating systems without requiring additional drivers.
  • Compact IP54-rated enclosure: Protects internal components from dust and water splashes in marine environments.

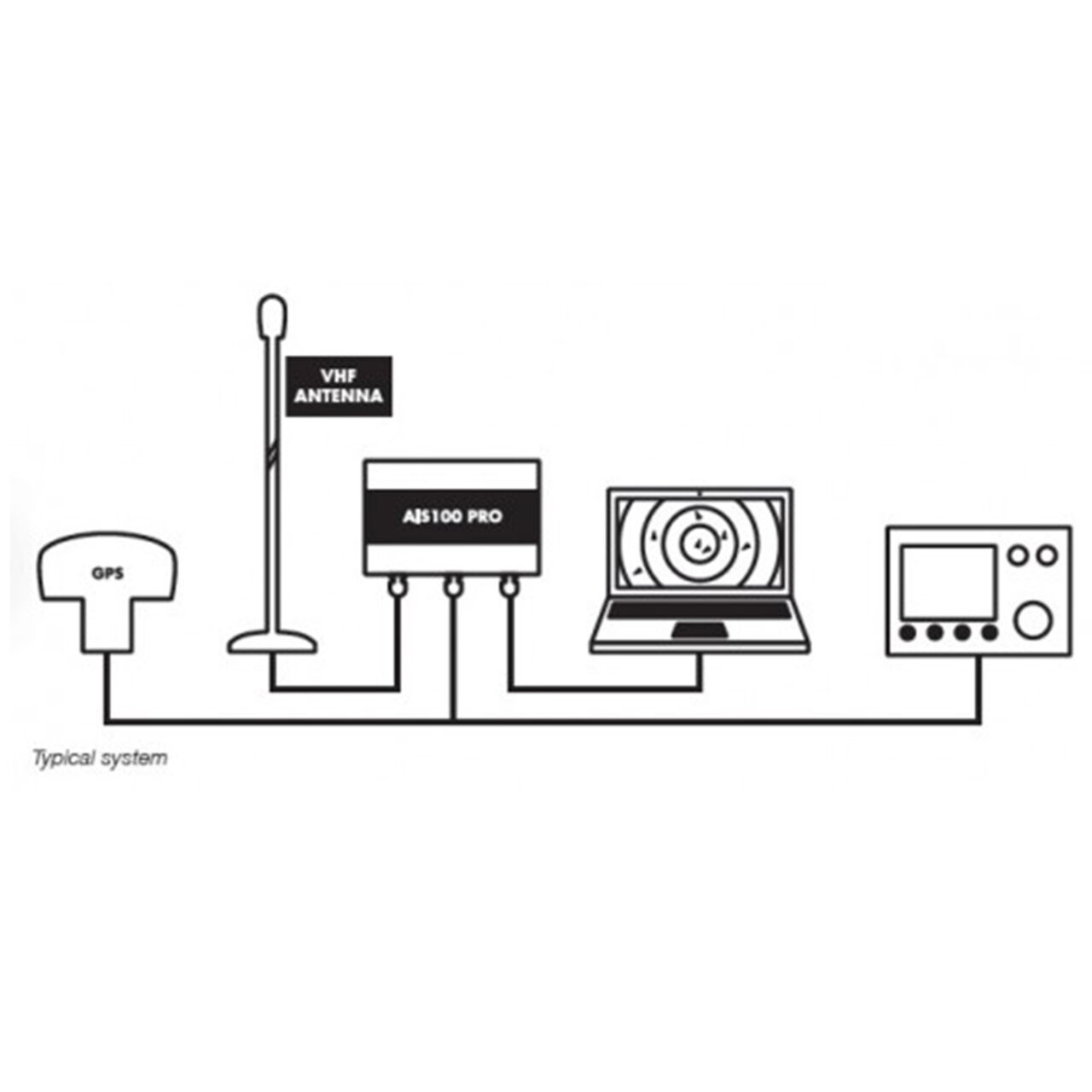

  • Versatile antenna options: Connects to existing VHF antennas via splitter or a dedicated AIS antenna for flexible installation.

Dependable and adaptable, this receiver enhances vessel tracking and integrates easily into new or existing systems.

General
Receiver Type Dual-channel AIS
Outputs USB and NMEA 0183
Multiplexer Built-in NMEA 0183 multiplexer
Enclosure Rating IP54
Dimensions 180 × 145 × 40 mm
Weight 224 g
Performance
NMEA Baud Rate 38,400 (output), 4,800 (input)
USB Compatibility Windows XP/Vista/7/8/10, macOS, Linux
Typical Range Up to 30 nautical miles
Installation
Antenna Connection BNC connector for VHF or AIS antenna
Power Supply 12V DC
Mounting Integral mounting brackets included
Cables Included 0.75 m Power & NMEA 0183 data cable, 0.75 m USB cable
SKU DIG.ZDIGAIS100P
Model # ZDIGAIS100P
Brand Digital Yacht
Shipping Weight 0.2000kg
Shipping Width 0.190m
Shipping Height 0.050m
Shipping Length 0.160m
Shipping Cubic 0.001520000m3
Unit Of Measure each
