Professional Class A AIS Transponder with Integrated 5" Colour Display

Improve vessel awareness and meet international AIS carriage requirements with the Digital Deep Sea CLA2000 Class A AIS Transponder. Designed for SOLAS vessels, workboats, rescue services, inland waterways and commercial marine applications, the CLA2000 combines advanced Software Defined Radio (SDR) AIS technology with a fully integrated 5-inch high-resolution colour display. Featuring built-in GPS, Wi-Fi, NMEA 2000 and multiple NMEA 0183 interfaces, it provides reliable AIS transmission, real-time target tracking, optional C-MAP MAX charting and seamless integration with modern bridge electronics.

Key Features

• Globally Approved Class A AIS Transponder: Certified for worldwide operation with SOLAS, IMO, USCG, FCC, EU, CCNR, CCS, TÜV and Industry Canada approvals.
• Advanced SDR AIS Technology: Utilises Software Defined Radio (SDR) technology to deliver superior AIS receive sensitivity, message processing and 12.5W transmission performance for improved target detection at maximum range.

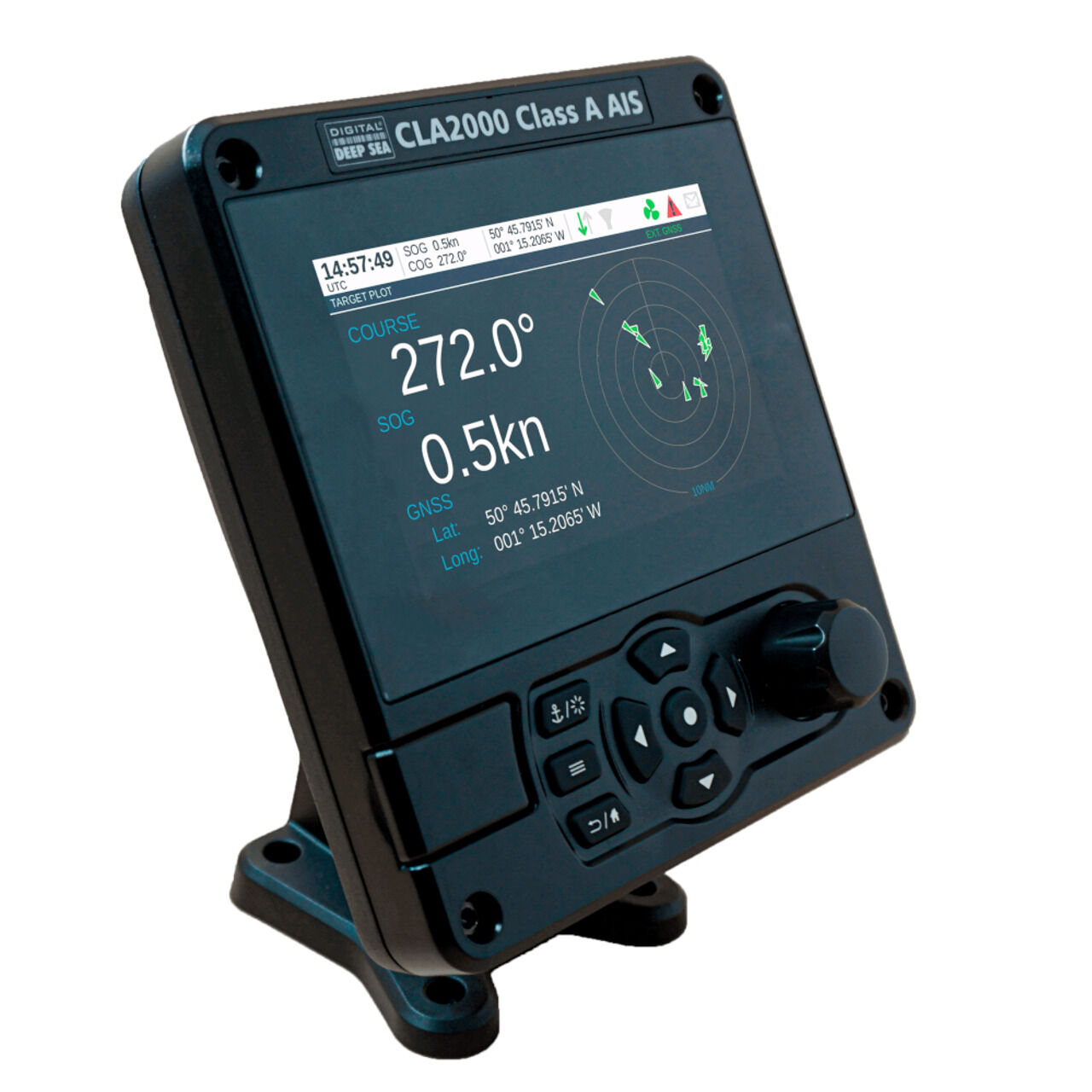

• Integrated 5-Inch Colour Display: High-resolution 800 × 480 colour display provides clear AIS target visualisation, navigation information and intuitive menu navigation without requiring an external display.

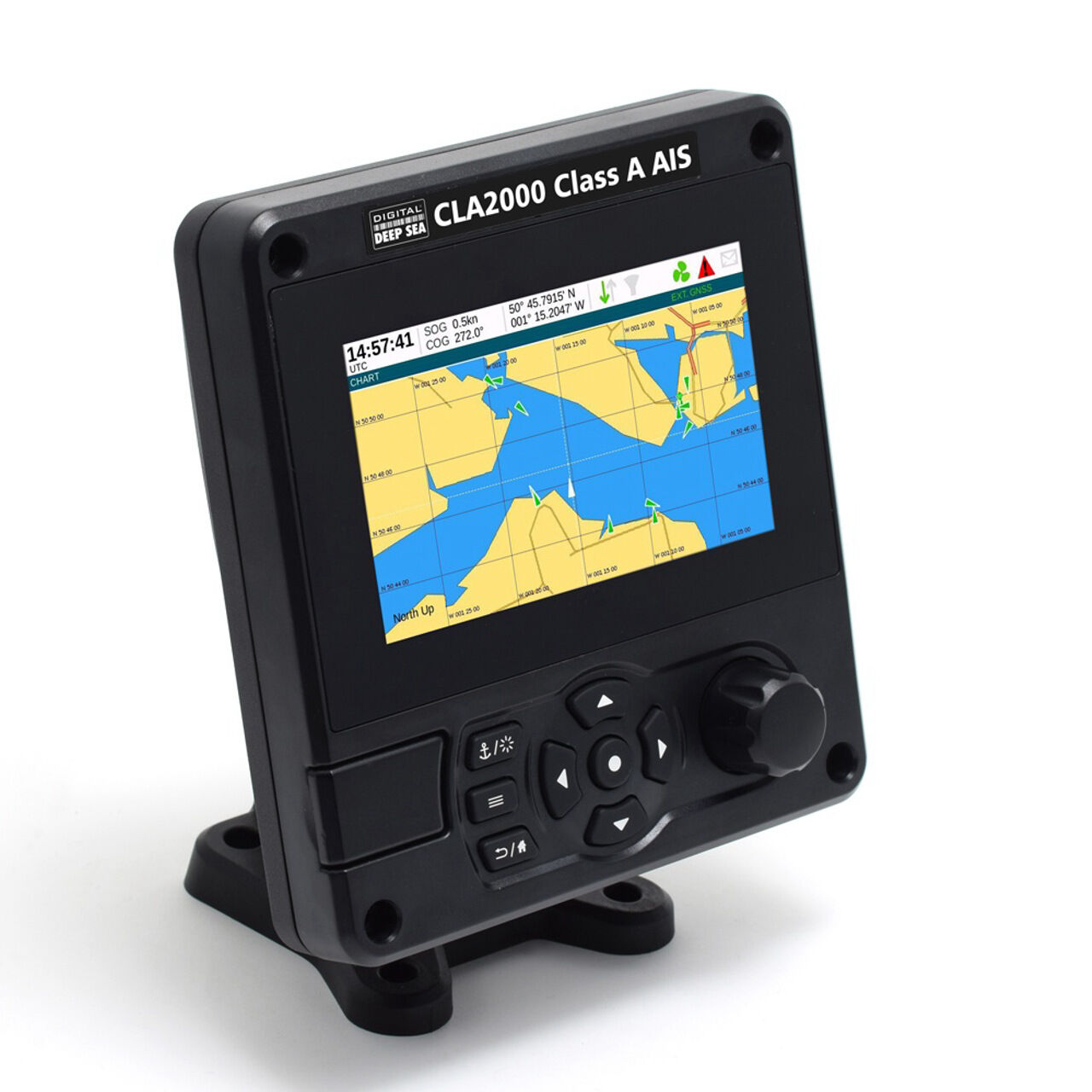

• Optional C-MAP MAX Charting: Supports C-MAP MAX charts via the integrated microSD card slot, enabling chartplotter functionality for non-SOLAS applications.
• AIS SART & MOB Detection: Detects AIS Search and Rescue Transmitters (AIS SART) and AIS MOB devices with dedicated icons, automatic alarms and relative bearing calculations for rapid response.
• Integrated GPS Receiver: Includes an external GNSS antenna with 10m cable or can utilise an external NMEA position source.
• Comprehensive Connectivity: Equipped with three bi-directional NMEA 0183 ports, NMEA 2000 interface, three sensor input ports and built-in Wi-Fi for integration with chartplotters, ECDIS, radar and mobile devices.
• Built-In Wi-Fi: Creates its own wireless network or connects to an existing network to stream AIS and GPS data to compatible smartphones, tablets and PCs.
• Programmable Collision Alarms: User-configurable CPA and TCPA alarms improve situational awareness and navigational safety.
• Flexible Installation: IP67/IPX7 waterproof housing supports both bracket and flush mounting for internal or external helm installations.
• MicroSD Data Logging: Front-panel microSD slot supports AIS data logging, firmware updates and optional chart storage.

Engineered for professional marine environments, the CLA2000 combines advanced AIS performance, integrated navigation features and flexible connectivity into a single compact Class A transponder for commercial and high-end recreational vessels.
