Wireless Engine Monitoring and Navigation Data Streaming for Mobile Devices​

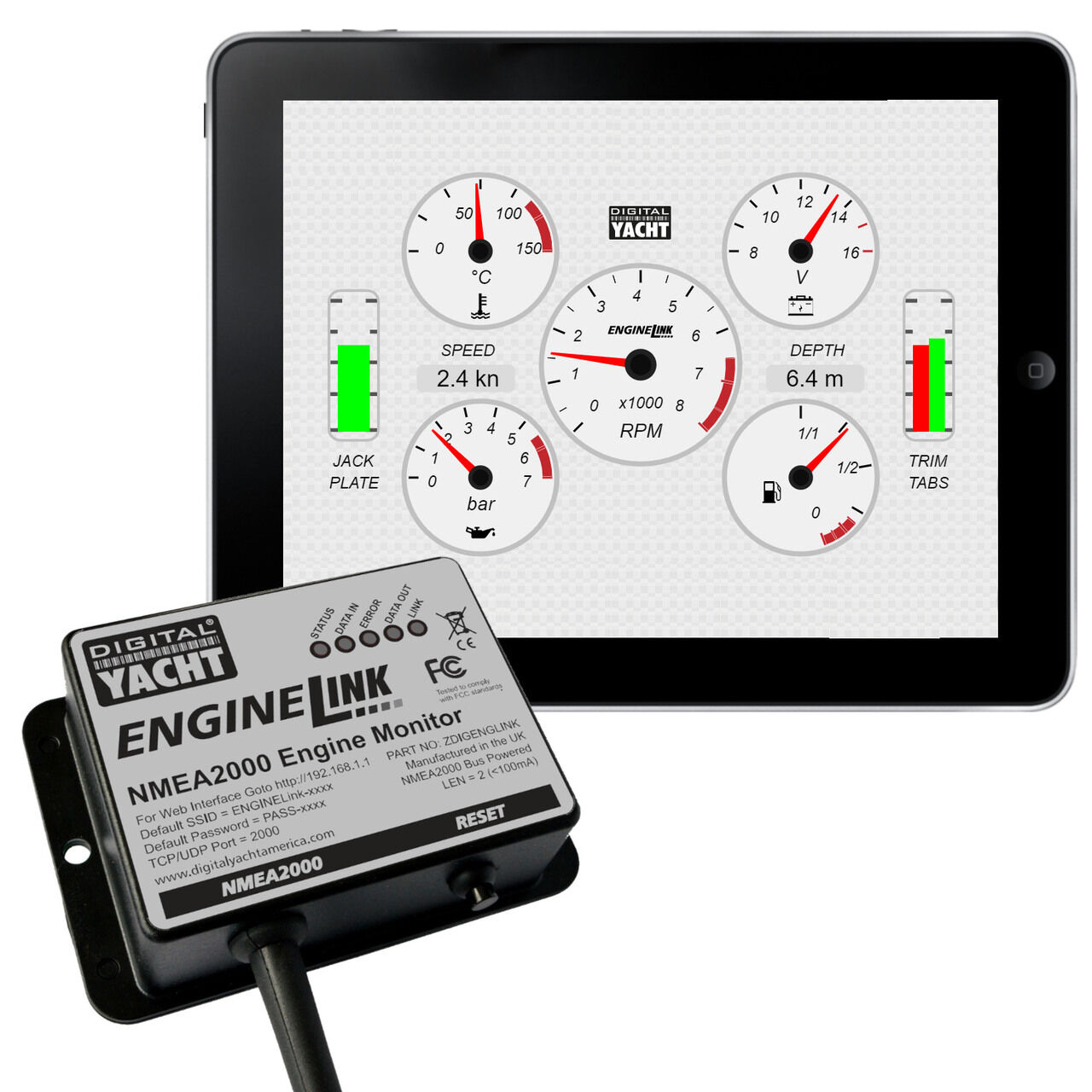

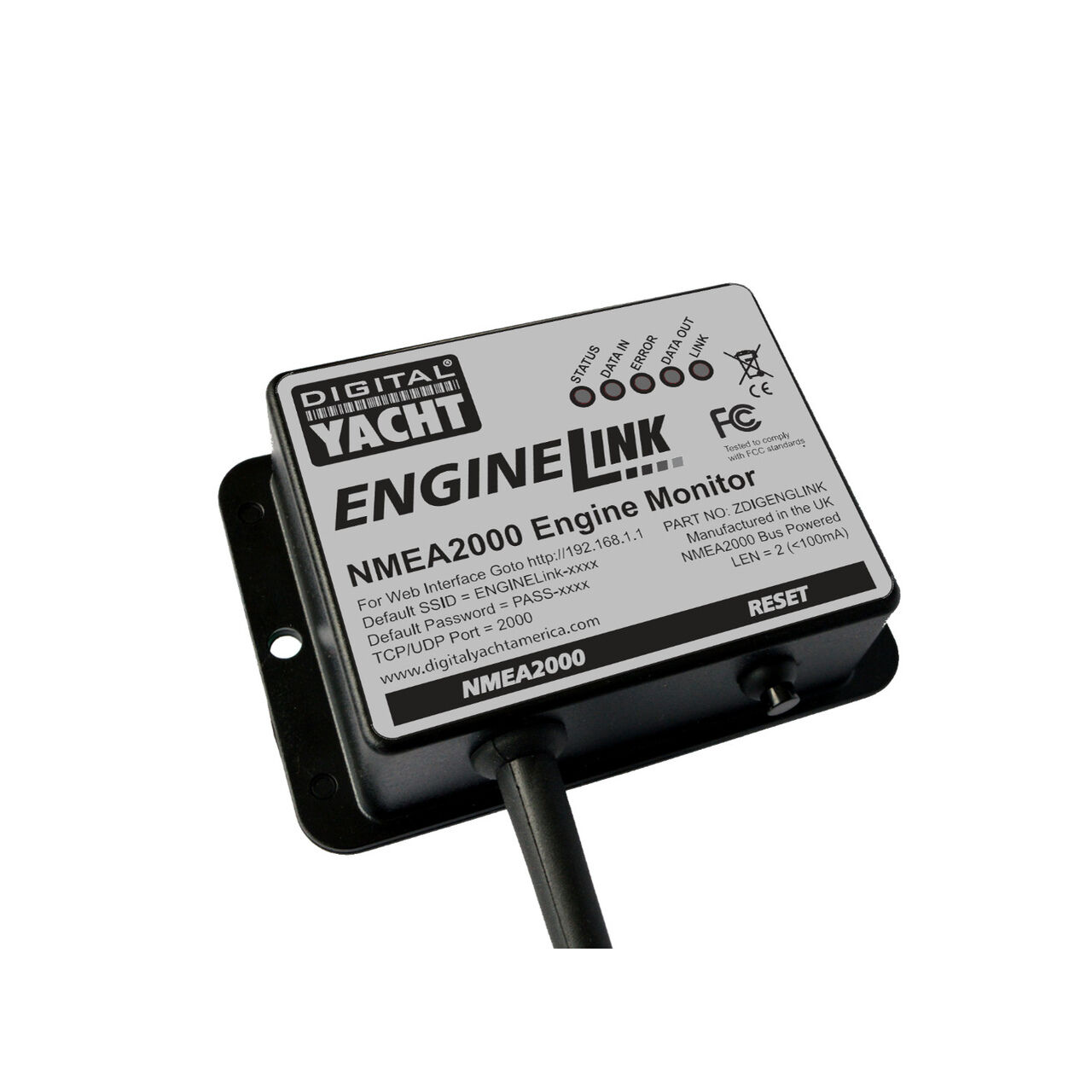

This NMEA 2000 wireless gateway enables real-time engine data monitoring on tablets, smartphones, and PCs without the need for additional apps. It displays key engine parameters such as RPM, temperature, pressure, and battery voltage through a web browser interface. Installation is straightforward—simply connect to the NMEA 2000 backbone, and the device powers itself from the network. It creates a secure, password-protected Wi-Fi network supporting up to seven simultaneous connections. Additionally, it streams AIS, GPS, and depth data to popular navigation apps like Navionics, enhancing situational awareness on the water.​

Key Features

• Wireless engine data display: Monitors engine metrics via a browser-based dashboard, eliminating the need for dedicated applications.
• Seamless installation: Connects directly to the NMEA 2000 network and draws power without requiring separate wiring.
• Secure Wi-Fi connectivity: Establishes a password-protected wireless network accommodating up to seven devices simultaneously.
• Dual engine support: Compatible with both single and dual-engine setups, including configurations with trim tabs and jack plates.
• Customizable dashboard: Offers editable gauge displays tailored to various engine manufacturers and electric propulsion systems.
• Navigation data streaming: Transmits AIS, GPS, and depth information to third-party apps via TCP/IP and UDP protocols.
• Web-based configuration: Allows users to adjust network settings and view NMEA 2000 data directly through a web browser.
• Diagnostic capabilities: Facilitates engine diagnostics and supports data logging for performance analysis.

Designed for ease of use and broad compatibility, this interface enhances onboard monitoring and navigation by integrating engine and positional data across multiple devices.
