Wireless marine power monitoring through clear onboard display integration

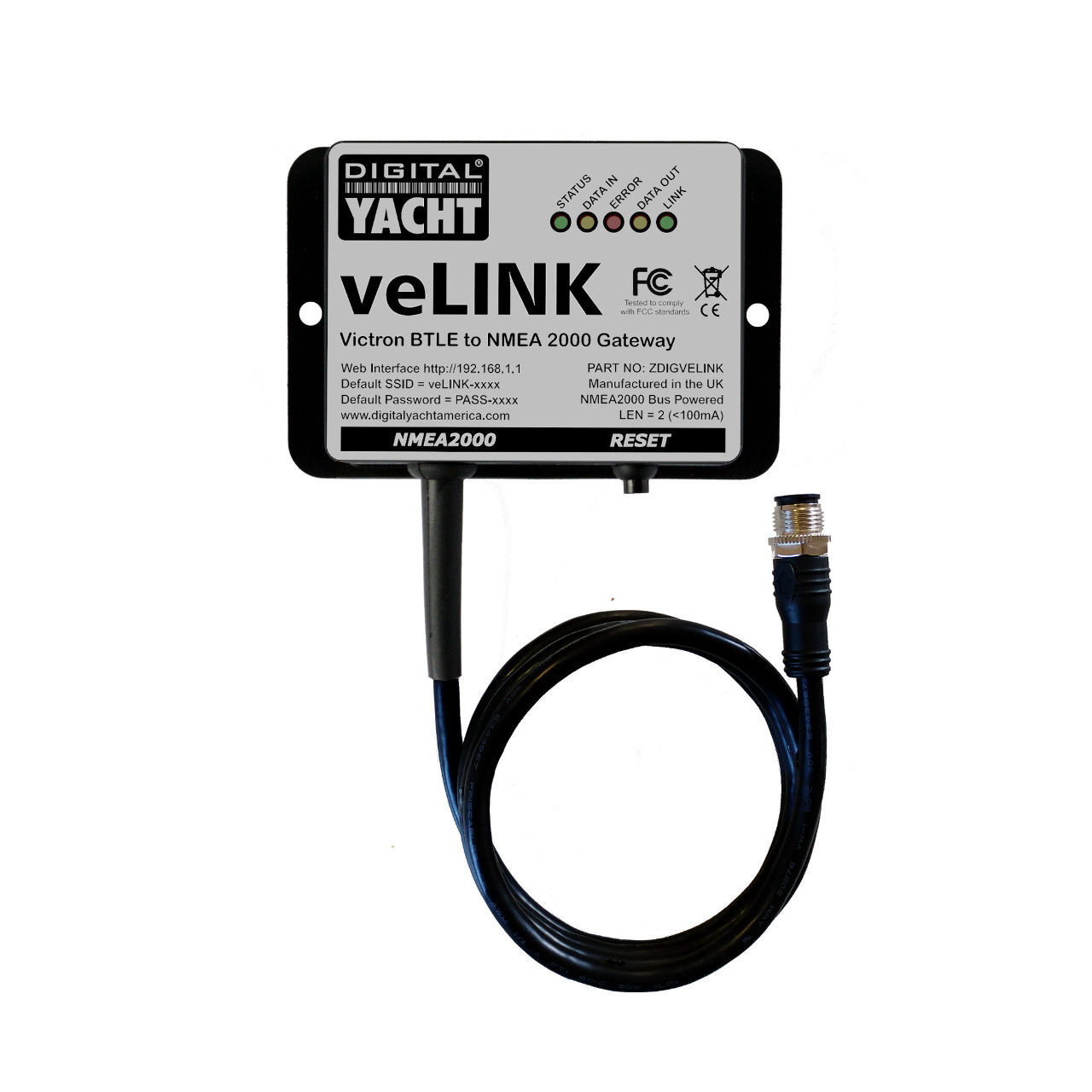

The Digital Yacht veLink connects Bluetooth-enabled Victron devices to an NMEA 2000 network, allowing key battery, solar, charging and DC power data to be viewed directly on compatible chartplotters and multifunction displays. It supports up to eight Victron Bluetooth devices, removing the need for extra wiring on the Victron side while centralising important system information and alarms for easier onboard monitoring.

Key Features

• Victron Bluetooth Integration: Connects compatible Victron devices wirelessly and sends their data to the NMEA 2000 network.
• Up To Eight Devices: Supports simultaneous connection of multiple Victron Bluetooth devices for broader onboard system monitoring.
• MFD And Chartplotter Display: Shows battery status, voltage, current, state of charge, solar input, DC power information and alarms on compatible displays.
• Alarm Monitoring: Transmits Victron device alarms to the NMEA 2000 network so issues can be viewed without relying on a phone.
• No Victron-Side Wiring: Receives data by Bluetooth, reducing installation complexity around battery monitors, chargers and solar controllers.

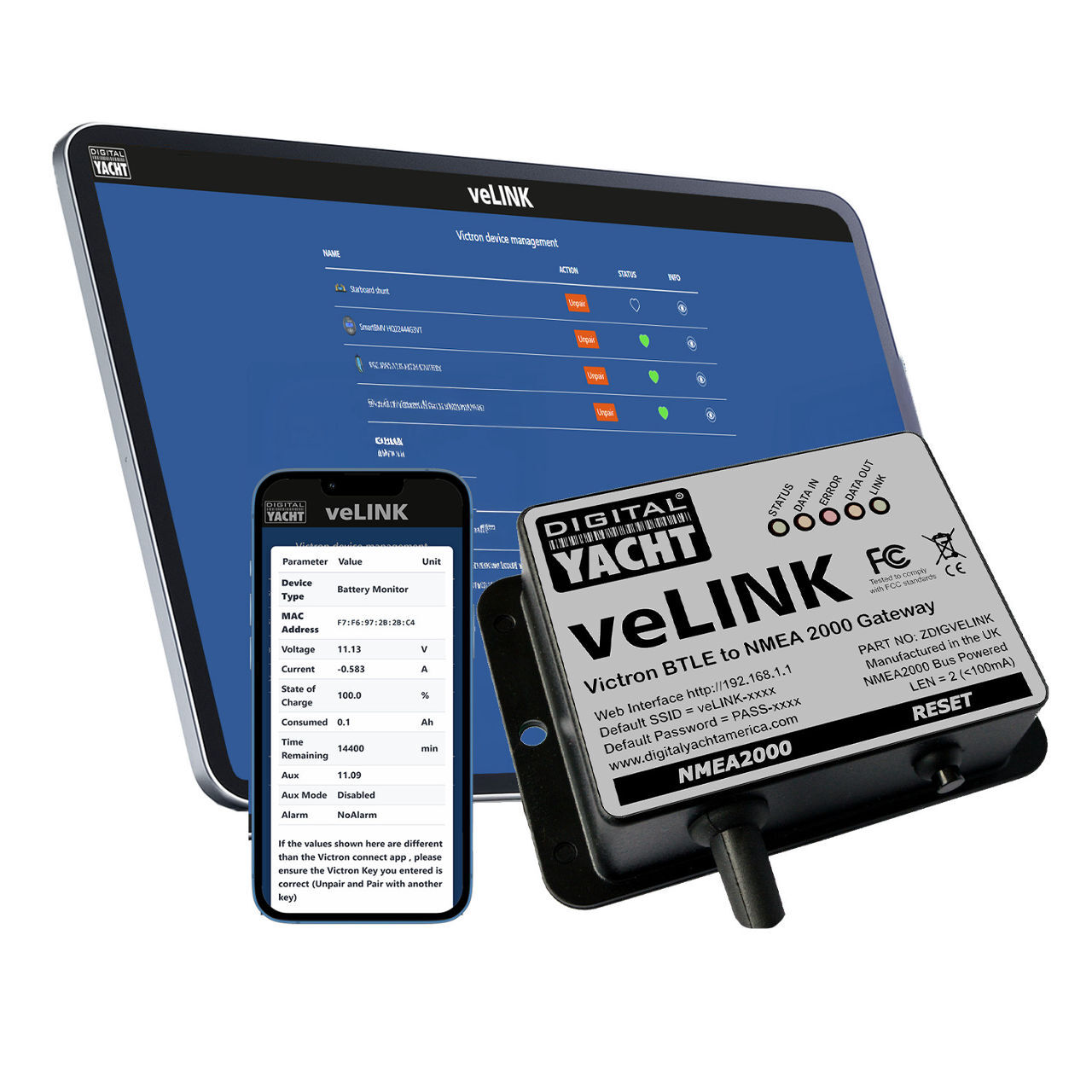

• Web Interface Configuration: Allows device scanning, pairing, naming and data selection through a simple configuration interface.
• NMEA 2000 Powered: Draws power from the NMEA 2000 network for a cleaner and more practical marine installation.
• Broad Victron Compatibility: Works with compatible SmartShunt, BMV-712 Smart, SmartSolar MPPT, Blue Smart Chargers, Orion-Tr Smart converters and Orion XS devices.

A practical interface for bringing Victron power data onto marine displays, helping simplify onboard energy monitoring and fault awareness.
