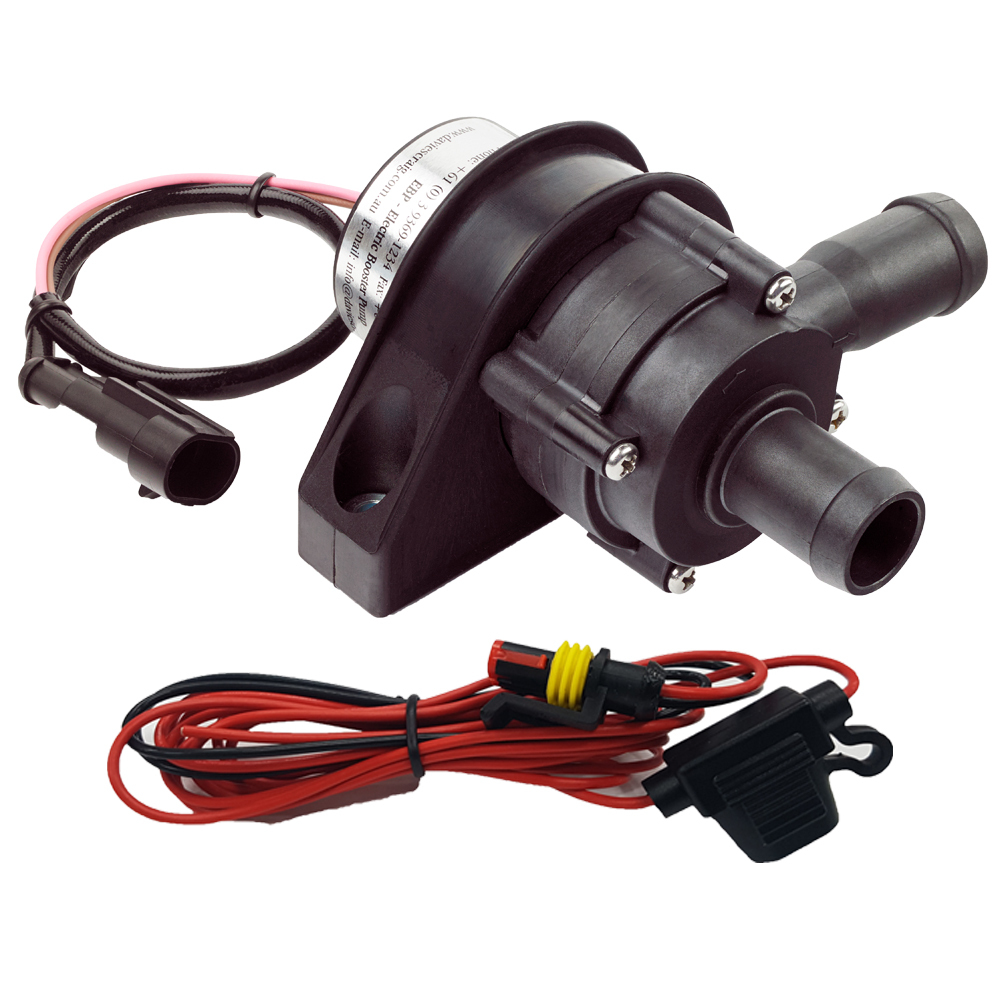

The EBP23 is a ‘brushless’ 12-volt, high flow (23 litres minute), magnetically driven water pump. The EBP motor has no brushes to ever wear out and the pump is magnetically driven by the motor, which means that no shaft sealing is required. The many EBP applications include boosters for car heaters and LPG systems, solar pump applications, water-cooled motorcycles, go-kart engines, turbo air/water intercoolers & household irrigation.


  1. Circulation Pump for LPG Vehicles – The EBP improves water circulation through the engine block to prevent the LPG injector from icing up. Other advantages include a more even engine temperature and better engine cooling.
  2. Heater Booster Pump – The EBP increases heater performance during normal vehicle operation and enables continued heater usage when the engine is off (but IGNITION is ON).
  3. Water Pump for Liquid-Cooled Motorcycle Engines - The EBP provides liquid circulation independent of the engine speed to provide cooling at all levels. It may be used with the EWP Digital Controller to replace the existing water pump or used with an override switch to complement the existing system.
  4. Multi-Purpose Pump – The EBP may be used in a number of different applications where flow is required, such as irrigation, camping, solar pumps, go-karts or marine operations.

Technical Specifications

Motor  12V Brushless
Operating Voltage  6V to 18V
Rated Current Draw  1.25 Amps

Hose Size

19mm (3/4" Inch)

*With EBP Adapters Reducer

(19mm to 12mm)

Pump Design   Recirculating * Centrifugal
Input Power 15W
Max Flow Rate @ 0 Bar 23 l/min (6 gal/min)
Rated Flow Rate @ 0.1 Bar 17.25 l/min (4.6gal/min)
Max Head Height 2.5 meters
Drive   Magnetic – No seals
Operating Temperature  -40C to +125C (-10F to +257F)
Burst Pressure  250Kpa (36PSI)
IP Rating IP68
Self Priming No
Weight 364g (0.8 lbs)
Rated Life  20,000 hrs


SKU DAV.9051
Model # 9051
Brand Davies Craig
Shipping Weight 1.0000kg
Shipping Width 0.010m
Shipping Height 0.050m
Shipping Length 0.010m
Shipping Cubic 0.000005000m3
Unit Of Measure ea
