High-capacity 36-volt lithium storage system with rugged industrial charging performance

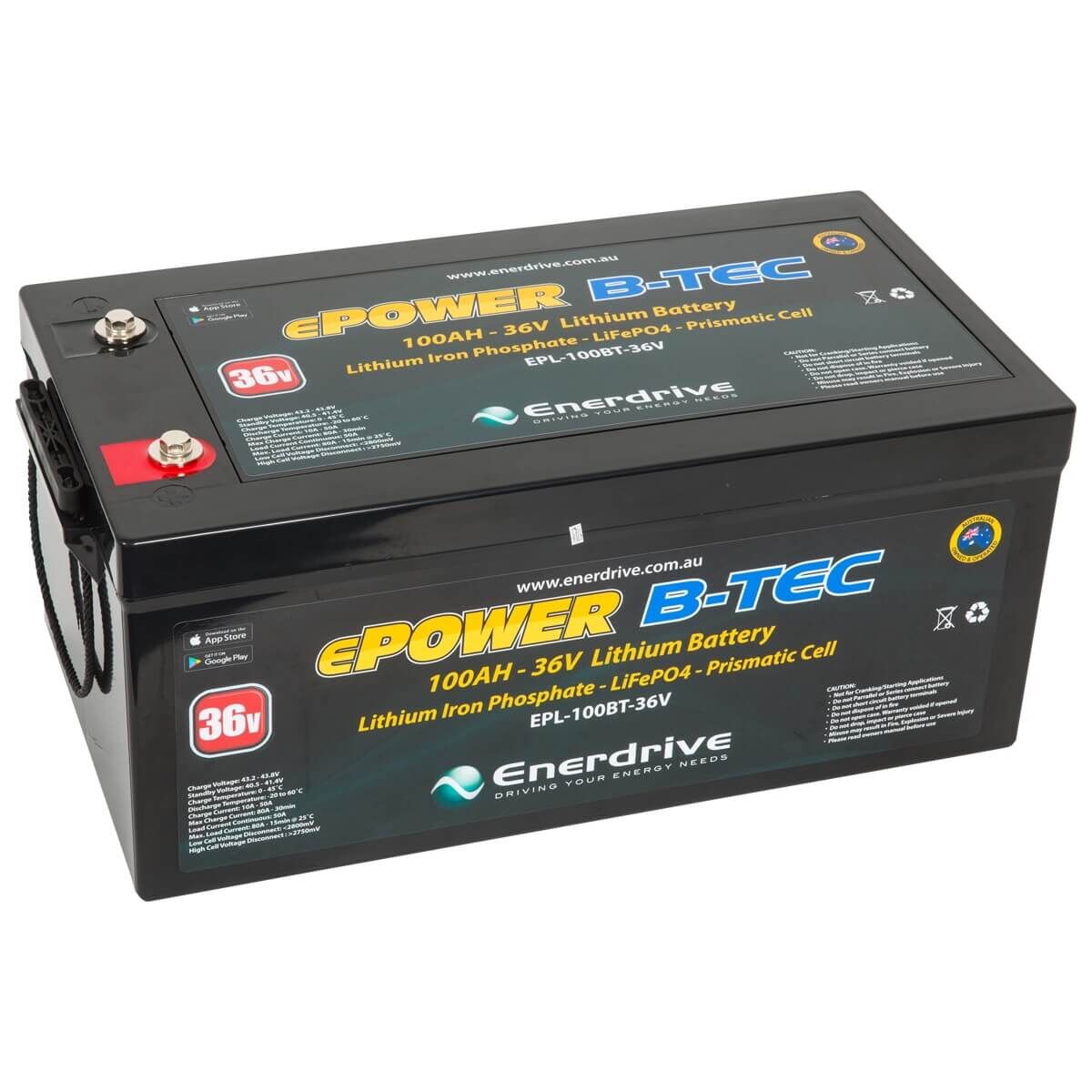

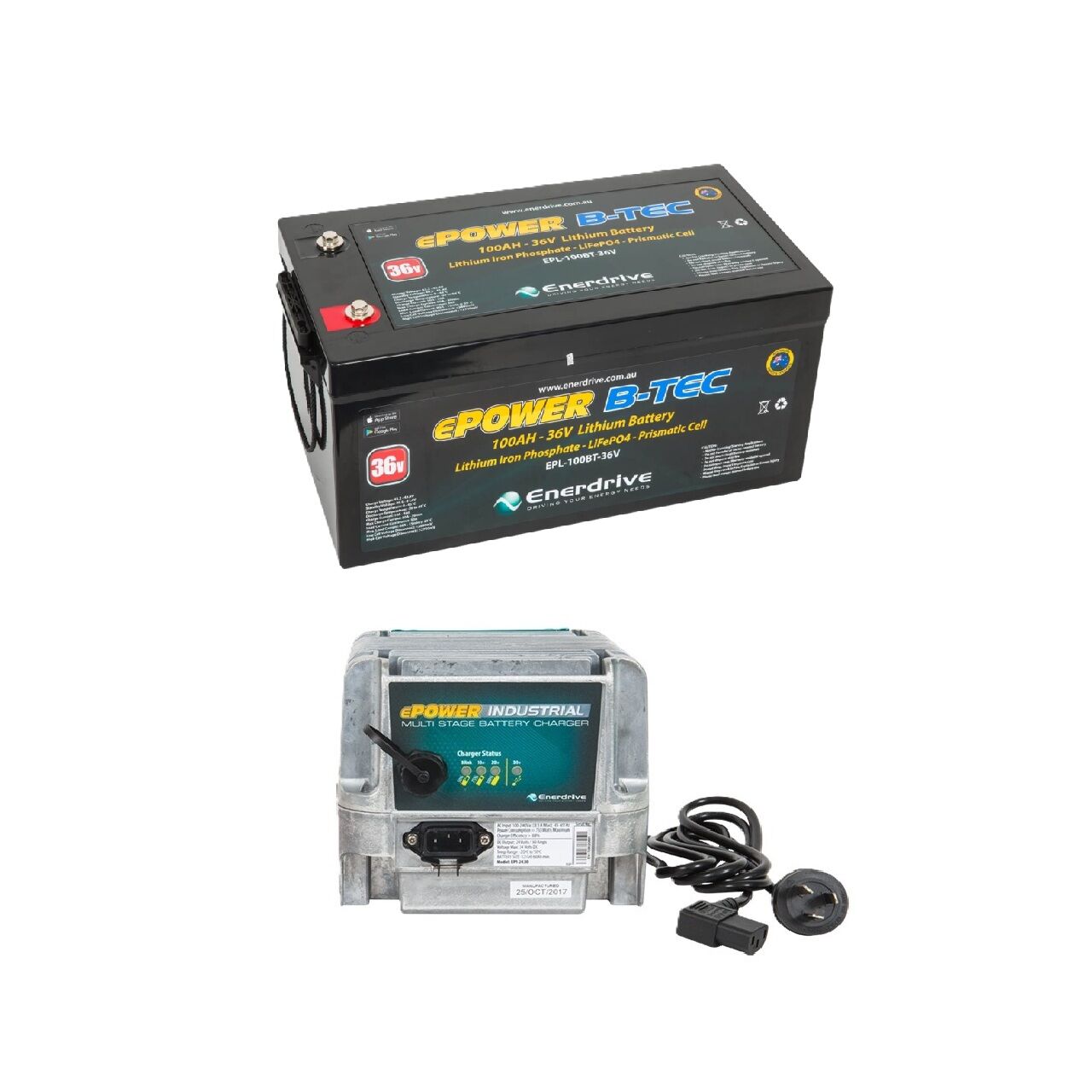

This bundled system pairs a 100 Ah 36 V LiFePO₄ battery with the Enerdrive EPI-3620 36 V/20 A industrial charger, creating a robust and efficient platform for 36-volt drive and service systems. The battery delivers high-density energy storage with long cycle life and an integrated BMS to protect and balance every cell during charge and discharge. The charger provides sealed IP66 environmental protection, multi-profile charging, and stable lithium voltage control, making it ideal for marine propulsion, electric vehicle platforms, industrial equipment and high-demand onboard DC systems that rely on secure 36-volt power.

Key Features

  • High-performance lithium storage: 100 Ah LiFePO₄ battery provides strong 36-volt capacity with >2500 cycle life at 80% depth of discharge.
  • Intelligent BMS protection: Internal battery management safeguards against over-charge, over-discharge, short circuit, over-current and thermal limits for safe long-term operation.
  • Fast charge support: Up to 50 A charge input (recommended ≤33 A) enables rapid recovery with lithium-specific charging voltage windows.
  • Wide operational temperature range: Supports charging from 0–45 °C and discharge from −20–60 °C for dependable performance in varied environments.

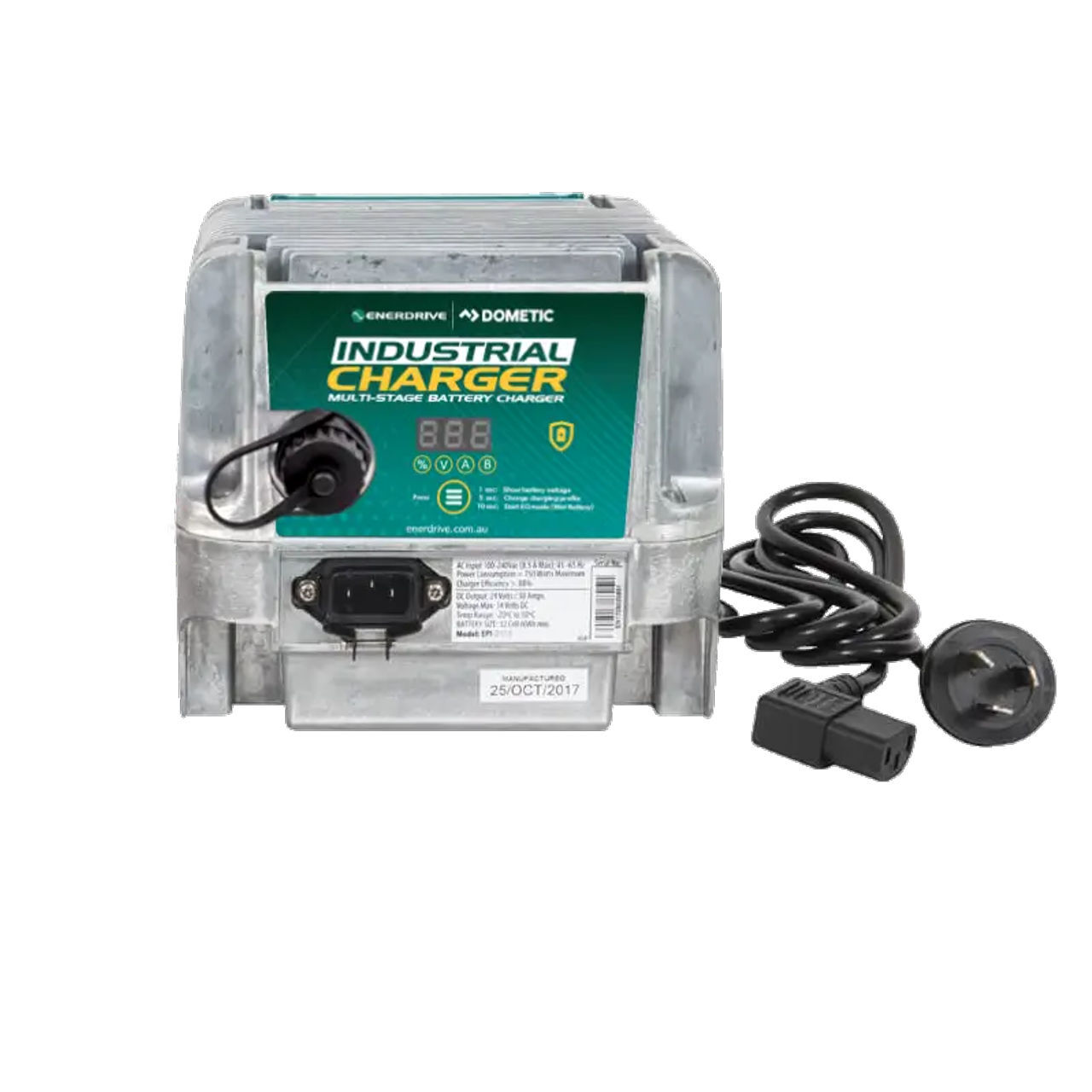

  • Heavy-duty 36 V DC charger: EPI-3620 delivers a dedicated 36 V/20 A charge output with correct lithium charging voltage and multi-stage profiles.
  • Rugged industrial design: Sealed IP66 enclosure protects the charger from moisture, dust and harsh working conditions.
  • Universal battery compatibility: Charger supports lithium, AGM, flooded and gel battery chemistry, suitable for mixed fleet or multi-system installs.
  • Safe AC input range: Operates from 100–240 VAC with full protective features including short-circuit and reverse-polarity electronic reset.

Ideal for electric drive systems, floor machinery, industrial carts, marine thrusters, heavy onboard loads and mobile DC power platforms, this bundle provides a dependable, long-life 36-volt energy source with intelligent charging control.

Technical Specifications
Battery Capacity 100 Ah
Nominal Voltage 38.4 V
Battery Chemistry LiFePO₄ with internal BMS
Cycle Life >2,500 cycles at 80% DOD
Charge Voltage 43.20 – 43.80 V
Float Voltage 40.50 – 41.40 V
Max Charge Current 50 A (recommended ≤33 A)
Max Discharge Current 100 A continuous
Pulse Discharge 450 A for 1 second
Battery Operating Temperatures Charge 0–45 °C, Discharge −20–60 °C
Battery Dimensions 519 × 273 × 222 mm
Battery Weight Approx. 37.7 kg
Charger Model EPI-3620
Charger Output Rating 36 V / 20 A
AC Input Range 100 – 240 VAC
Supported Battery Types Lithium, AGM, Flooded, Gel & Custom Profiles
Protection Features Reverse polarity and short-circuit electronic reset
Charger Dimensions 20.7 × 18.0 × 16.0 cm
Charger Weight 4.6 kg
Environmental Rating IP66
Operating Temperature −20 °C to +50 °C
SKU ENE.K-100-04
Model # K-100-04
Brand Enerdrive
Shipping Weight 43.0000kg
Unit Of Measure ea
