Enerdrive 400Ah ePOWER B-TEC Bundle (2x 200Ah G2 Lithium Batteries with Parallel Link cables)
2x 200Ah Enerdrive ePOWER B-TEC lithium batteries with Parallel Cable Kit
SKU: ENE.K-400-PARALLEL-BUNDLE | MPN: K-400-15
SAVE $1,106.70 (21%)
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
400Ah Lithium Battrery Bundle with 2x 200AH B-TEC Batteries (below) and included Parallel Cables
The New Generation 2 B-TEC - 200 Amps of PURE DC POWER
So, How does the New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery measure up against it original predecessor? Let’s have a look at the more advanced features:
- BMS Restart button for easy recovery from battery shutdown
- RS485 Communications port for advanced systems integration
- Raised terminals for 360 degree cable connections
- Battery Tray and Strap included
- Re-designed battery case for easy serviceability
Dimension | Original | Generation 2 |
Length | 485mm | 505mm |
Width | 170mm | 172.5mm |
Height | 245mm | 265mm |
The increase in height allows for full 360° connection of the battery cables the make installation easier and more flexible. Also included for free is a metal battery tray and hold down strap to complete the installation process.

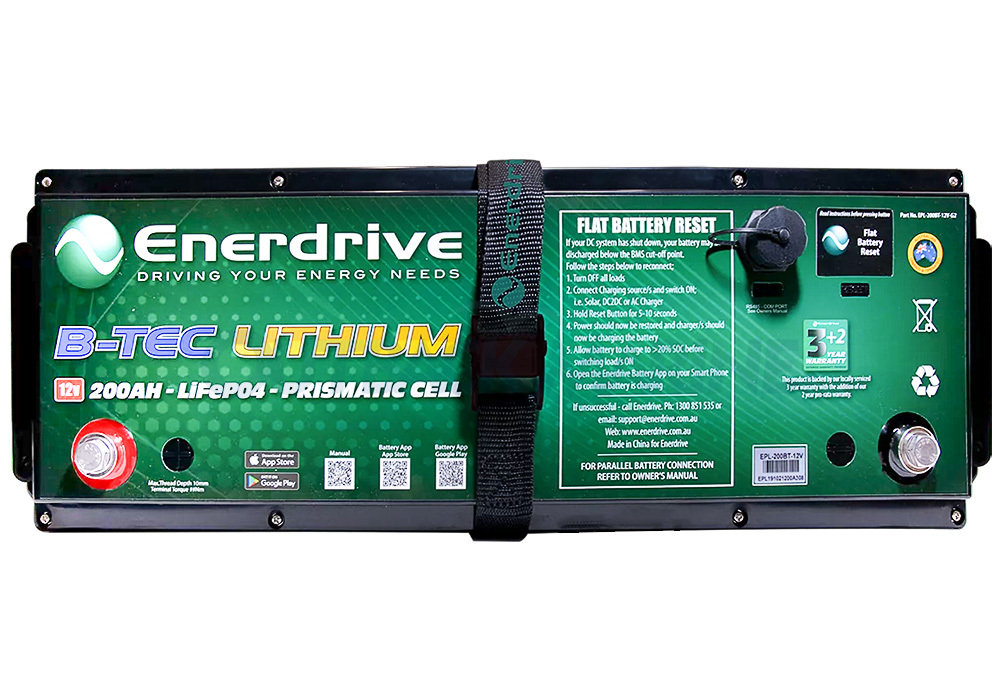

The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.
The new G2 also includes a RS485 communications port located on the top of the battery. This port allows for integration onto other CanBus systems for data monitoring and recording.
The New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery now comes with a 5 year full replacement warranty.
Battery Management System
The Enerdrive ePOWER B-TEC is equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Smart Phone Monitoring System
The battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information:
- Battery Capacity
- Battery Voltage
- Battery Current (Amps)
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Status
- Individual Cell Voltage
- Battery Temperature
- Battery Cycles
- Battery Alarms
- Battery Event Information
Size & Weight Savings
Lithium v AGM Capacities;
- 100Ah Lithium = 160Ah AGM
- 125Ah Lithium = 200Ah AGM
- 200Ah Lithium = 320Ah AGM
- 200Ah Lithium G2 = 320Ah AGM
(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).
The ePOWER B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
The ePOWER B-TEC battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.
Gen 2 B-Tec 200Ah Battery Product Video
Gen 2 B-Tec 200Ah Battery Parallel Setup Video
Enerdrive B-TEC 12v Lithium Battery Technical Data
Normal Specification | EPL-200BT-12V G2 |
---|---|
Nominal Voltage | 12.8V |
Nominal Capacity | 200Ah |
Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles |
Standard Charge Specification (Lithium profile charger required) | |
Battery Charge Temperature | 0 ̴ 45°C |
Normal Charge Voltage CV/CC* | 14.40 ̴ 14.60V |
Standby (Float) Voltage | 13.50 ̴ 13.80V |
Maximum Charge Current | 150A @ 25°C for 30mins |
Recommended Charge Current for Maximum Life | ≤60A |
Standard Discharge Specification | |
Battery Discharge Temperature | -20 ̴ 60°C |
Battery Output Voltage Range | 11.00 ̴ 14.60V |
Maximum Discharge Current | 200A @ 25°C ±5°C for 30mins |
Pulse Discharge Current | 450A for 1.0s |
Discharge Cut-off Voltage | ≤11.20V |
Circuit Protection | |
The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery. | |
Over-Charge Protection | |
Over-charge Protection Per Cell | 3.90V ± 0.03V |
Over-charge Release Per Cell | 3.60V ± 0.05V |
Over-charge Release Method | Discharge below release voltage |
Over-Discharge Protection | |
Over-discharge Protection Per Cell | 2.80V ± 0.05V |
Over-discharge Release Per Cell | 3.20V ± 0.05V |
Over-discharge Release Method | Apply Charge/Voltage ≥12.8V |
Over Current Protection | |
Discharge Over Current | 220A for 30s – 450A for 1s |
Protection Reset Time | 5s Auto Release |
Over Current Release Method | Disconnect Load |
Over Temperature Protection | |
Battery Discharge Over Temperature | Protection to 65°C ± 5°C |
Release at 50°C ± 5°C | |
Battery Charge Over Temperature | Protection to 55°C ± 5°C |
Release at 45°C ± 5°C | |
Short Circuit Protection | Auto release after 5s |
Mechanical Characteristics | |
Dimensions | 505mm |
172.5mm | |
265mm | |
Weight | Approx 25.0 Kg |
Storage Information | |
Temperature & Humidity Range | ≤ 30 days -20°C ̴ 35°C, 45 ̴ 75% RH |
≥ 30 days -10°C ̴ 30°C, 45 ̴ 75% RH | |
Self-discharge Rate | ≤ 3% Per Month |
Note: Specifications subject to change without notice.
SKU | ENE.K-400-PARALLEL-BUNDLE |
Model # | K-400-15 |
Brand | Enerdrive |
Shipping Weight | 25.0000kg |
Shipping Width | 0.175m |
Shipping Height | 0.270m |
Shipping Length | 0.510m |
Shipping Cubic | 0.024098000m3 |
Unit Of Measure | ea |
Purchase with confidence knowing your product is covered by the Enerdrive 5 Year Manufacturer Warranty.
