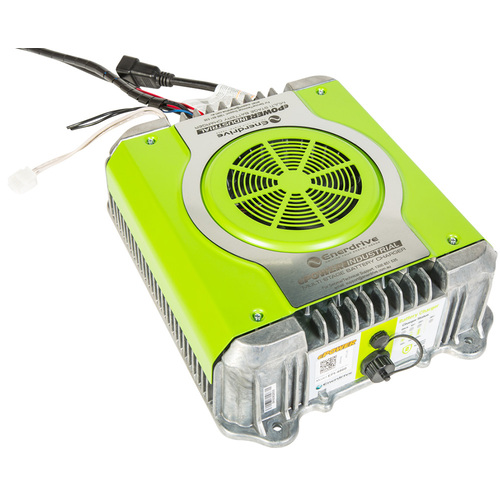

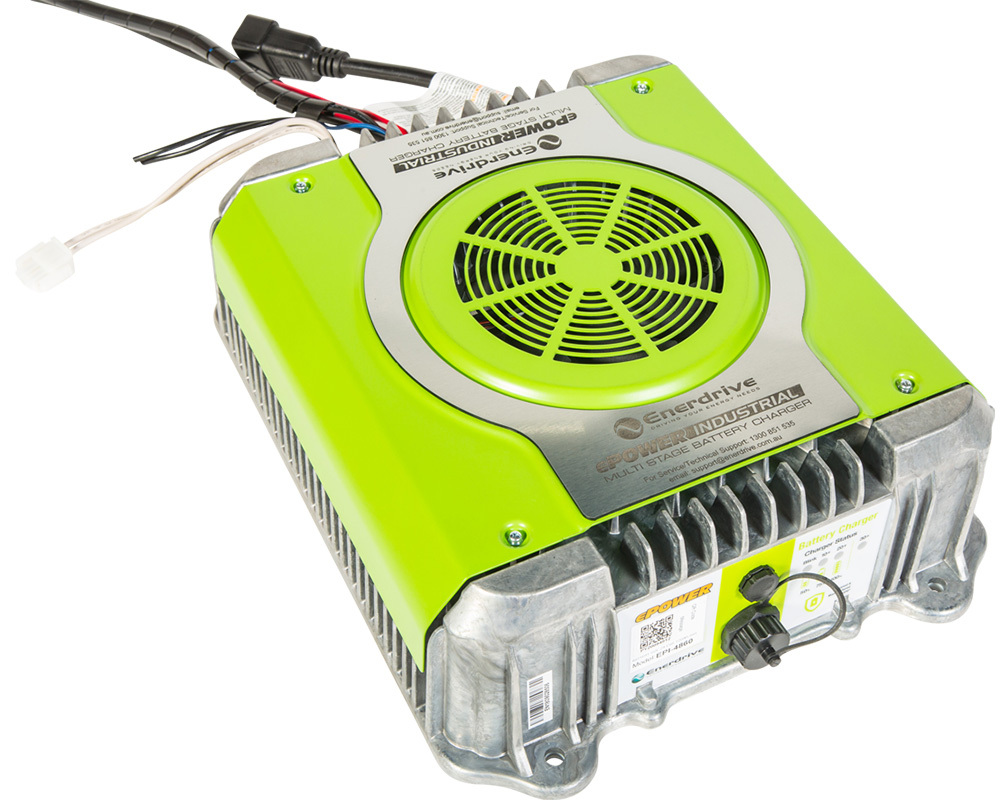

Enerdrive’s ePOWER Industrial Battery Charger is built to withstand vibration and exposure to dust or moisture typically found when used in typical on-board or industrial applications. Charge Algorithm updates and downloadable charger data logs are easily accessible via the use of a USB memory stick.


Extremely Durable

A fully sealed die cast aluminum enclosure protects the charger from fluids and other contaminants. The design of the charger enclosure mirrors the internal components, protecting against shock and vibration. (IP67 if using AC input seal).


Programmable Charging

A USB host port allows for charger data logging downloads and charge algorithm uploads using a commonly available USB flash drive. This information can be used by OEMs to improve products, limit battery warranty claims and help technicians with troubleshooting issues.


Battery Charging Flexibility

With over 25 algorithms to choose from that suit 90%+ of the batteries on the market today, the ePOWER Industrial charger also has the ability to create full custom algorithms to suit any type of lead acid or lithium battery. The charger is optimised to provide precise battery charging of different battery chemistries and battery manufacturers. These charge profiles allow charging to occur quickly and carefully, maximising battery life and performance.

ePOWER Industrial Charger

Model EPI-2430 EPI-3620 EPI-4815 EPI-4835 EPI-4860
DC Output
Nominal Voltage (V) 24V 36V 48V 48V 48V
Maximum Voltage (V) 34V 51V 68V 68V 68V
Maximum Current (A) 30A 20A 15A 35A 60A
Applicable to battery AGM, Flooded, GEL, Lithium
Reverse Polarity Electronic Protection Auto Reset
Short Circuit Electronic Protection Auto Reset
AC Input
Voltage Range (V) 100-240V
Frequency (Hz) 45-60Hz
Maximum Current (A) MAX Power 850W
8.5A @100V
4.25A @230V
MAX Power 1985W
19.5A @100V
8.63A @230V
MAX Power 3400W
34A @100V
14.78A @230V
Full Load AC Power Factor >0.98
Other Specifications
Dimensions 20.7 x 18.0 x 16.0 cm 19.5 x 18.0 x 19.5 cm 35.9 x 28.0 x 10.7 cm
Weight 4.6kg 5.2kg 10kg
Operating Temperature -30°C ~ +50°C
Storage Temperature -40°C ~ +70°C

Note: Specifications subject to change without notice.

SKU ENE.EPI-4860
Model # EPI-4860
Brand Enerdrive
Shipping Weight 6.0000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.300m
Shipping Cubic 0.027000000m3
Unit Of Measure ea

Purchase with confidence knowing your product is covered by the Enerdrive 5 Year Manufacturer Warranty.
