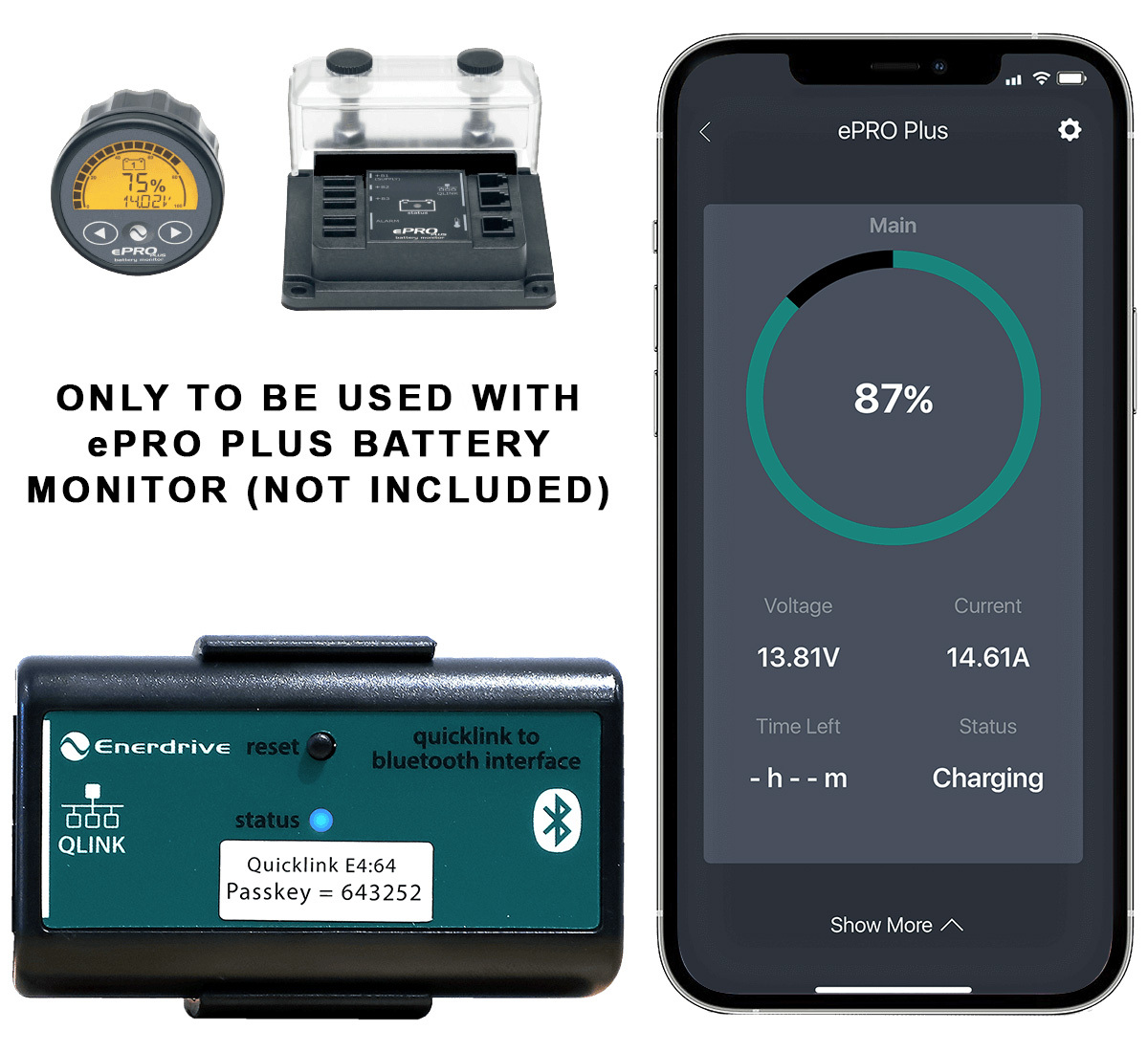

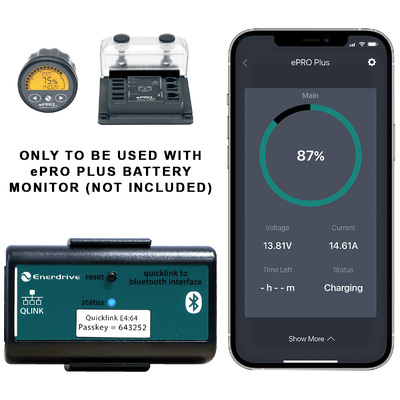

Please note this product is only to be used in addition to an ePRO Plus Battery Monitor (not included).

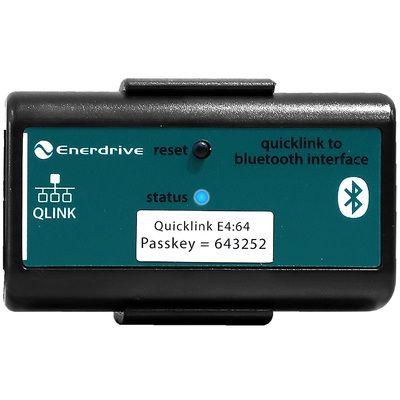

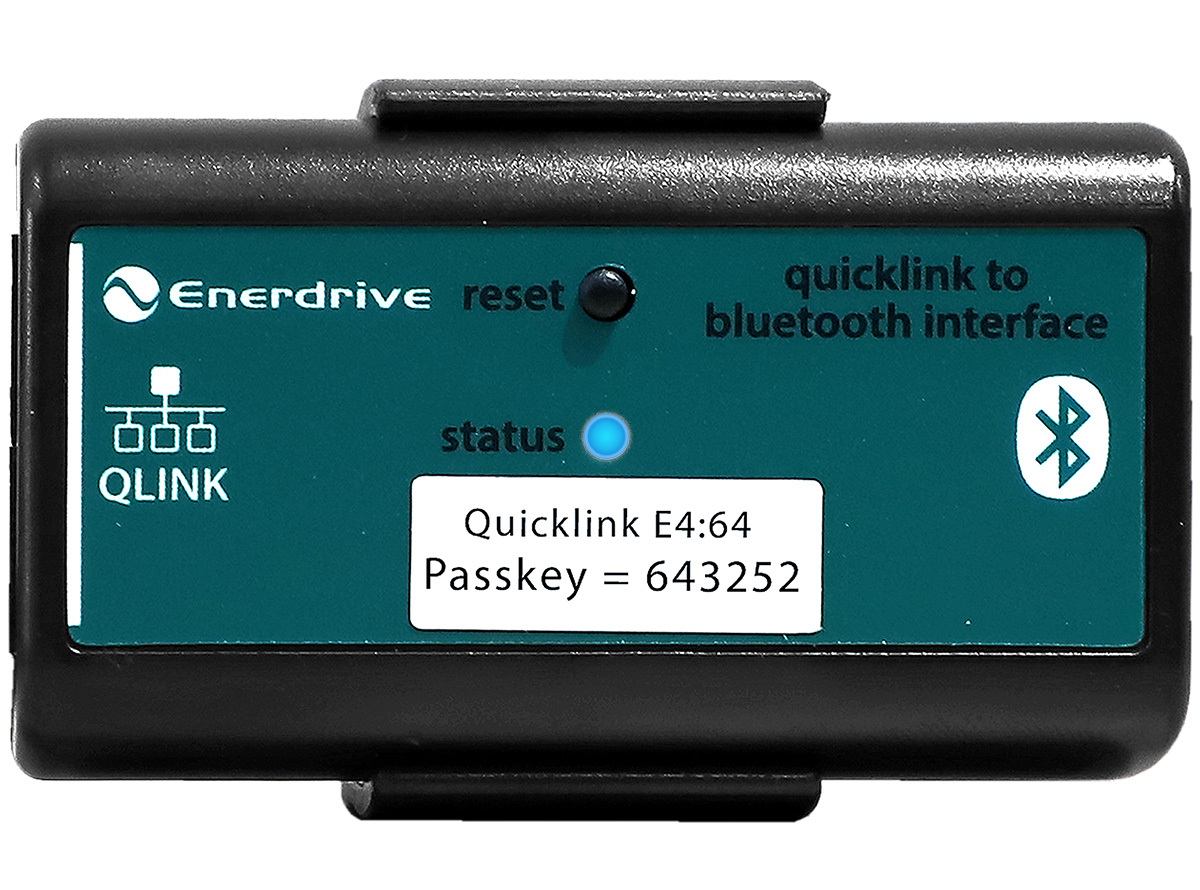

The ePRO Plus Bluetooth dongle enables you to control, readout and configure the ePRO PLUS battery monitor from an iOS or Android based mobile phone via Bluetooth. It's as simple as plugging the dongle into the QLINK port on the ePRO Plus Shunt via the supplied link cable, pairing it with your mobile device, downloading the App to your phone or tablet and away you go. The Bluetooth interface can accept a maximum of 4 different phone or tablet pairings in its memory.

The Enerdrive ePRO app is available in the Apple App Store and Google Play.

The Dashboard Mobile allows you to read out live status information and parameter values. Besides reading live data and configuring the ePRO Plus battery monitor, you can also read Status and History data. Additionally, the ePRO Plus Monitor can be renamed by the app and all settings can by locked/unlocked by a pin code.

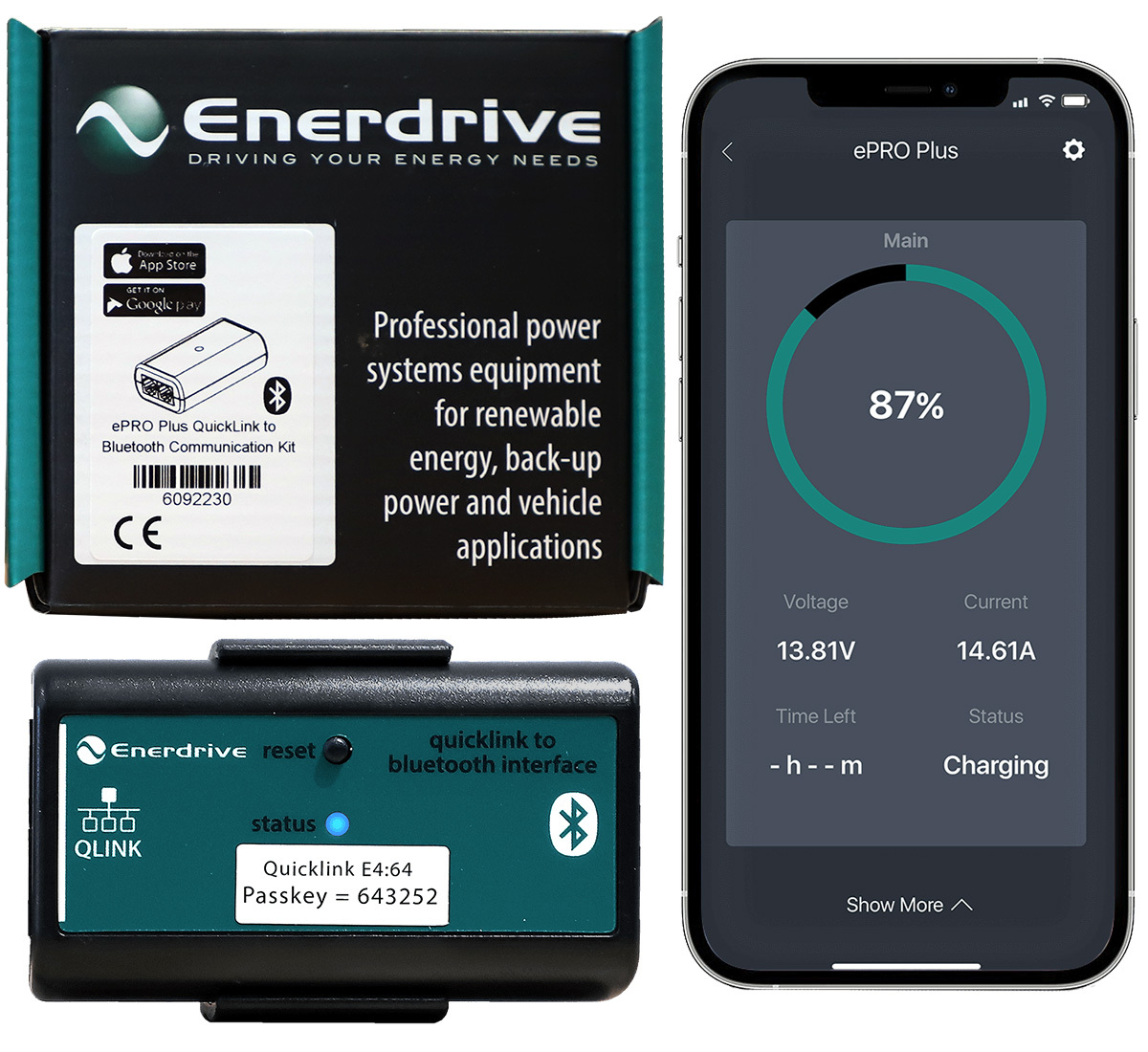

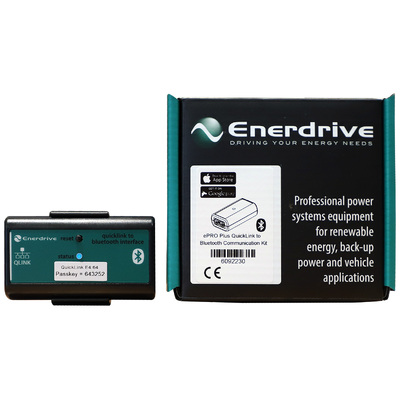

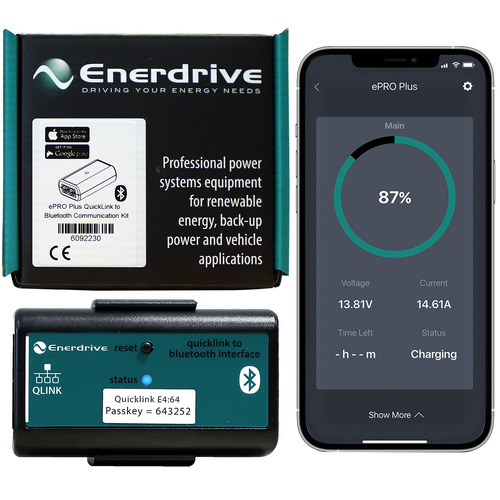

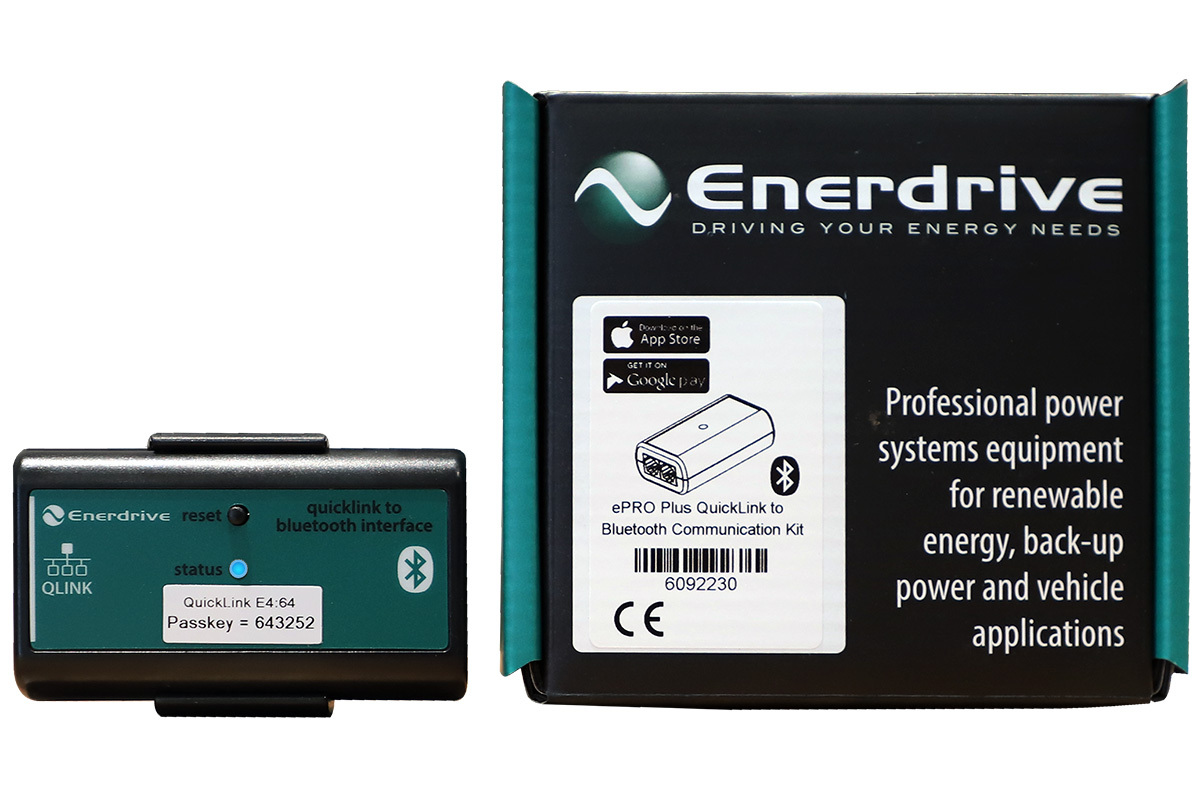

What's in the box:

  • Interface box
  • Mounting bracket
  • QuickLink cable
  • Mounting screws

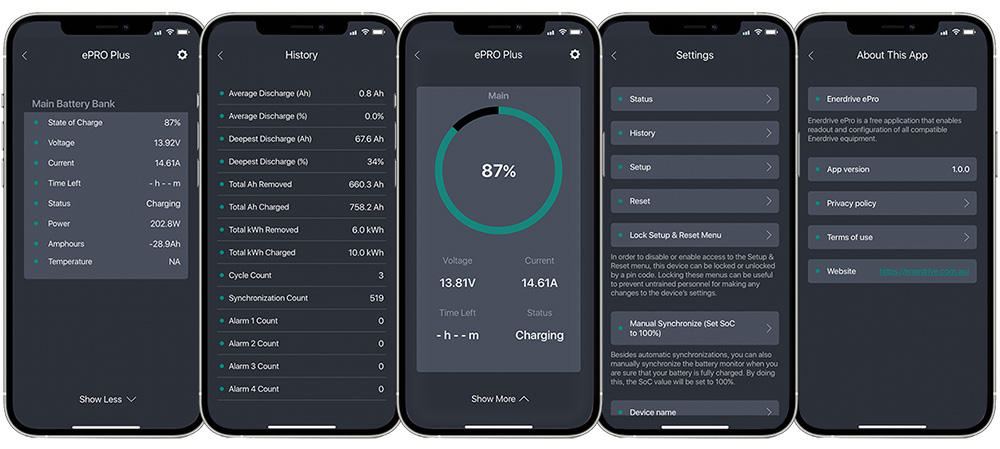

Enerdrive ePRO Plus Bluetooth Dongle Screenshots

Apple Supported devices:

  • iPhone 5s and up (running iOS 11 or higher)
  • iPad Air / Mini 3 and up (running iOS 11 or higher)*

*The Enerdrive ePRO UI is primarily optimised for use on iPhones

Android Supported devices:

  • Android phones and tablets* running Android 7.0 or higher and being equipped with support for Bluetooth Smart (Low Energy).

Enerdrive ePRO has been tested on a wide range of Android devices. However, due to the immense variety of hardware platforms running Android, Enerdrive cannot guarantee correct functionality on any existing Android device.

*The Enerdrive ePRO UI is primarily optimised for use on Android Phones.

Note: Certain Android versions require access to location services when scanning for, or pairing with Bluetooth devices. This is OS specific and can unfortunately not be omitted.

PLEASE NOTE: Phone NOT Included



Technical specifications QuickLink to Bluetooth interface box
Communication bus type TBS QuickLink
Current consumption 5mA max.
Bluetooth version 4.1 (Low Energy)
Operating ambient temp. -25 to +70 °C
Dimensions (L x W x H) 74 x 43 x 25mm



SKU ENE.EN6092230
Model # EN6092230
UPC/EAN 9342616003848
Brand Enerdrive
Shipping Weight 0.2500kg
Unit Of Measure ea

Purchase with confidence knowing your product is covered by the Enerdrive 5 Year Manufacturer Warranty.
