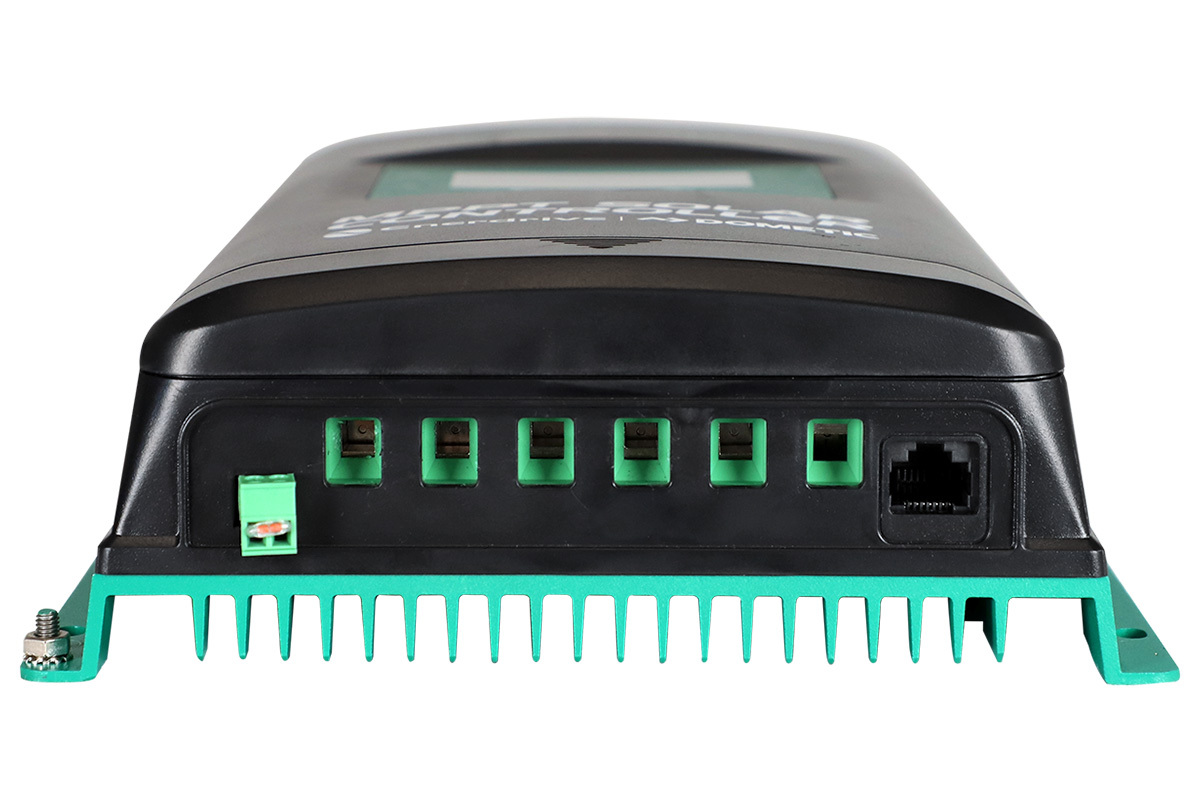

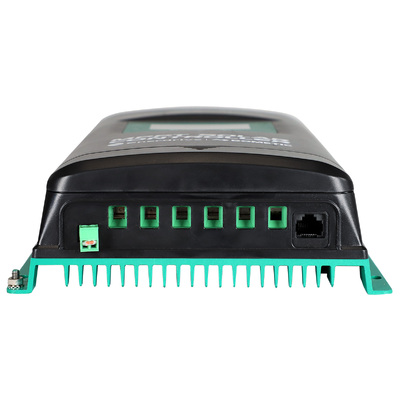

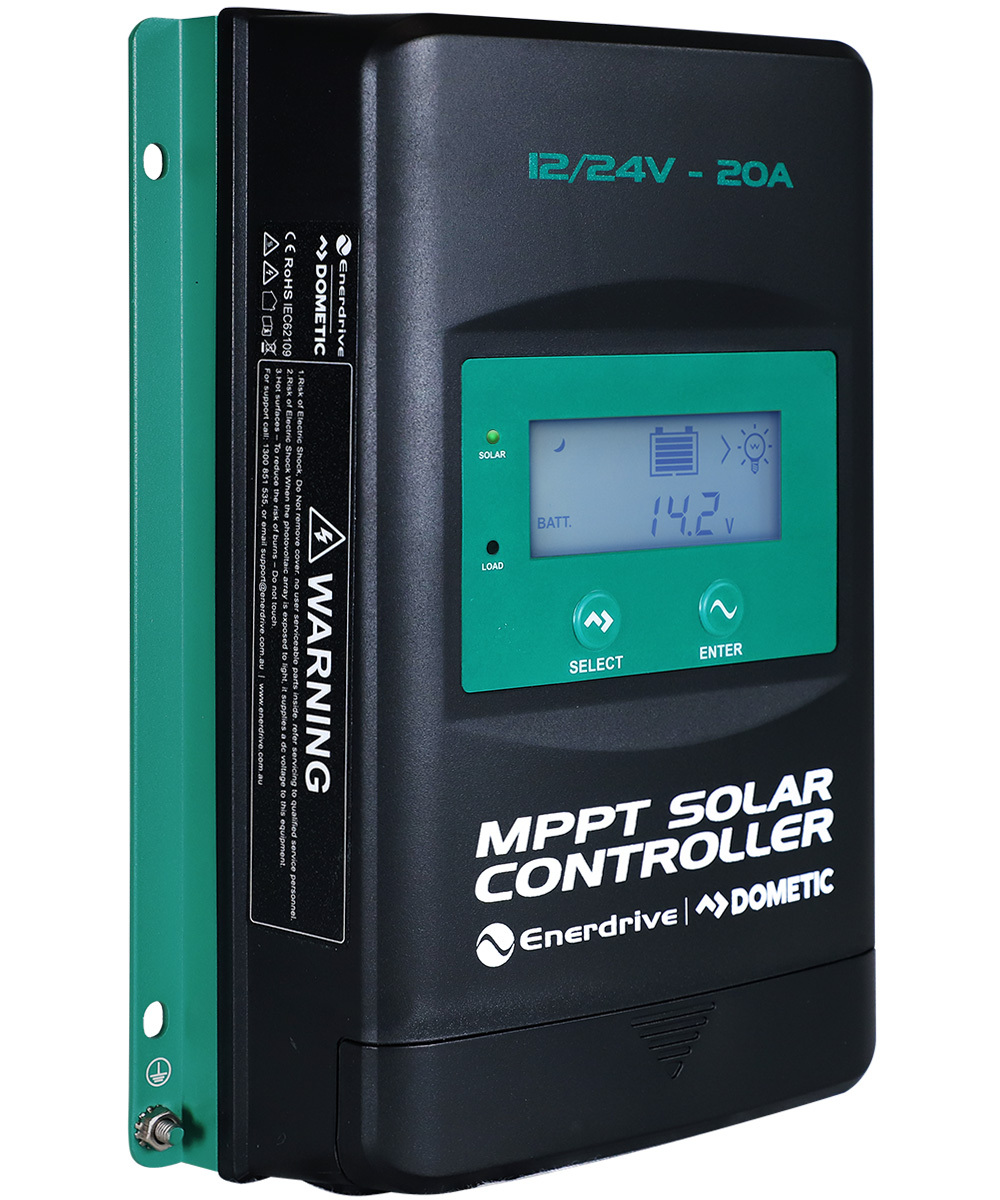

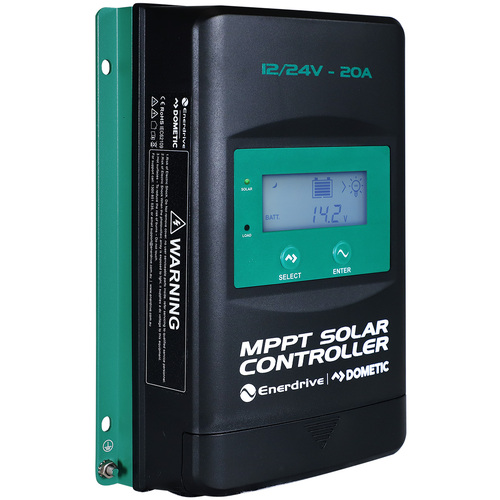

The Enerdrive MPPT Solar Controllers adopt the advanced MPPT control algorithm, it can minimize the maximum power point loss rate and loss time, quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from the solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method.

The Enerdrive MPPT Solar Controllers has a self-adaptive three-stage charging mode based on a digital control circuit, which can effectively prolong the lifespan of batteries and significantly improve the system performance. It also has comprehensive electronic protection for overcharge, over-discharge, PV & battery reverse polarity. This controller can be widely used for RV, Marine, remote off-grid monitoring and many other applications.

IP33 Ingress protection and isolated RS485 design further improve the controller’s reliability and meet the different application requirements.

Enerdrive MPPT Solar Controller Features:

  • CE certification (LVD EN/IEC62109,EMC EN61000-6-1/3)
  • LCD display
  • Advanced MPPT technology & ultra-fast tracking speed guarantee’s tracking efficiency up to 99.5%
  • Maximum DC/DC transfer efficiency is as high as 98.6%.
  • Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
  • Accurate recognition and tracking of multi-peaks maximum power point
  • Wide MPP operating voltage range
  • Support lead-acid and lithium batteries
  • Real-time energy statistics function
  • Power reduction automatically over temperature value
  • Multiple load work modes
  • Comprehensive electronic protection
  • IP33 Ingress protection
  • Comms port included for future applications
Model EN43510 EN43520 EN43530 EN43540
Nominal Voltage Range 12/24VDC Auto Select ¹
Battery Voltage Range 8 ~ 32V
Maximum Battery Current Output 10A 20A 30A 40A
Maximum Load Current Output 10A 20A 30A 40A
Maximum PV Open Circuit Voltage 100V ²
92V ³
MPPT Voltage Range (Battery Voltage + 2V) - 72V
Maximum PV Array Power Recommended 150W/12V
300W/24V
300W/12V
600W/24V
450W/12V
900W/24V
600W/12V
1200W/24V
Maximum PV Array Power Allowed (Overdrive) 180W/12V
360W/24V
360W/12V
720W/24V
540W/12V
1080W/24V
720W/12V
1440W/24V
Efficiency (Maximum) 98.20% 98.30% 98.60% 98.60%
Self Consumption ≤30mA (12V)
≤16mA (24V)
Temperature Compensate Coeffcient ⁴ -3mV/°C/12V (Default)
Grounding Common Negative
RS485 Interface 5VDC/200mA (RJ45)
LCD Backlight Timeout Default: 60S, Range,: 0~999S (OS: the backlight is ON all the time)

ENVIRONMENTAL PARAMETERS

Environmental Temperature ⁵ -25°C ~ +50°C
Storage Temperature Range -20°C ~ +70°C
Relative Humidity ≤95%, N.C.
IP Rating IP33

MECHANICAL PARAMETERS

Dimensions (mm) LxWxH 175 x 143 x 48 217 x 158 x 56.5 230 x 165 x 63 255 x 185 x 67.8
Mounting Hole Dimensions (mm) 120 x 134 160 x 149 173 x 156 200 x 176
Mounting Hole Size ɸ5mm
Maximum Cable Size (Connector Input/Output) 12AWG (4mm²) 6AWG (16mm²) 6AWG (16mm²) 6AWG (16mm²)
Recommended Cable Size
(Connector Input/Output)
12AWG (4mm²) 10AWG (6mm²) 8AWG (10mm²) 6AWG (16mm²)

1. When lithium battery is used, the system voltage can’t be identified automatically.
2. At minimum operating environment temperature.
3. At 25°C environment temperature.
4. When lithium battery is used, the temperature compensate coefficient must be 0, and can’t be changed.
5. The controller can supply full load working in the environment temperature. When the internal temperature reaches 81°C, the reduced charging power mode is turned on.

SKU ENE.EN43520
Model # EN43520
Brand Enerdrive
Shipping Weight 2.2000kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.170m
Shipping Cubic 0.004250000m3
Unit Of Measure ea

Purchase with confidence knowing your product is covered by the Enerdrive 5 Year Manufacturer Warranty.
