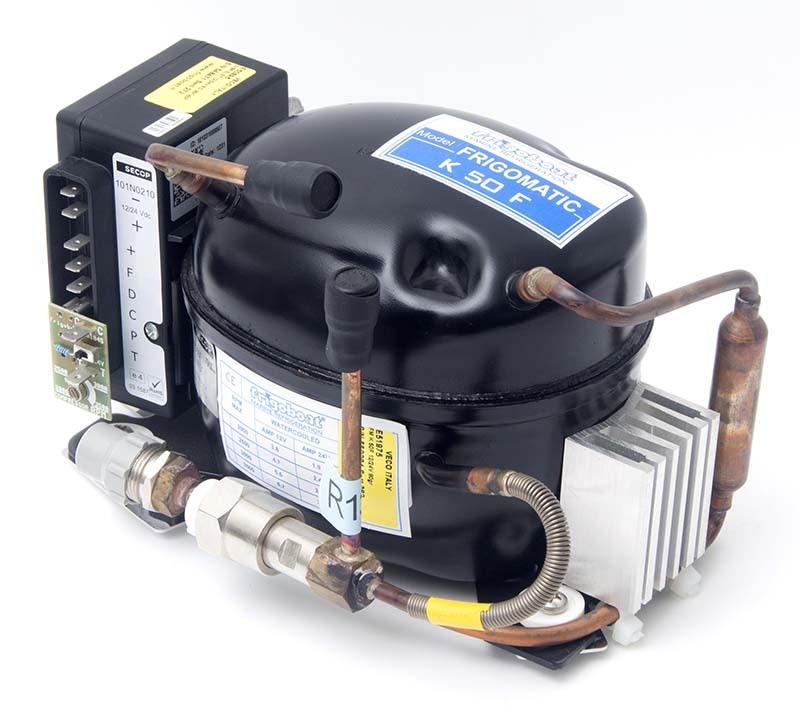

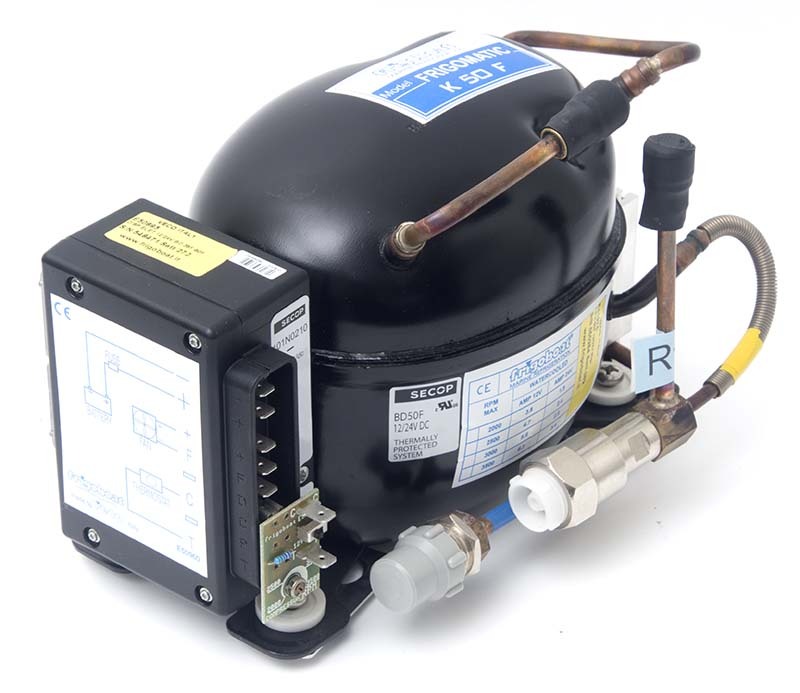

Frigomatic K 50F 12/24V 80Gr Keel Cooled Dissipator

Veco keel cooled refrigeration system uses Danfoss BD50 12 volt / 24 volt DC compressor. Veco keel cooler is more energy efficient than air cooled systems.

Keel cooler eliminates the need of independent sea water pump.

• ​Compressor is the only moving part.
• Danfoss compressor of the latest generation with electrical consumption 25% lower compared to other compressor concepts.
• Precharged system with Frigoboat self sealing couplings.
• Configurations with evaporators for fridges up to 380 litres and freezers up to 100 litres.
• Automatic battery protection.

Technical Specifications

Compressor Speed (RPM)	Refrigerating Capacity (Btu/h)	Current Consumption (A)	Refrigerator max. volume (L)	Freezer max. volume (L)
2000	369	4	180	NA
2500	472	4.7	250	NA
3000	560	5.7	340	80
3500	650	6.8	380	100











Power Cable Sizing

To ensure correct start and operating conditions, the following cable dimensions must be observed:

Cross Section	AWG	Max Length (12V)	Max Length (24V)
2.5 mm2	12	2.5 m	5 m
4 mm2	12	4 m	8 m
6 mm2	10	6 m	12 m
10 mm2	8	10 m	20 m









K 50F Dimensions
