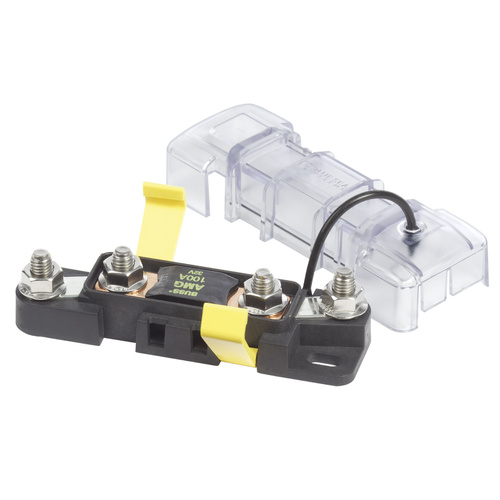

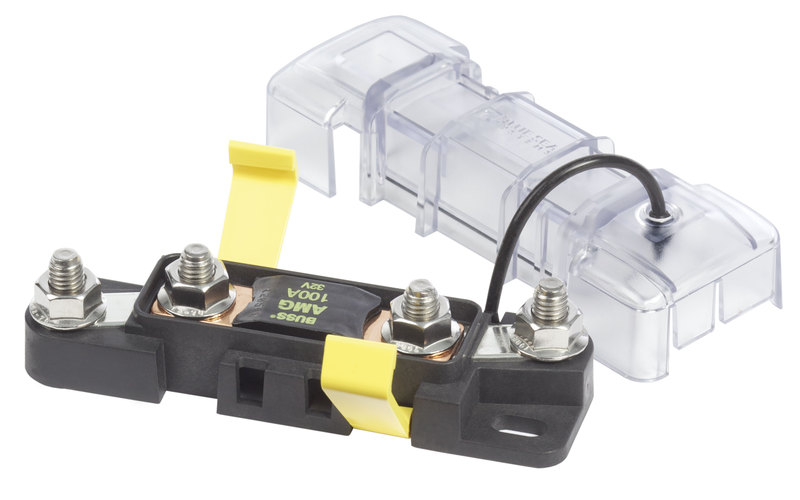

Blue Sea Fuse Block Safety SEA/AMG

Safety Fuse Block accepts 100A to 300A MEGA® or AMG® fuses.

  • Availability:
  • SKU: BSS.7721
  • Manufacturer: Blue Sea
  • MPN:
  • Shipping Weight: 0.07kg
$49.80 inc GST


Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.

Safety Fuse Block accepts 100A to 300A MEGA® or AMG® fuses.

Features

  • Ignition protected for use in fuel vapour engine areas - meets ISO8846 and SAEJ1171
  • Sealed cover protects fuses from harsh marine environments and satisfies AYC/USCG insulation requirements
  • Cover breakouts allow wire access in three directions
  • IP66 rated

Specifications

  • Max operating voltage 32VDC
  • Max current rating 300A
  • Wire size to meet rating 4/0 AWG (120mm2)
  • Mounting holes accept 1/4" (M6) screws
  • Terminal stud size M8 x 1.25
  • Terminal screw size M5 x 0.8 Stainless Steel
  • Dimensions - 125 x 38.4 mm (4.92 x 1.51") length x width
  • 101.6 to 107.4mm (4 to 4.2") between screw mounting hole centres
  • outer cover length 130 mm (5.12")

(BSS.7721)
