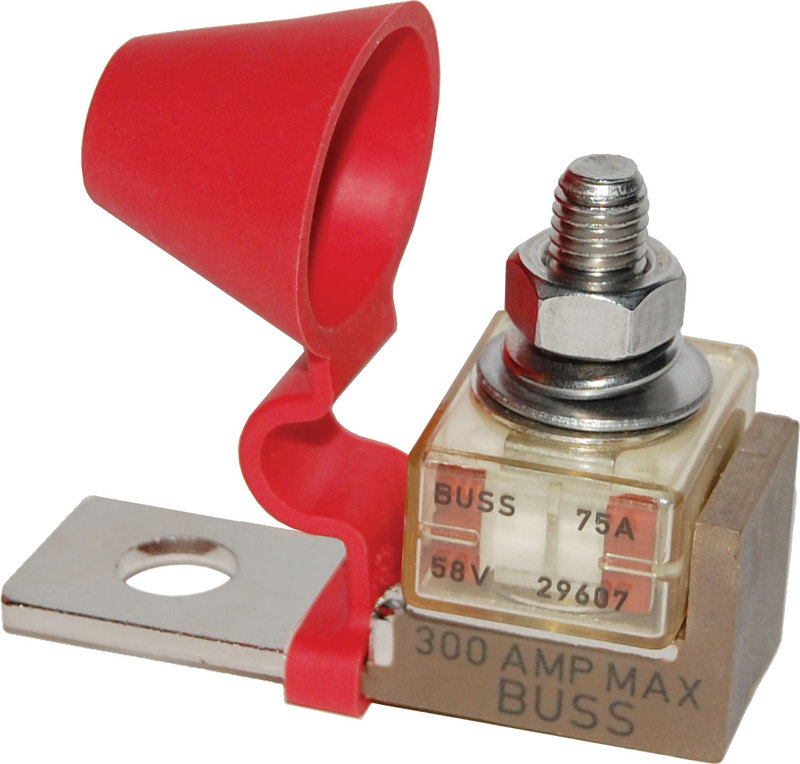

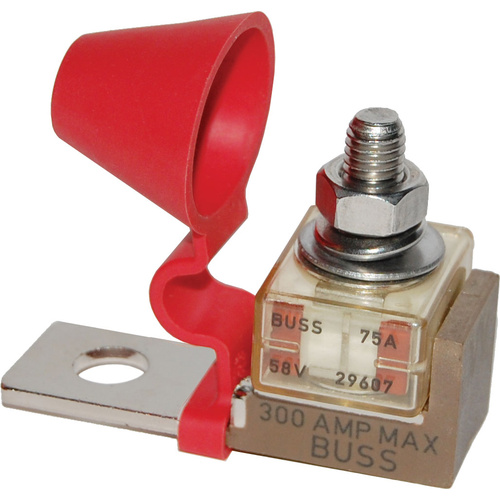

Blue Sea MRBF Terminal Fuse Block 30-300A

Terminal Fuse Block accepts a single 30A to 300A MRBF (Marine Rated Battery Fuse) fuse on a single Terminal Stud. Fuses sold separately.

  • Availability:
  • SKU: BSS.5191
  • Manufacturer: Blue Sea
  • MPN:
  • Shipping Weight: 0.07kg
$38.00 inc GST
$43.50 RRP
SAVE $5.50 (13%)





Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.

Terminal Fuse Block accepts a single 30A to 300A MRBF (Marine Rated Battery Fuse) fuse on a single Terminal Stud. Fuses sold separately.

Features

  • New isolated stud design uses standard M8 (5/16") hardware and permits stacking of terminals
  • Compact high-amp fuse—Appropriate for DC Main inverter windlass and bow thruster circuit protection
  • Provides high current protection in tight space constraints
  • Weatherproof—suitable for small open-cockpit boats and other harsh environments
  • Insulating cap prevents accidental shorts
  • Max voltage rating 58VDC
  • Max current rating 300A
  • Meets SAEJ1171 external ignition protection requirements

Fuse not included.

Mounting Diagram

(BSS.5191)

Enquiry Form

Fuss Free Protection!

By: on 2 May 2018
We purchased this fuse holder with 300A fuse for our battery bank in our motorhome and couldn't be more happy. Would highly recommend - such a fuss free design and installed in seconds!! Great product and great service. Many thanks to the team at Outback Marine.
