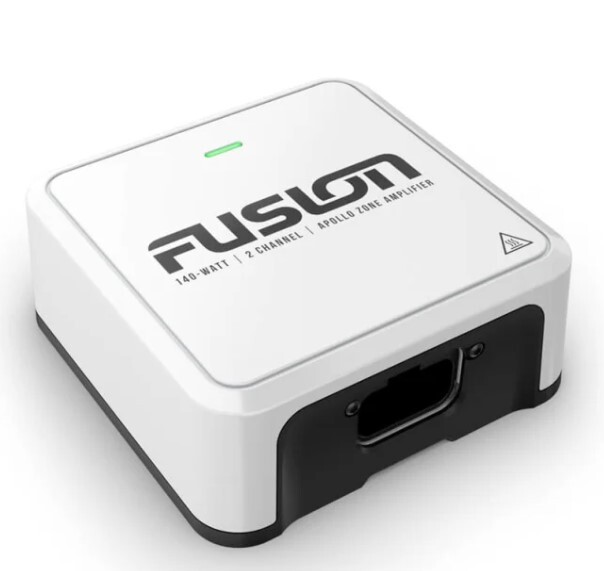

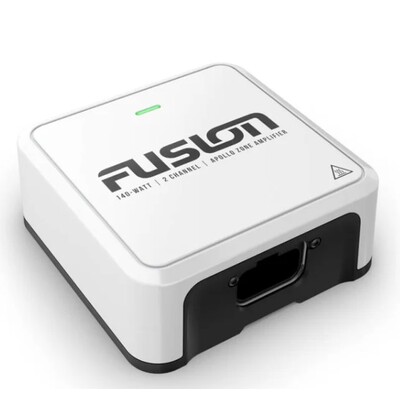

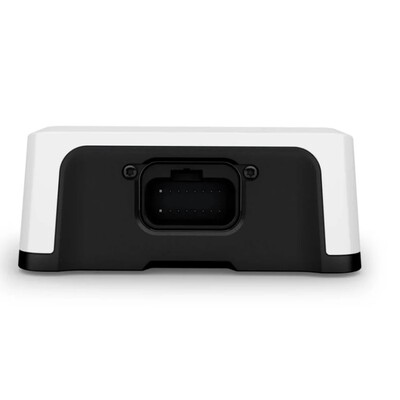

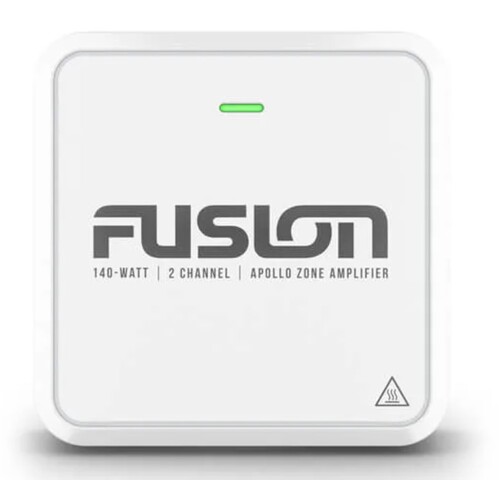

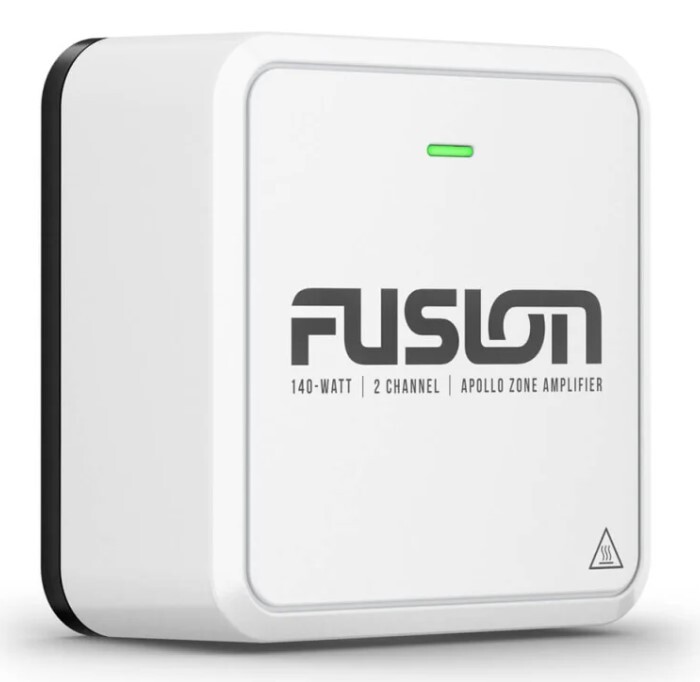

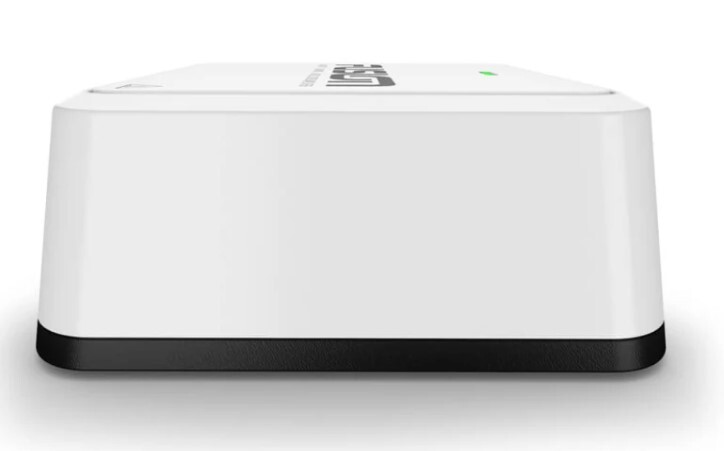

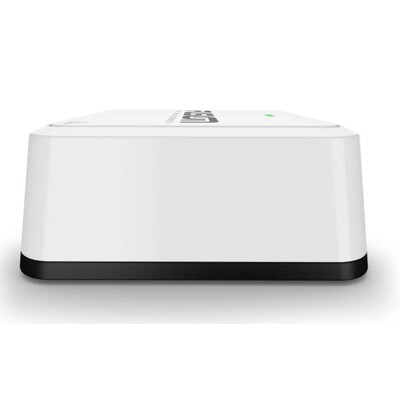

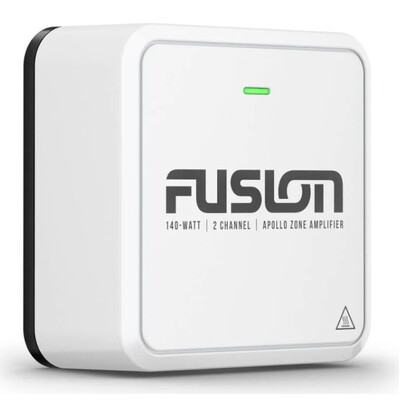

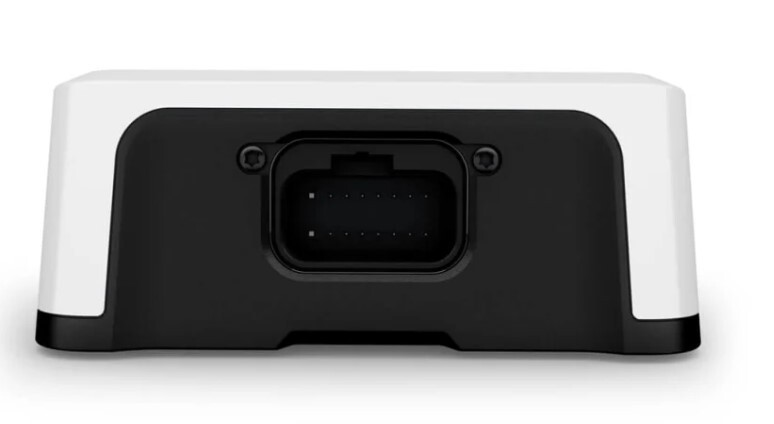

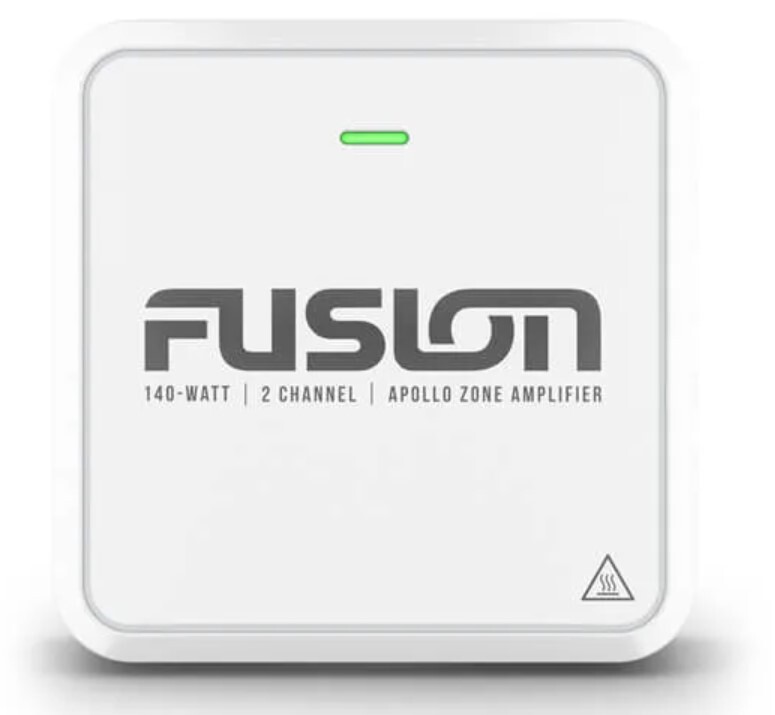

140-WATT ZONE AMPLIFIER
The compact zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. It’s compatible with 12- and 24-volt electrical systems.
Overview
Physical dimensions without bracket (LxWxH) | Monoblock/4 Channel: 9.25″ x 7.06″ x 1.75″ (235 x 180 x 45 mm) 6 Channel: 11.69″ x 7.06″ x 1.75″ (297 x 180 x 45 mm) 8 Channel: 14.13″ x 7.06″ x 1.75″ (359 x 180 x 45 mm) Zone: 3.94″ x 3.94″ x 1.57″ (100 x 100 x 40 mm) |
Physical dimensions with bracket (LxWxH) | Monoblock/4 Channel: 9.25″ x 7.06″ x 2.13″ (235 x 180 x 50 mm) 6 Channel: 11.69″ x 7.06″ x 2.13″ (297 x 180 x 50 mm) 8 Channel: 14.13″ x 7.06″ x 2.13″ (359 x 180 x 50 mm) Zone: 3.94″ x 4.53″ x 1.89″ (100 x 115 x 48 mm) |
Weight | Monoblock/4 Channel: 4.85 lb (2.2 kg) 6 Channel: 5.95 lb (2.7 kg) 8 Channel: 6.94 lb (3.15 kg) Zone: 1.01 lb (460 g) |
Water rating | Monoblock/4/6/8 Channel: IPX2 Zone: IPX7 |
Amplifier class | Class-D |
CEA-2006 power rating | Monoblock: 650 watt RMS x 1 @ 14.4 V input - 4 ohm < 1% THD 4 Channel: 150 watt RMS x 4 @ 14.4 V input - 4 ohm < 1% THD 6 Channel: 150 watt RMS x 6 @ 14.4 V input - 4 ohm < 1% THD 8 Channel: 150 watt RMS x 8 @ 14.4 V input - 4 ohm < 1% THD Zone: 20 watt RMS x 2 @ 14.4 V input - 4 ohm < 1% THD |
Total rated power output - 2 Ohm (Watts) | Monoblock: 1100 watt RMS x 1 @ 14.4 V input - 2 ohm < 1% THD 4 Channel: 290 watt RMS x 4 @ 14.4 V input - 2 ohm < 1% THD 6 Channel: 290 watt RMS x 6 @ 14.4 V input - 2 ohm < 1% THD 8 Channel: 290 watt RMS x 8 @ 14.4 V input - 2 ohm < 1% THD Zone: 30 watt RMS x 2 @ 14.4 V input - 2 ohm < 1% THD |
Total rated power output - 4 Ohm Bridged (Watts) | 4 Channel: 580 watt RMS x 2 @ 14.4 V input - 4 ohm Bridged < 1% THD 6 Channel: 580 watt RMS x 3 @ 14.4 V input - 4 ohm Bridged < 1% THD 8 Channel: 580 watt RMS x 4 @ 14.4 V input - 4 ohm Bridged < 1% THD |
Peak power (watts) | Monoblock: 2000 watts 4 Channel: 1200 watts 6 Channel: 1800 watts 8 Channel: 2400 watts Zone: 140 watts |
Input sensitivity | Monoblock: 2.15 V RMS 4/6/8 Channel: 1.3 V RMS Zone: 0.45 V RMS |
Input impedance | Monoblock/4/6/8 Channel: 22k ohm Zone: 9k Ohm |
Operating voltage | Monoblock/4/6/8 Channel: 10.8 V - 16 V DC Zone Amplifier: 10.8 V - 32 V DC |
Current consumption (StandBy) | Monoblock/4/6/8 Channel: < 5 mA @ 14.4 V input Zone: < 1 mA @ 14.4 V input |
Current consumption (Idle) | Monoblock: < 0.89 A @ 14.4 V input 4 Channel: < 1.15 A @ 14.4 V input 6 Channel: < 1.32 A @ 14.4 V input 8 Channel: < 1.60 A @ 14.4 V input Zone: < 0.04 A @ 14.4 V input |
Current consumption (Max) | Monoblock: 87 A 4 Channel: 53 A 6 Channel: 78 A 8 Channel: 104 A Zone: 10 A |
Fuse rating | Monoblock/6/8 Channel: 125 A electronic fuse (no replacement necessary) 4 Channel: 85 A electronic fuse (no replacement necessary) Zone: 16 A electronic fuse (no replacement necessary) |
Ignition Safety Protected (SAE J1171) | Yes |
Protection circuits | Reverse voltage Input under/over voltage Over temperature Output short circuit |
Operating temperature range | 0° to 50° C |
Warranty | 3 years |
SKU | FUS.010-02569-00 |
Model # | 010-02569-00 |
UPC/EAN | 0753759269753 |
Brand | Fusion |
Shipping Weight | 0.7000kg |
